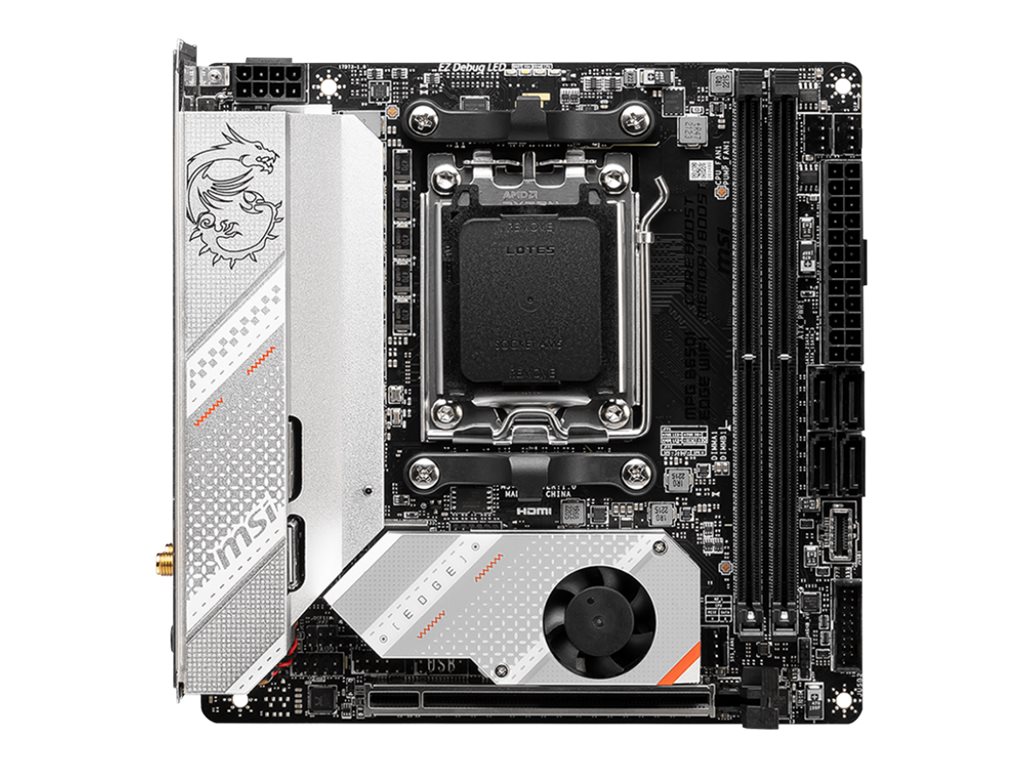

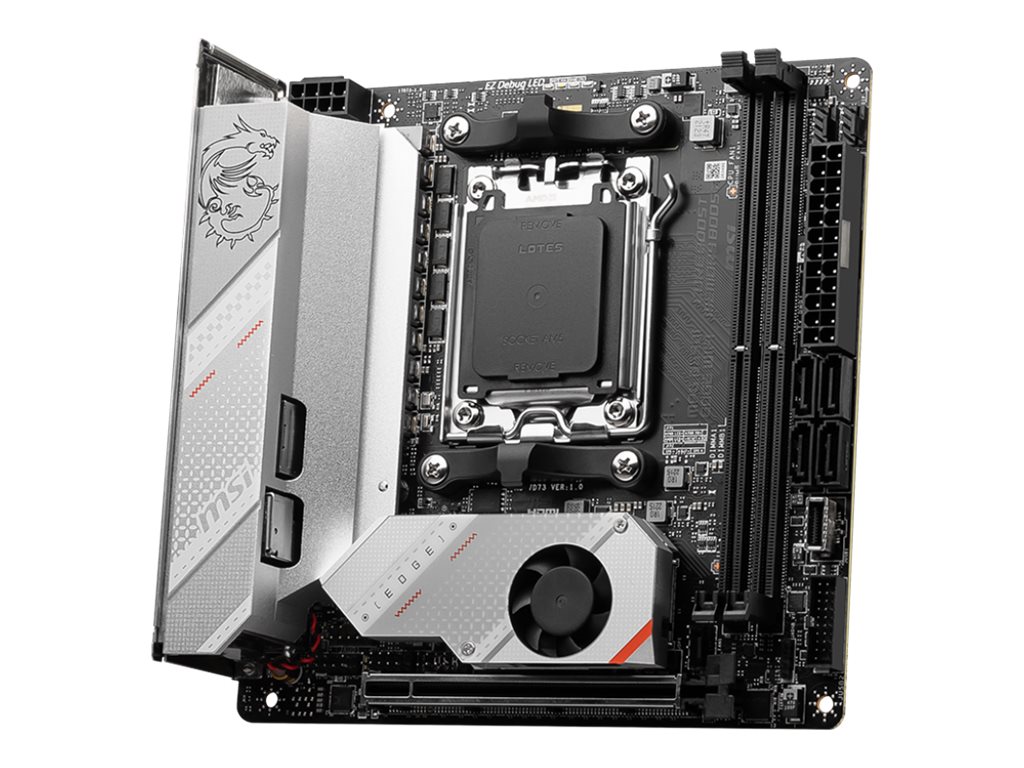

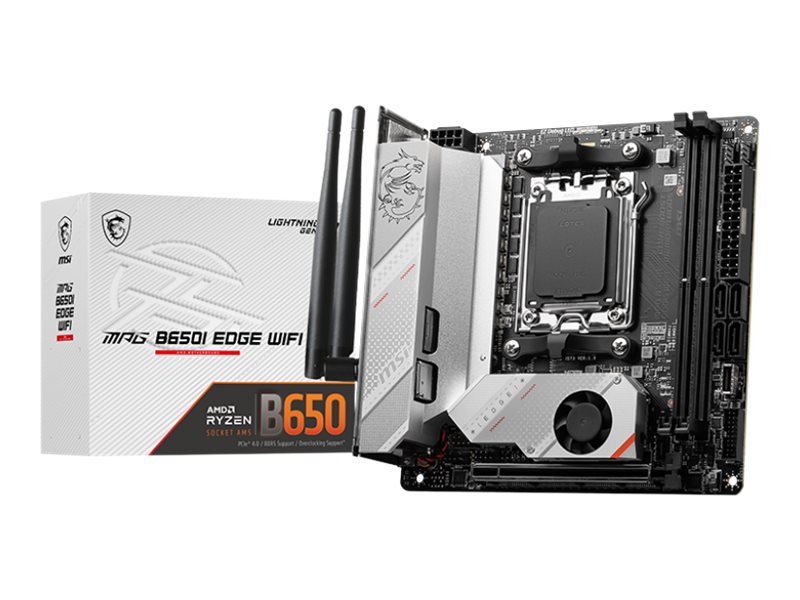

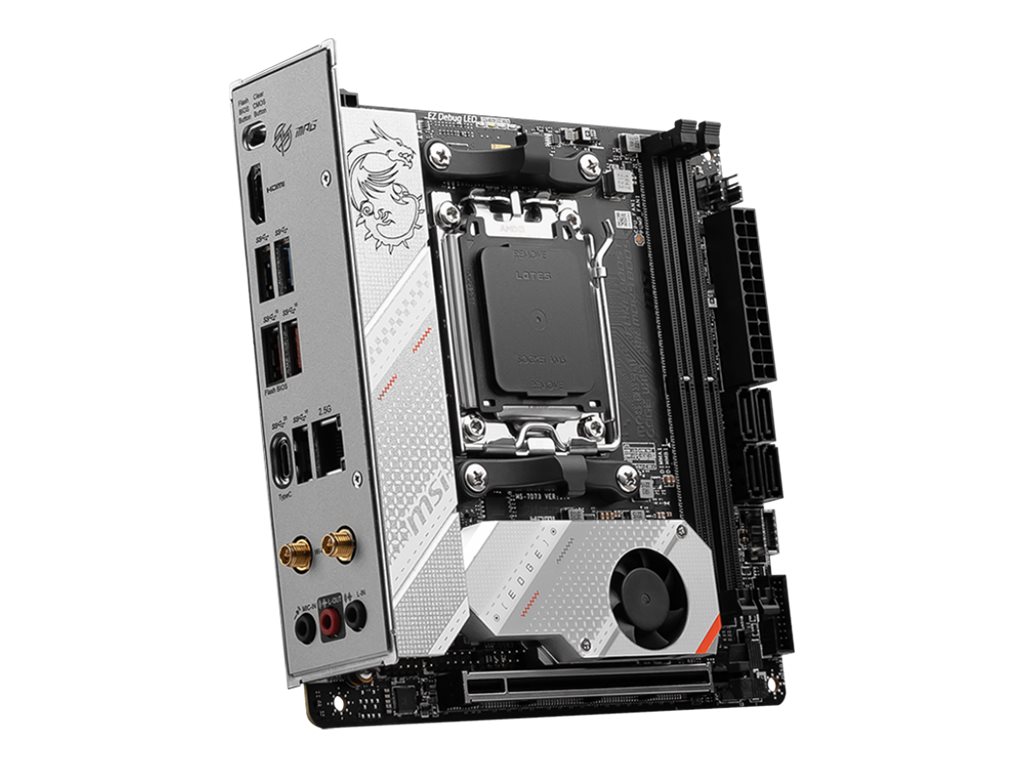

MSI MPG B650I EDGE WIFI Mini ITX AM5 AMD B650
MSI MPG B650I EDGE WIFI - mITX AM5
3 157,00SEK2 525,60SEK excl. VAT
-
Product no 1000805442
Model MPG B650I EDGE WIFI
Brand
Go to brand's websiteEAN 4711377010146
Weight 1.08 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| General | |
|---|---|
| Chipset Type | AMD B650 / Nuvoton NCT6687-R |
| Compatible Processors | Ryzen (supports Ryzen 7000 Series) |
| Max Processors Qty | 1 |
| Processor Socket | Socket AM5 |
| Product Type | Motherboard - mini ITX |
| Supported RAM | |
| Bus Clock | 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.) |
| Features | Dual channel memory architecture, AMD EXPO technology |
| Max Size | 64 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC |
| Technology | DDR5 |
| Audio | |
| Audio Codec | Realtek ALC4080 |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| LAN | |
| Network Controller | Realtek RTL8125BG |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU | 1 x PCIe 4.0 x16 | 2 x DIMM 288-pin |

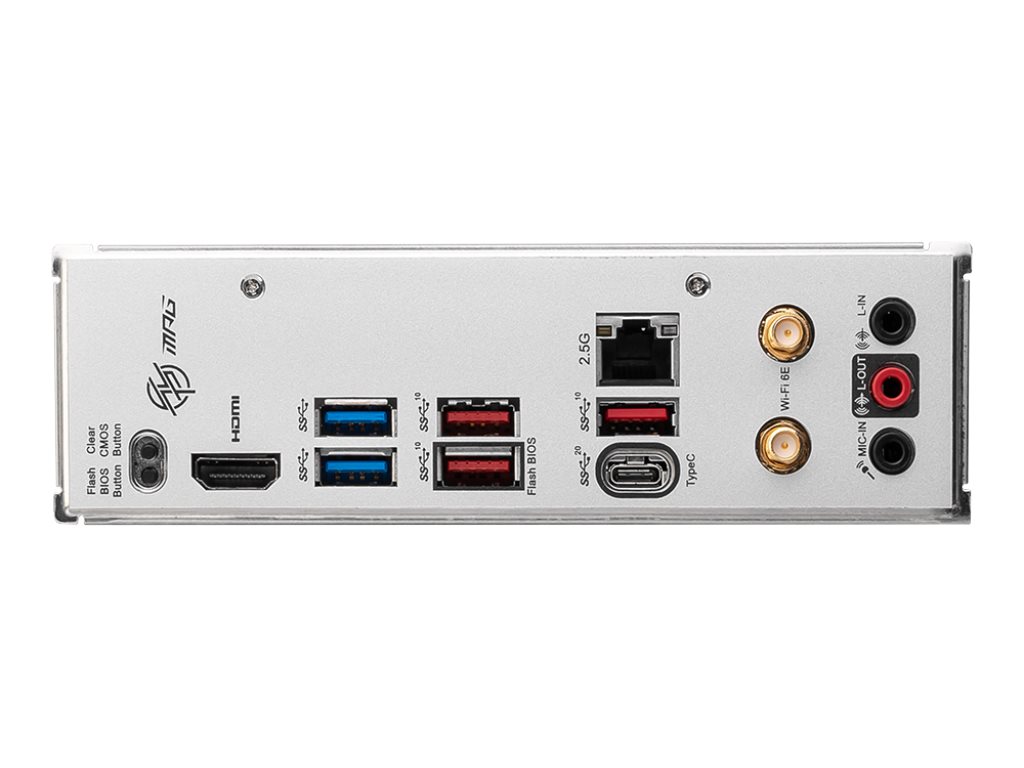

| Interfaces | 1 x HDMI | 1 x audio line-in - mini-jack | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 2 x USB 3.2 Gen 1 | 3 x USB 3.2 Gen 2 | 1 x USB-C 3.2 Gen2x2 | 1 x LAN (2.5Gigabit Ethernet) | 2 x antenna |
| Internal Interfaces | 2 x USB 2.0 - header | 2 x USB 3.2 Gen 1 - header | 1 x USB-C Gen2 - header | 1 x audio - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 | PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 |
| Features | |
| BIOS Features | MSI ClickBIOS 5, ACPI 6.4 support, SMBIOS 3.5 support |
| Hardware Features | Clear CMOS Button, Debug LED, MSI Mystic Light, MSI Steel Armor, Game Boost, overvoltage protection, 10 Layer PCB, 2oz Copper PCB, M.2 Shield FROZR, MSI Core Boost, Extended Heatsink Design, DIY Friendly Design, 8+2+1 Phase Power Design, MSI Audio Bo |
| Miscellaneous | |
| Cables Included | 2 x Serial ATA cable |
| Compliant Standards | SMBIOS 3.5 |
| Depth | 17 cm |
| Included Accessories | 3 x M.2 screws, Rainbow RGB LED extension cable, Wi-Fi antenna, cable stickers |
| Software Included | Drivers & utilities, AIDA64 Extreme (60 days trial) |
| Width | 17 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
