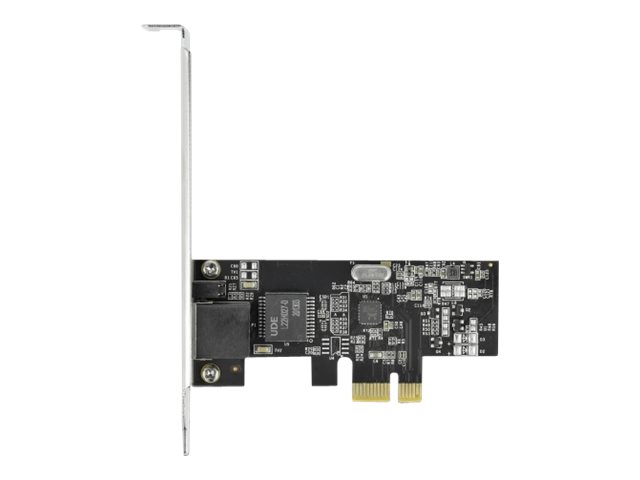

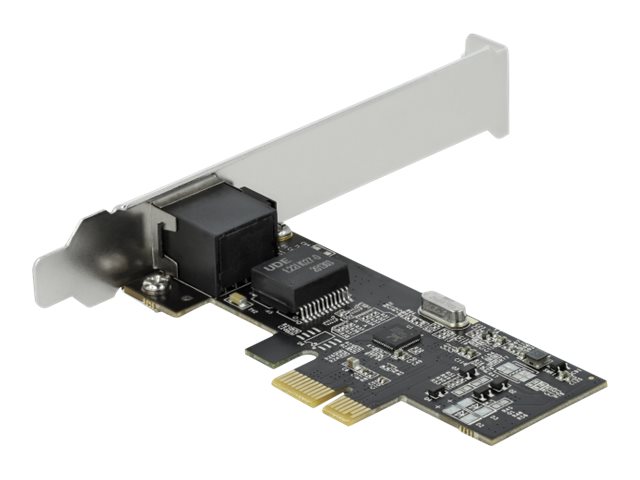

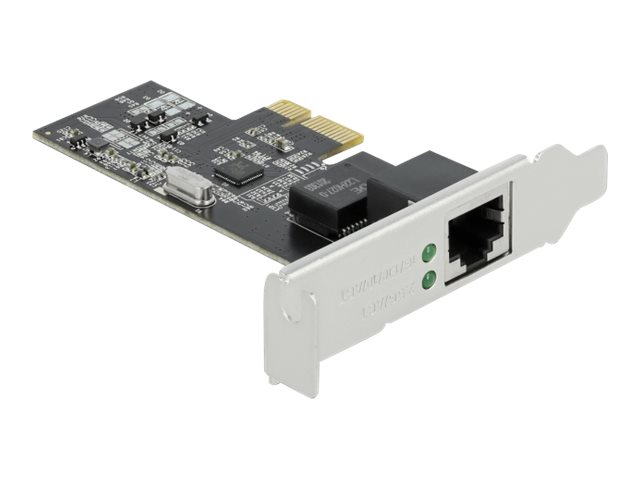

DeLock PCI Express x1 Card to 1 x 2.5 LAN Netværksadapter PCI Express 2.1 x1 2.5Gbps
Delock PCI Express x1 Card to 1 x 2.5 Gigabit LAN - Netværksadapter - PCIe 2.1 - 2.5GBase-T x 1
337,00 SEK
269,60 SEK excl. VAT
-
Product no 996589616
Model 89564
Brand DeLOCK
EAN 4043619895649
Weight 0.12 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Delock PCI Express x1 Card to 1 x 2.5 Gigabit LAN - netværksadapter - PCIe 2.1 - 2.5GBase-T x 1 |
| Enhedstype | Netværksadapter |
| Model | Indstikskort |
| Grænseflade (bus) type | PCI Express 2.1 x1 |
| PCI-specifikationsrevision | PCIe 2.1 |
| Porte | 2.5GBase-T x 1 |
| Kabeltype | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 2.5GBase-T |
| Dataforbindelsesprotokol | 10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE |
| Dataoverførselshastighed | 2.5 Gbps |
| Processor | 1 x Realtek Semiconductor RTL8125B |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x |
| Systemkrav | Windows 8.1/10 (32/64 bit) |
| General | |
|---|---|
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 2.1 x1 |
| PCI Specification Revision | PCIe 2.1 |
| Networking | |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 2.5GBase-T |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Data Transfer Rate | 2.5 Gbps |
| Features | Flow control, VLAN support, wake on LAN (WOL), half duplex mode, full duplex mode, 9 KB Jumbo Frame |
| Ports | 2.5GBase-T x 1 |
| Status Indicators | Link/activity |
| Processor / Memory | |
| Processor | 1 x Realtek Semiconductor RTL8125B |
| Expansion / Connectivity | |
| Interfaces | 1 x 2.5NBase-T - RJ-45 - female |
| Miscellaneous | |

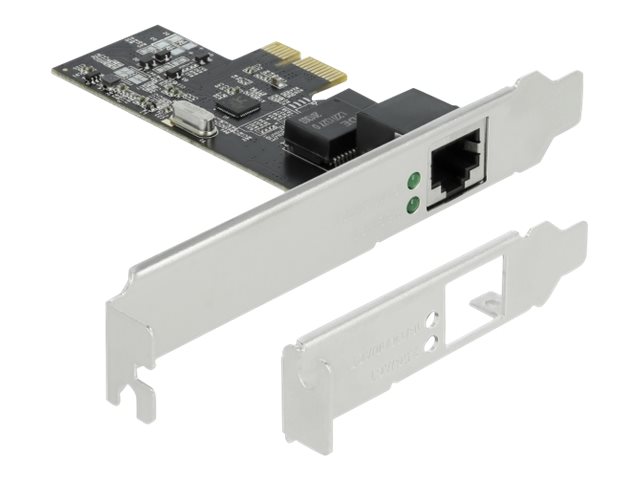

| Included Accessories | Low-profile bracket |
| Package Type | Retail |
| Software / System Requirements | |
| OS Required | Windows 8.1 / 10 (32/64 bits) |
| Software Included | Drivers & Utilities |
