HPE Aruba Instant On 1430 8G Class4 64W Switch 8-porte Gigabit PoE
HPE Networking Instant On 1430 8G Class4 PoE 64W Switch - Switch - ikke administreret - 8 x 10/100/1000 (PoE Class 4) - desktop, monterbar på stativ, væg-monterbar - PoE (64 W) - BTO
1 503,00 SEK
1 202,40 SEK excl. VAT
-
Product no 1000695552
Model R8R46A
Brand Hewlett Packard Ente
EAN 0190017601762
Weight 2.17 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | HPE Networking Instant On 1430 8G Class4 PoE 64W Switch - switch - 8 porte - ikke administreret - monterbar på stativ |
| Enhedstype | Switch - 8 porte - ikke administreret |
| Pakningstype | Monterbar på stativ |
| Undertype | Gigabit Ethernet |
| Porte | 8 x 10/100/1000 (PoE Class 4) |
| Power Over Ethernet (PoE) | PoE |
| PoE-budget | 64 W |
| Præstation | Kapacitet: 11.9 Mpps<br>Omkoblingskapacitet: 16 Gbps<br>Latens (100 Mbps): 2.7 µs<br>Latens (1 Gbps): 1.8 µs |
| Kapacitet | MAC-adresseindtastninger: 8192 |
| MAC adresse table størrelse | 8192 indtastninger |
| Jumborammesupport | 9216 byte |
| Egenskaber | Blæserløs, til vægmontering, 2 MB pakke-buffer, EEE, DSCP support, VoIP support, auto-sensing per device |
| Overensstemmelsesstandarder | IEEE 802.1p, IEEE 802.3az |
| Effekt | AC 100-240 V (50/60 Hz) 2 A |
| Dimensioner (B x D x H) | 17.7 cm x 15 cm x 3.7 cm |
| Vægt | 770 g |
| Pristype | BTO |
| Producentgaranti | Begrænset livtidsgaranti |
| General | |
|---|---|
| Capacity | MAC address entries: 8192 |
| Compliant Standards | IEEE 802.1p, IEEE 802.3az |
| Device Type | Switch - 8 ports - unmanaged |
| Enclosure Type | Desktop, rack-mountable, wall-mountable |
| Features | Auto-sensing per device, wall mountable, fanless, 2MB packet buffer, VoIP support, DiffServ Code Point (DSCP) support, Energy-Efficient Ethernet (EEE) |
| Jumbo Frame Support | 9216 bytes |
| MAC Address Table Size | 8192 entries |
| Performance | Throughput: 11.9 Mpps | Switching capacity: 16 Gbps | Latency (100 Mbps): 2.7 µs | Latency (1 Gbps): 1.8 µs |
| PoE Budget | 64 W |
| Ports | 8 x 10/100/1000 (PoE Class 4) |
| Power Over Ethernet (PoE) | PoE |
| RAM | 128 KB EEPROM |
| Status Indicators | Port status, link/activity, PoE max |
| Subtype | Gigabit Ethernet |
| Expansion / Connectivity | |
| Interfaces | 8 x 10/100/1000 Base-T (PoE) RJ-45 |
| Power | |
| Electric Current Required | 2 A |
| Power Consumption Stand by | 4.1 Watt |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Miscellaneous | |
| Compliant Standards | EN 61000-3-2, IEC 61000-3-2, ICES-003 Class B, VCCI Class B, FCC CFR47 Part 15 B Class B, AS/NZS CISPR 32 Class B, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-4-11, IEC/EN 61000-4-2, CNS 1343 |
| Included Accessories | Rack kit (2 post) |
| MTBF | 131.1 years |
| Pricing Type | BTO |
| Dimensions & Weight | |
| Depth | 15 cm |
| Height | 3.7 cm |
| Weight | 770 g |
| Width | 17.7 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime | Technical support - live chat - lifetime | Technical support - phone consulting - 90 days from date of purchase |
| Environmental Parameters | |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Humidity Range Storage | 15 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
HPE Networking Instant On Switch 8p Gigabit CL4 PoE 64W 1430
The HPE Networking Instant On Switch 1430 is a plug-and-play unmanaged switch series for small businesses looking for simple, reliable, and low-cost network connectivity. These easy-to-use switches deliver Layer 2 Gigabit Ethernet switching capabilities—at an affordable price point—to help connect and share common resources like printers and access points, without any complicated network configuration. With plug-and-play operation, fully automated functions, zero ongoing maintenance, and Power over Ethernet (PoE) models, these switches deliver simple, reliable connectivity for the smallest SMBs and home offices.
Unmanaged Layer 2 Gigabit Ethernet switch series ready to deploy in 5-, 8-, 16-, 24-and 26-port non-PoE and PoE models.
No configuration or management needed.
Plug-and-play with fully automated functions and zero ongoing maintenance.
Up to 124W of PoE to power APs, IP Phones, and other IoT devices.
Fan-less design for silent deployment in office spaces.
Unmanaged Ethernet Connectivity for Small Businesses

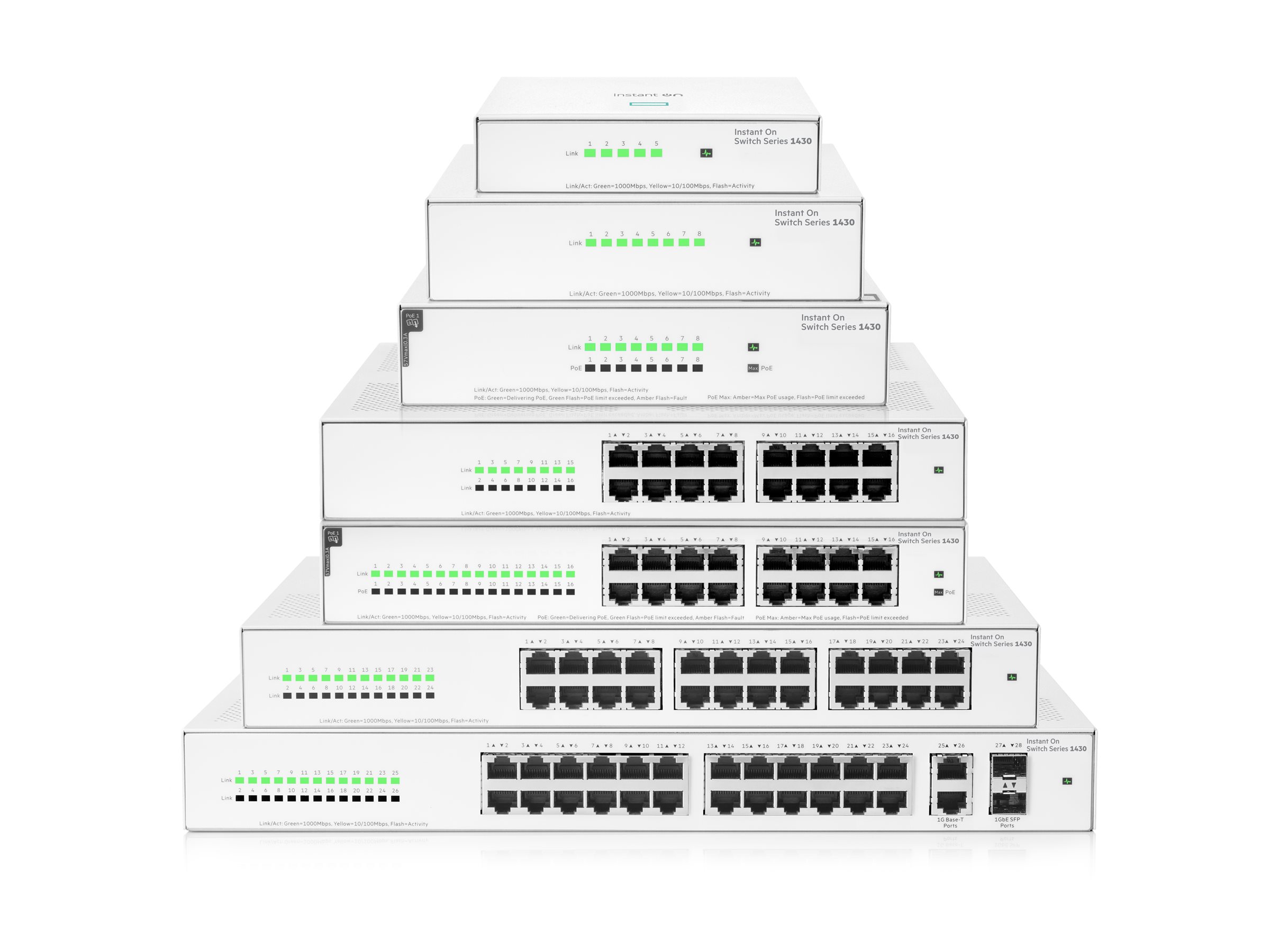

- The HPE Networking Instant On Switch 1430 is an unmanaged Layer 2 Gigabit Ethernet switch series ready to deploy in seven models in PoE and non-PoE configurations: one 5-port, two 8-port, two 16-port, one 24-port, and one 26-port model with 2 SFP uplinks models.
- With PoE models, you get up to 30W PoE per port power delivery for Class 4 PoE devices like access points, surveillance cameras and VoIP phones. The 8-port and 16-port PoE models come with the power budget of 64W and 124W respectively to support the latest IoT devices.
- Two dedicated 1 G SFP fiber ports on the 26-port model can be used for uplinks and to support long distance connectivity using fiber transceivers, for a total of 28 Ethernet ports.
Plug-and-Play Operation
- The HPE Networking Instant On Switch 1430 models are easy to use with zero configuration and no required ongoing administration.
- The unmanaged PoE models delivers fully automated support for powering compatible IP phones, video surveillance cameras, or wireless access points.
- No configuration beyond installation of optional 1 GbE SFP transceivers on 26-port model to extend connectivity with gigabit fiber.
- Install flexibility with support for table-top, under-table, wall-mount, and rack-mount options (varies per model).
- Simplified cabling automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports using Auto MDI/MDI-X.
Energy Efficiency and Traffic Optimization
- The HPE Networking Instant On Switch 1430 series supports Energy Efficient Ethernet (EEE) and is compliant with 802.3az standard requirements to save energy during periods of low data activity.
- All models are fan-less for silent operation in office settings or acoustically sensitive environments and require less power to operate.
- Quality of Service provides priority of time-sensitive packets (like VoIP and video) over other traffic based on DSCP or IEEE 802.1p classification.
- Jumbo frame support provides up to 9216 bytes frame size to improve the performance of large data transfers.
- Flow control provides a flow-throttling mechanism propagated through the network to prevent packet loss at a congested node.
Specifications
| TechnicalSpecifications | |
|---|---|
| Ports | 8 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10 BASE-T, IEEE 802.3u Type 100 BASETX, IEEE 802.3ab Type 1000 BASE-T) Duplex: 10 BASE-T/100 BASE-TX: half or full 1000 BASE-T: full only |
| Memory and processor | 128Kb EEPROM Packet buffer size: 2.0 Mb |
| Throughput | 11.90 Mpps |
| Switching capacity | 16 Gbps |
| PoE capability | 64W Class 4 PoE |
| Management features | Unmanaged |
| Power supply | External Power Adapter |
| Input voltage | 100-240VAC |
| Power consumption | Maximum: 90W Idle: 4.1W |
| Product dimensions (metric) | 15.0 x 17.7 x 3.7 cm |
| Weight | 0.77 kg |
