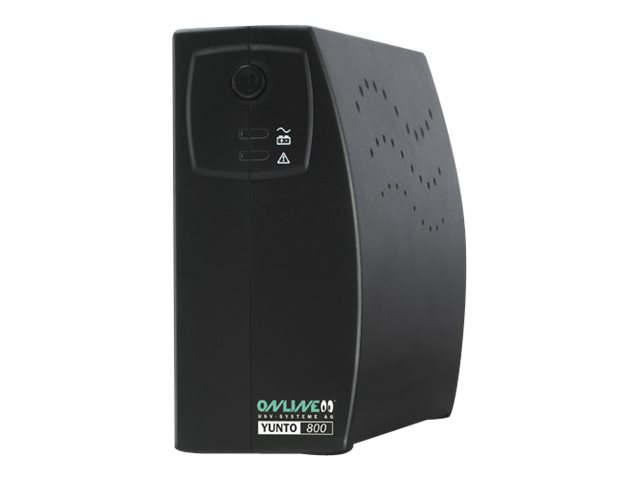

ONLINE Yunto 800 UPS 480Watt 800VA
ONLINE Yunto 800 - UPS - AC 230 V - 480 Watt - 800 VA - 9 At - USB - output-stikforbindelser: 3
1 244,00SEK995,20SEK excl. VAT
-
Product no 992784170
Model Y800
Brand ONLINE USV-Systeme
EAN 4026908003567
Weight 3.8 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | ONLINE Yunto 800 - UPS - 480 Watt - 800 VA |
| Enhedstype | UPS - ekstern |
| Vægt | 3.5 kg |
| Indgangspænding | AC 230 V |
| Udgangspænding | AC 230 V ± 10% |
| Strømkapacitet | 480 Watt / 800 VA |
| Input-stik | Strøm IEC 60320 C14 |
| Output-stikforbindelser | 3 x power IEC 60320 C13 |
| Batteri | - 9 At |
| Antal batterier | 1 |
| Driftstid (op til) | 6 min ved halv belastning |
| Netværk | USB |
| Dimensioner (B x D x H) | 8.01 cm x 23.2 cm x 17.75 cm |
| Producentgaranti | 2 års garanti |
| General | |
|---|---|
| Device Type | UPS - external |
| Power Device | |
| Dataline Surge Protection | Network/phone line - RJ-45 - 1 input line / 1 output line |
| Efficiency | 95% AC mode, 70% Battery mode |
| Frequency Provided | 50/60 Hz ± 1Hz |
| Frequency Required | 50/60 Hz ± 5Hz |
| Input Connectors | Power IEC 60320 C14 |
| Input Voltage | AC 230 V |
| Input Voltage Range | AC 180 - 270 V |
| Output Voltage | AC 230 V ± 10% - 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 480 Watt / 800 VA |
| Power Output Connectors Details | 3 x power IEC 60320 C13 |
| Surge Suppression | Yes |
| UPS Technology | Line interactive |
| Battery | |
| Capacity | 9 Ah |
| Features | Maintenance free, sealed |
| Quantity | 1 |
| Recharge Time | 8 hours |
| Run Time (Up To) | 6 min at half load | 2.5 min at full load |
| Voltage Provided | 12 V |
| Networking | |
| Remote Management Interface | USB |
| Expansion / Connectivity | |
| Interfaces | 1 x USB |
| Miscellaneous | |
| Cables Included | USB cable - external | 2 x power extension cable - external |
| Compliant Standards | IP20, EN 62040-2:2006, EN 62040-1:2008+A1:2013 |
| Features | Cold-start function |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years | Limited warranty - batteries - 2 years |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 90% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Dimensions & Weight | |
| Depth | 23.2 cm |
| Height | 17.75 cm |
| Weight | 3.5 kg |
| Width | 8.01 cm |
