Specifications

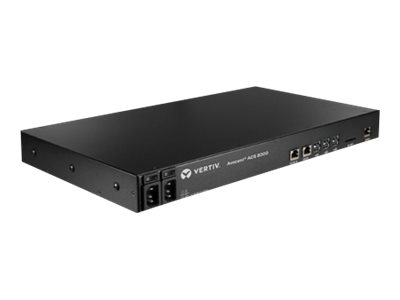

Avocent ACS 8000 Serial Console ACS8008SAC - Konsol server - 8 porte - 1GbE, RS-232, RS-422, RS-485 - 1U - rackmonterbar

27 402,00 SEK 21 921,60 SEK excl. VAT

Product no 994206621

Model ACS8008SAC-404

Brand Emerson Electric

EAN 0636430086057

Weight 4.91 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.

Produktbeskrivelse	Avocent ACS 8000 Serial Console ACS8008SAC - konsol server
Enhedstype	Konsol server
Formfaktor	Rackmonterbar - 1U
Lokalisering	USA
Processor	1 x ARM A9 - 766 MHz
RAM	1 GB
Flashhukommelse	16 GB
Antal porte	8
Dataforbindelsesprotokol	Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232, RS-422, RS-485
Effekt	AC 120/230 V (50/60 Hz)
Overskudsspænding	Valgfri
Dimensioner (B x D x H)	43.82 cm x 24.13 cm x 4.45 cm
Vægt	3.4 kg

General
Built-in Devices	Temperature sensor
Depth	24.13 cm
Device Type	Console server
Height	4.45 cm
Height (Rack Units)	1U
Localization	United States
Weight	3.4 kg
Width	43.82 cm
Processor / Memory / Storage
Flash Memory	16 GB
Processors Installed	1 x ARM A9 766 MHz
RAM	1 GB DDR3L SDRAM
Networking
Authentication Method	Kerberos, SecurID, Secure Shell (SSH), RADIUS, PAP, CHAP, X.509 certificates, TACACS+, Secure Shell v.2 (SSH2), LDAP, Active Directory, Extensible Authentication Protocol (EAP)
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232, RS-422, RS-485
Encryption Algorithm	RSA
Features	Auto-sensing per device, Syslog support, packet filtering, IPv6 support, IP address filtering, IPSec NAT-Traversal (NAT-T), IPv4 support, SNMP trap, failover protection, Zero-touch provisioning (ZTP), One-Time Password (OTP), IP forwarding support, b
Form Factor	Rack-mountable
Ports Qty	8
Remote Management Protocol	SNMP, Telnet, HTTP, HTTPS, TFTP, SSH, CLI
Status Indicators	Status
Communications
Supported Flash Memory Cards	SD Memory Card
Expansion / Connectivity
Interfaces	2 x 1000Base-X - SFP (mini-GBIC) \| 2 x 1000Base-T - RJ-45 \| 1 x management (RS-232) - RJ-45 \| 2 x RS-232/422/485 - RJ-45 \| 6 x RS-232 - RJ-45 \| 8 x USB 2.0 - Type A \| 1 x sensor - RJ-45 \| 1 x digital input - RJ-45
Miscellaneous
Compliant Standards	FCC Class A certified, UL, VCCI, cUL, EN 60950, ICES-003, CB, KCC, RCM, CU
Power
Installed Qty	1
Max Supported Qty	2
Power Consumption Operational	6.2 Watt
Power Device	Internal power supply
Power Redundancy	Optional
Voltage Required	AC 120/230 V (50/60 Hz)
Software / System Requirements
OS Provided	Linux
Environmental Parameters
Humidity Range Operating	20 - 80% (non-condensing)
Max Operating Temperature	60 °C
Min Operating Temperature	-10 °C

Out-of-Band Visibility, Access & Control

The Vertiv Avocent ACS8000 advanced serial console server series delivers secure in-band and out-of-band visibility and control to downstream equipment in enterprise data centers, as well as cloud and colocation facilities. This serial console system serves as a secure management gateway and single point of entry keeping you connected to critical IT equipment even in the event of partial or total data center outages. With serial access, environmental monitoring, and comprehensive activity logs for all connected devices, the Vertiv Avocent ACS8000 series provides secure equipment access and control across your data center.

In-band and out-of-band connectivity and control for connected devices.
Single IP address management, acting as an IoT gateway for connected sensors and digital inputs and outputs.
Single-point-of-entry security for all downstream equipment.
Auto-discovery and native command settings for monitoring and management of Vertiv and third-party equipment.
USB and environmental sensor ports for external devices and environmental monitoring.

SECURE OUT-OF-BAND ACCESS

The Vertiv Avocent ACS8000 Serial Console Server delivers out-of-band equipment access in compliance with data center access and security policies and best practices, such as IPsec VPN, customizable ACLs, and FIPS 140-2. It acts as a single point of access for all connected devices, limiting entry points, enabling advanced user management, and providing event logging and notifications to record user activity.

EASY INSTALLATION & COMMISSIONING

The Vertiv Avocent ACS8000 offers fast, automated configuration with automated discovery tools and zero-touch provisioning (ZTP). Auto-discovery eases identification of Vertiv and third-party devices. ZTP automates installation steps at startup. Native command settings make monitoring and management of connected devices simple, and auto-pinout simplifies serial port installation.

USB/ENVIRONMENTAL SENSOR PORTS

The Vertiv Avocent ACS8000 includes eight USB ports to support additional IT equipment and external devices. The console also features digital inputs and an environmental sensor port to connect temperature, humidity, differential pressure, and leak and door sensors. These sensors monitor and help control conditions across the data center that can impact the performance of IT equipment.

ENTERPRISE & CLOUD DATA CENTERS

Today’s data center facilities are evolving and becoming more complex, requiring advanced, real-time asset visibility and management. The Vertiv Avocent ACS8000 Serial Console Server ensures comprehensive network access and real-time event logs and notifications that bring clarity, control and security to these business-critical facilities.

COLOCATION

As the colocation market continues to grow, so do concerns about the security and control of client IT assets. The Vertiv Avocent ACS8000 Serial Console Server complies with data center access and security policies and acts as a single point of access for connected devices, limiting entry points and streamlining deployments with zero-touch provisioning.

AUTOMATED EQUIPMENT TESTING

Network equipment is more intelligent than ever, requiring extensive testing under assorted real-world conditions to ensure effective operation. The Avocent ACS8000 Serial Console Server simplifies that sort of testing, allowing networking equipment manufacturers to access and control multiple devices during important qualification tests.
