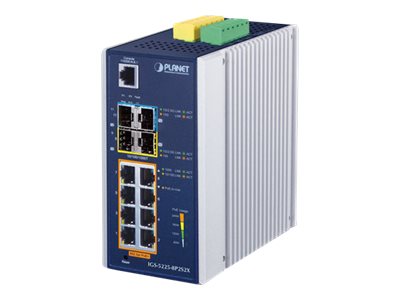

PLANET IGS-5225-8P2S2X Switch 12-porte Gigabit Ethernet PoE+
PLANET IGS-5225-8P2S2X - Switch - L3 - Administreret - 8 x 10/100/1000 (PoE+) + 2 x SFP + 2 x 10 Gigabit SFP+ - DIN monterbar på skinne, væg-monterbar - PoE+ (240 W) - DC strøm
7 553,00 SEK
6 042,40 SEK excl. VAT
-
Product no 992933592
Model IGS-5225-8P2S2X
Brand PLANET Technology
EAN 4711605282352
Weight 1.68 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | PLANET IGS-5225-8P2S2X - switch - 12 porte - Administreret |
| Enhedstype | Switch - 12 porte - L3 - Administreret |
| Undertype | Gigabit Ethernet |
| Porte | 8 x 10/100/1000 (PoE+) + 2 x SFP + 2 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| PoE-budget | 240 W |
| Præstation | Skift af stofbåndbredde: 66 Gbps<br>Gennemløb (64-byte pakkestørrelse): 49,107 Mpps |
| Kapacitet | VLAN-grupper: 4000<br>VLAN ID'er: 4094<br>Multicast-grupper: 255<br>ACL-bidrag: 512<br>Virtuelle grænseflader (VLANs): 128<br>Routing-indgange: 128 |
| MAC adresse table størrelse | 32K indtastningshukommelse |
| Jumborammesupport | 10KB |
| Routingprotokol | IGMPv2, IGMP, OSPFv2, IGMPv3, statisk IPv4 routing, statisk IPv6 routing, MLDv2, MLD |
| Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, CLI |
| Egenskaber | Datatransport, auto-negotiation, understøttet af BOOTP, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog understøttet, portspejling, gem og send, Broadcast Storm Control, halv dupleksmodus, fuld dupleksmodus, Multicast Storm Control, Unicast Storm Control, firmware kan opgraderes, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, MDL snooping, DAI, nulstillingsknap, båndbreddekontrol, LLDP support, DHCP videresendelse, portkonfiguration, SNMP fælde, MVR, CoS, mærket VLAN, 6KV ESD Protector, GVRP, PSE, PTP, ERPS, Protokol-baseret VLANs support, systemlog, IP-kildebekyttelse, Back Pressure Support, Link Aggregation, IGMP-forespørger, Voice VLAN, PVE, DSCP Marking, WRR, MAC based VLAN, DSCP/TOS-felt i IP-pakke, BPDU Guard, Q-i-Q tunnelering, portdeaktivering, aluminiumskabinet, MKD-forespørger, NTP support, SMTP-varsler, UDLD |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, ITU-T G.8032, IEEE 802.3ag |

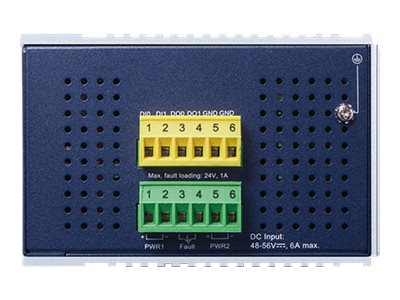

| Effekt | DC 48 - 56 V |
| Dimensioner (B x D x H) | 7.2 cm x 10.7 cm x 15.2 cm |
| Vægt | 1.684 kg |
