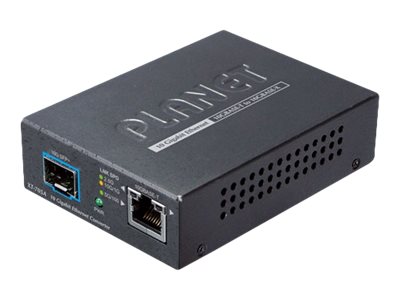

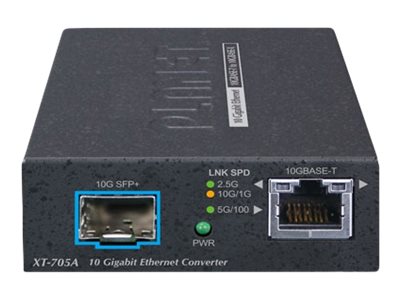

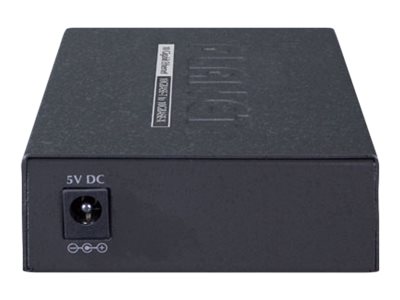

PLANET XT-705A Fibermedieomformer Fast Ethernet Gigabit Ethernet 10 Gigabit Ethernet 5 Gigabit Ethernet 2.5 Gigabit Ethernet
PLANET XT-705A - Fibermedieomformer - 10GbE, 5GbE, 2.5GbE - 100Base-TX, 1000Base-T, 10GBase-X, 10GBase-T, 2.5GBase-T, 5GBase-T - SFP+ / RJ-45
2 038,00 SEK
1 630,40 SEK excl. VAT
-
Product no 993676982
Model XT-705A
Brand PLANET Technology
EAN 4711605283656
Weight 0.48 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | PLANET XT-705A - fibermedieomformer - 100Mb LAN, 1GbE, 10GbE, 5GbE, 2.5GbE |
| Enhedstype | Fibermedieomformer - SFP+ / RJ-45 |
| Model | Ekstern |
| Kabeltype | 100Base-TX, 1000Base-T, 10GBase-X, 10GBase-T, 2.5GBase-T, 5GBase-T |
| Dataforbindelsesprotokol | 100Mb LAN, 1GbE, 10GbE, 5GbE, 2.5GbE |
| Dimensioner (B x D x H) | 9.4 cm x 7 cm x 2.6 cm |
| Vægt | 180 g |
| General | |
|---|---|
| Device Type | Fiber media converter |
| Form Factor | External |
| Networking | |
| Cabling Type | 100Base-TX, 1000Base-T, 10GBase-X, 10GBase-T, 2.5GBase-T, 5GBase-T |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3bz |
| Connectivity Technology | Wired |
| Data Link Protocol | 100Mb LAN, GigE, 10 GigE, 5 GigE, 2.5 GigE |
| Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode, built-in DIP switch, 8KV ESD Protector, 6KV ESD Protector, metal housing, Back Pressure Support, 4KV Surge protection, 16 KB Jumbo Frame |
| Status Indicators | Power, link/activity/speed |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10GBase-X - SFP+ | 1 x 10Gb Ethernet / 5Gb Ethernet / 2.5Gb Ethernet / 1Gb Ethernet / Ethernet 100Base-T - RJ-45 |
| Miscellaneous | |
| Compliant Standards | Plug and Play, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, FCC Part 15 A |
| Power | |
| Power Consumption Operational | 3.75 Watt |
| Power Device | External power adapter |
| Dimensions & Weight | |
| Depth | 7 cm |
| Height | 2.6 cm |
| Weight | 180 g |
| Width | 9.4 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
