Product no 988850904
Model 10120177
Brand BlueWalker
EAN 4260074976557
Weight 10.31 kg

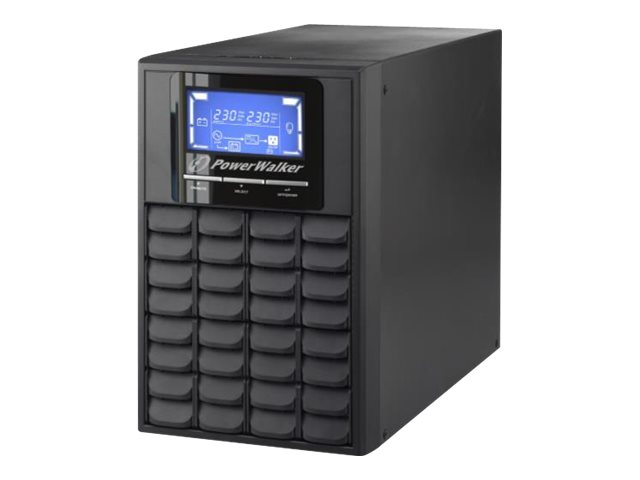

Produktbeskrivelse | PowerWalker VFI 1000C LCD - UPS - 800 Watt - 1000 VA |
Enhedstype | UPS - Power Factor Correction (PFC) - ekstern |
Vægt | 9.8 kg |
Udgangspænding | AC 200/208/220/230/240 V ± 1% |
Strømkapacitet | 800 Watt / 1000 VA |
Input-stik | 1 x strøm IEC 60320 C14 |
Output-stikforbindelser | 3 x power IEC 60320 C13 |
Batteri | - 9 At |
Antal batterier | 2 |
Netværk | RS-232, USB |
Farve | Sort |
Dimensioner (B x D x H) | 14.5 cm x 28.2 cm x 22 cm |
Producentgaranti | 2 års garanti |
General | |
---|---|
Color | Black |
Device Type | UPS - Power Factor Correction (PFC) - external |
Power Device | |
Efficiency | 88% |
Frequency Provided | 47 - 53 / 57 - 63 Hz |
Frequency Required | 40 - 70 Hz |
Input Connectors | 1 x power IEC 60320 C14 |
Input Voltage Margin | ± 5% |
Input Voltage Range | AC 110 - 300 V |
Output Voltage | AC 200/208/220/230/240 V ± 1% - 47 - 53 / 57 - 63 Hz |
Output Waveform | Sinewave |
Power Capacity | 800 Watt / 1000 VA |
Power Output Connectors Details | 3 x power IEC 60320 C13 |
UPS Technology | On-line |
Battery | |
Capacity | 9 Ah |
Quantity | 2 |
Recharge Time | 4 hour(s) |
Voltage Provided | 12 V |
Networking | |
Remote Management Interface | RS-232, USB |
Expansion / Connectivity | |
Expansion Slots | 1 (total) / 1 (free) x Intelligent Slot |
Interfaces | 1 x management (USB) - 4 pin USB Type B | 1 x management (RS-232) - 9 pin D-Sub (DB-9) |
Miscellaneous | |
Cables Included | USB cable - external | Power cable - external |
Features | SNMP support, audible alarm, LCD display, cooling fan |
Software / System Requirements | |
Software Included | ViewPower |
Manufacturer Warranty | |
Service & Support | Limited warranty - 2 years |
Environmental Parameters | |
Humidity Range Operating | 20 - 90% (non-condensing) |
Max Operating Temperature | 40 °C |
Min Operating Temperature | 0 °C |
Sound Emission | 50 dB |
Dimensions & Weight | |
Depth | 28.2 cm |
Height | 22 cm |
Weight | 9.8 kg |
Width | 14.5 cm |
Dimensions & Weight (Shipping) | |
Shipping Depth | 36 cm |
Shipping Height | 34 cm |
Shipping Weight | 11.3 kg |
Shipping Width | 23.5 cm |
