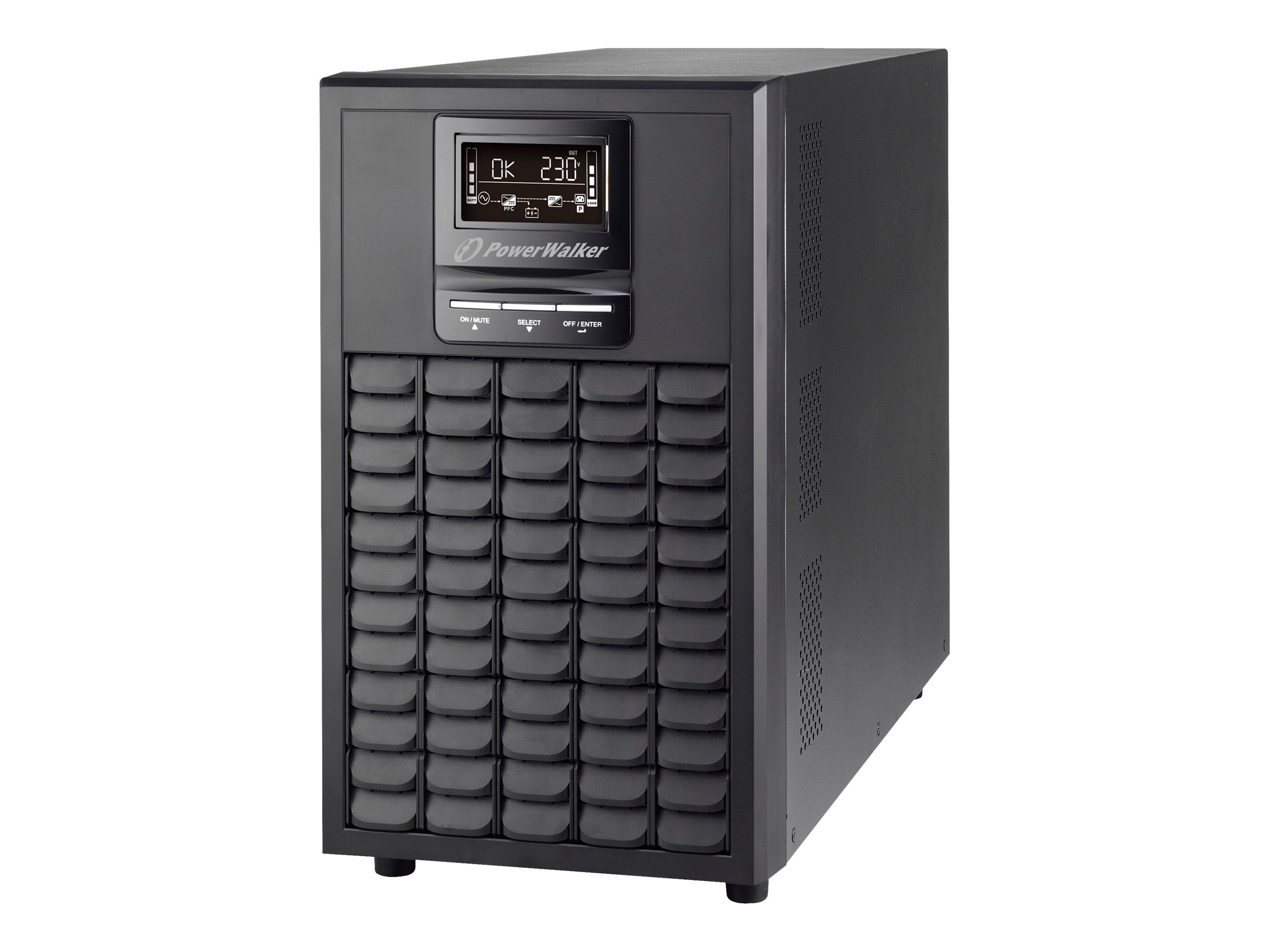

PowerWalker VFI 3000 CG PF1 UPS 3000Watt 3000VA
PowerWalker VFI 3000 CG PF1 - UPS - 3000 Watt - 3000 VA - 9 At - RS-232, USB - output-stikforbindelser: 9
8 445,00SEK6 756,00SEK excl. VAT
-
Product no 992559408
Model 10122111
Brand BlueWalker
EAN 4260074979947
Weight 28 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | PowerWalker VFI 3000 CG PF1 - UPS - 3000 Watt - 3000 VA |
| Enhedstype | UPS - ekstern |
| Vægt | 28 kg |
| Udgangspænding | AC 200/208/220/230/240 V ± 1% |
| Strømkapacitet | 3000 Watt / 3000 VA |
| Input-stik | 1 x strøm IEC 60320 C19 |
| Output-stikforbindelser | 8 x strøm IEC 60320 C13<br>1 x strøm IEC 60320 C19 |
| Batteri | Blysyre - 9 At |
| Antal batterier | 6 |
| Driftstid (op til) | 2.96 min ved fuld belastning |
| Netværk | RS-232, USB |
| Systemkrav | UNIX, Apple MacOS, Linux, Microsoft Windows 2000, Microsoft Windows 2003, Microsoft Windows Server 2008, Microsoft Windows XP / Vista / 7 / 8 / 10 |
| Dimensioner (B x D x H) | 19 cm x 42.1 cm x 31.8 cm |
| General | |
|---|---|
| Device Type | UPS - external |
| Power Device | |
| Dataline Surge Protection | Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line |
| Efficiency | 91% |
| Frequency Provided | ± 0.1Hz |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | 1 x power IEC 60320 C19 |
| Input Voltage Range | AC 110 - 300 V |
| Output Voltage | AC 200/208/220/230/240 V ± 1% |
| Output Waveform | Sinewave |
| Power Capacity | 3000 Watt / 3000 VA |
| Power Factor (PF) | 1.0 |
| Power Output Connectors Details | 8 x power IEC 60320 C13 | 1 x power IEC 60320 C19 |
| Surge Suppression | Yes |
| UPS Technology | On-line |
| Battery | |
| Capacity | 9 Ah |
| Quantity | 6 |
| Run Time (Up To) | 2.96 min at full load | 10.1 min at half load |
| Technology | Lead acid |
| Transfer Time | 0 ms |
| Voltage Provided | 72 V |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x Intelligent Slot |
| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) | 1 x management (USB) - 4 pin USB Type B | 1 x EPO (emergency power off) |
| Miscellaneous | |
| Cables Included | Power cable - external | USB cable - external |
| Compliant Standards | IEC 62040-3, VFI-SS-111 |
| Features | Built-in cooling fan, LCD display, electronic fan speed switch, programmable load outlets |
| Software / System Requirements | |
| OS Required | UNIX, Apple MacOS, Linux, Microsoft Windows 2000, Microsoft Windows 2003, Microsoft Windows Server 2008, Microsoft Windows XP / Vista / 7 / 8 / 10 |
| Software Included | ViewPower |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 50 dB |
| Dimensions & Weight | |
| Depth | 42.1 cm |
| Height | 31.8 cm |
| Weight | 28 kg |
| Width | 19 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 56 cm |
| Shipping Height | 46 cm |
| Shipping Weight | 31 kg |
| Shipping Width | 32 cm |
