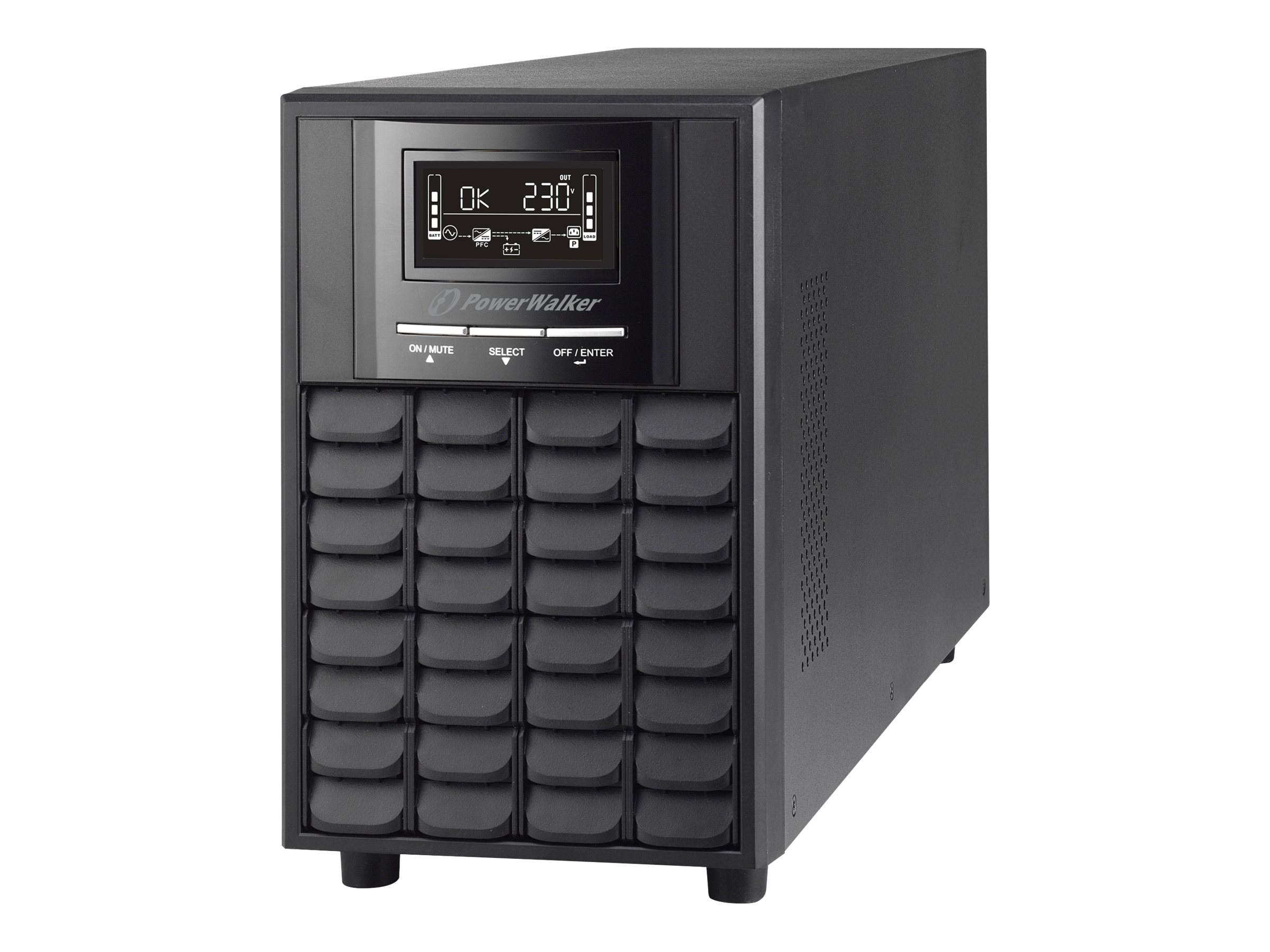

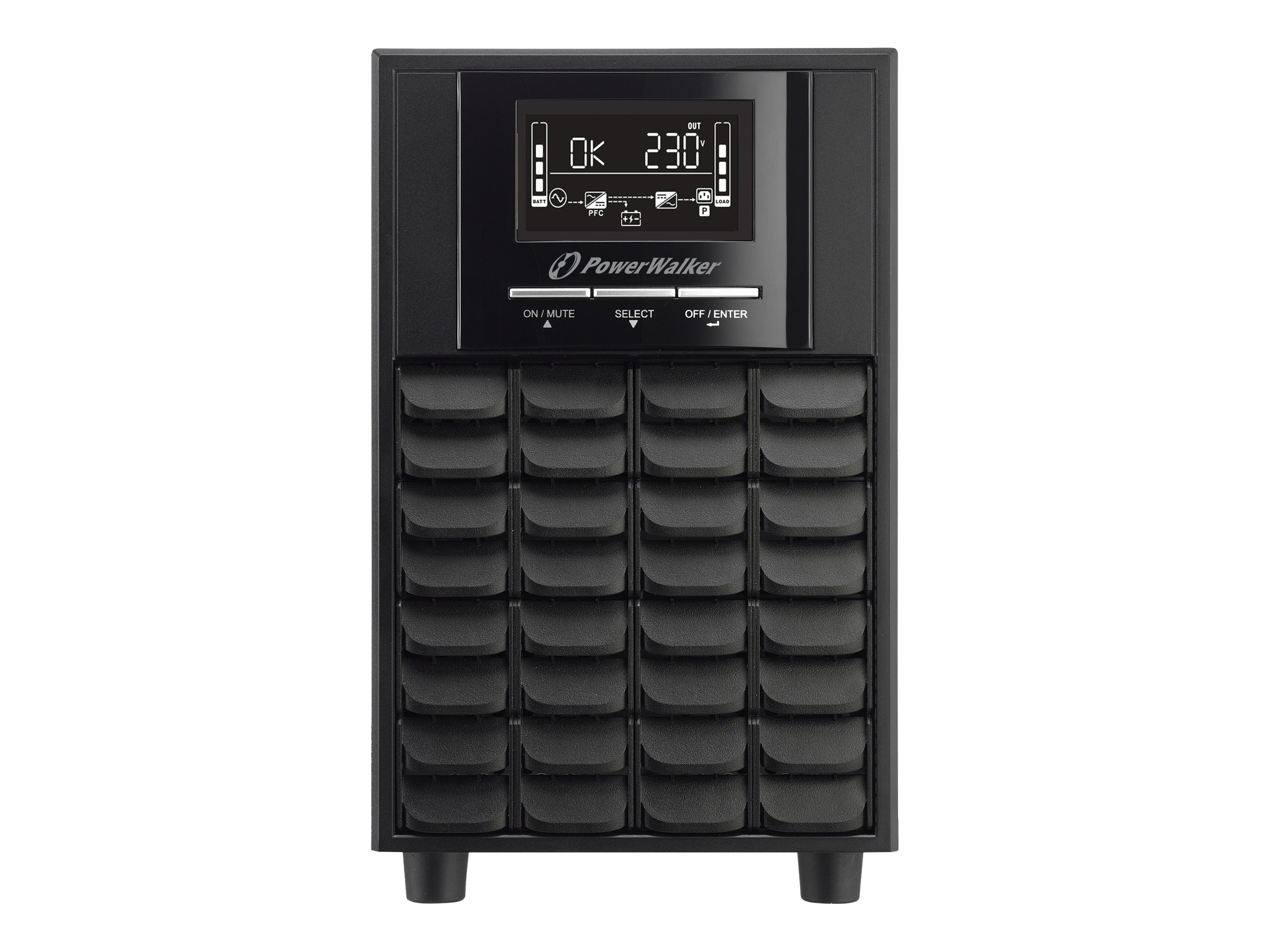

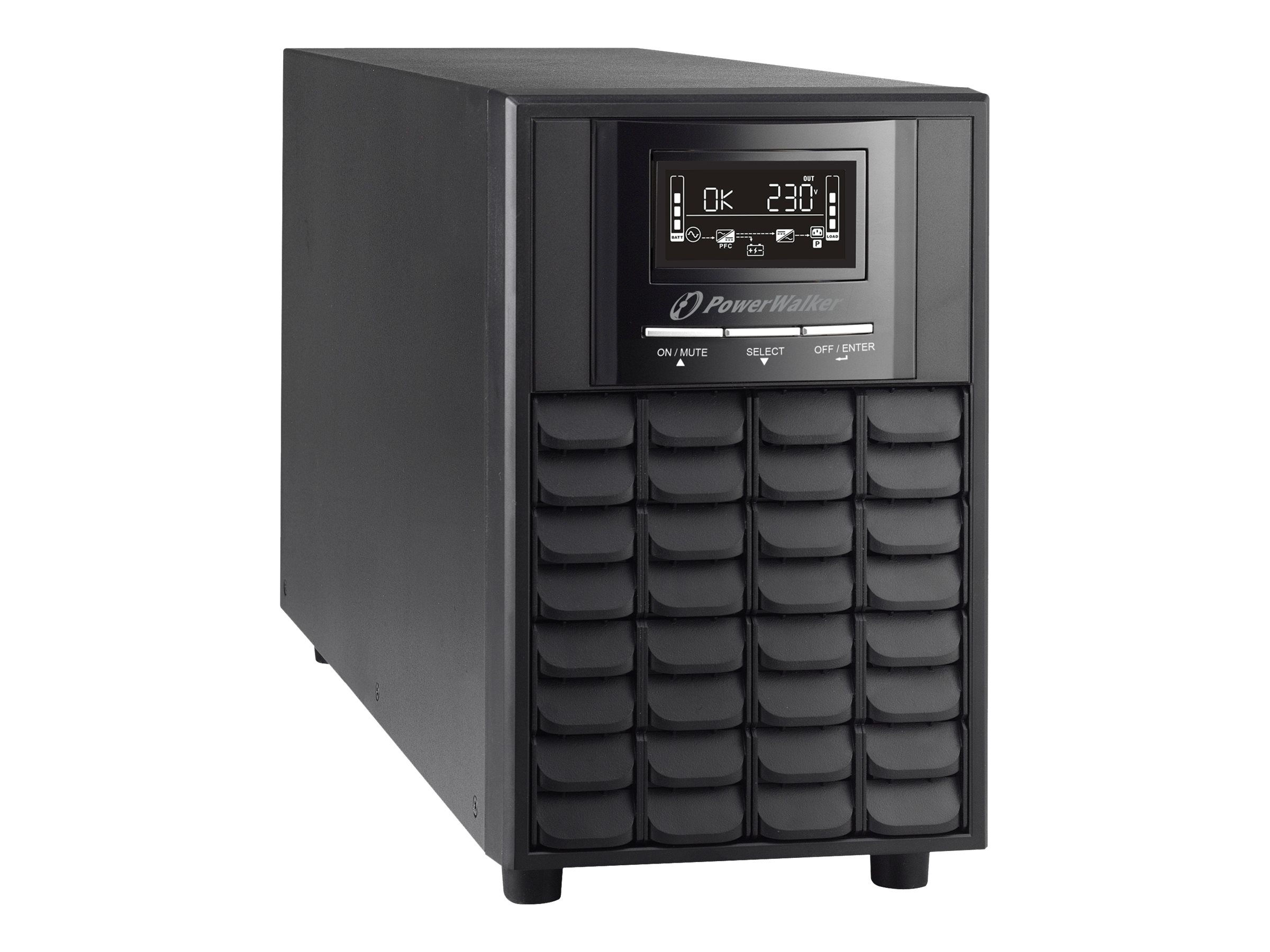

PowerWalker VI 3000 CW FR UPS 2100Watt 3000VA
PowerWalker VI 3000 CW FR - UPS - AC 162 - 290 V - 2100 Watt - 3000 VA - 9 At - RS-232, USB - output-stikforbindelser: 3
4 827,00SEK3 861,60SEK excl. VAT
-
Product no 995649201
Model 10121137
Brand BlueWalker
EAN 4260074982091
Weight 20.3 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | PowerWalker VI 3000 CW FR - UPS - 2100 Watt - 3000 VA |
| Enhedstype | UPS - ekstern |
| Vægt | 20.3 kg |
| Indgangspænding | AC 162 - 290 V |
| Udgangspænding | AC 208/220/230/240 V ± 1.5% |
| Strømkapacitet | 2100 Watt / 3000 VA |
| Input-stik | 1 x strøm IEC 60320 C20 |
| Output-stikforbindelser | 3 x strøm Type E |
| Batteri | - 9 At |
| Antal batterier | 4 |
| Driftstid (op til) | 1.5 min ved fuld belastning |
| Netværk | RS-232, USB |
| Dimensioner (B x D x H) | 14.5 cm x 45.5 cm x 22 cm |
| General | |
|---|---|
| Device Type | UPS - external |
| Power Device | |
| Efficiency | 90% Battery mode, 96% AC mode |
| Frequency Provided | 50/60 Hz ± 1Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60320 C20 |
| Input Voltage | AC 162-290 V |
| Output Voltage | AC 208/220/230/240 V ± 1.5% - 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 2100 Watt / 3000 VA |
| Power Factor (PF) | 0.7 |
| Power Output Connectors Details | 3 x power Type E |
| Surge Suppression | Yes |
| UPS Technology | Line interactive |
| Battery | |
| Capacity | 9 Ah |
| Quantity | 4 |
| Recharge Time | 4 hours |
| Run Time (Up To) | 1.5 min at full load | 4 min at half load |
| Transfer Time | 10 ms |
| Voltage Provided | 12 V |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Expansion / Connectivity | |
| Expansion Slots | Expansion slot |

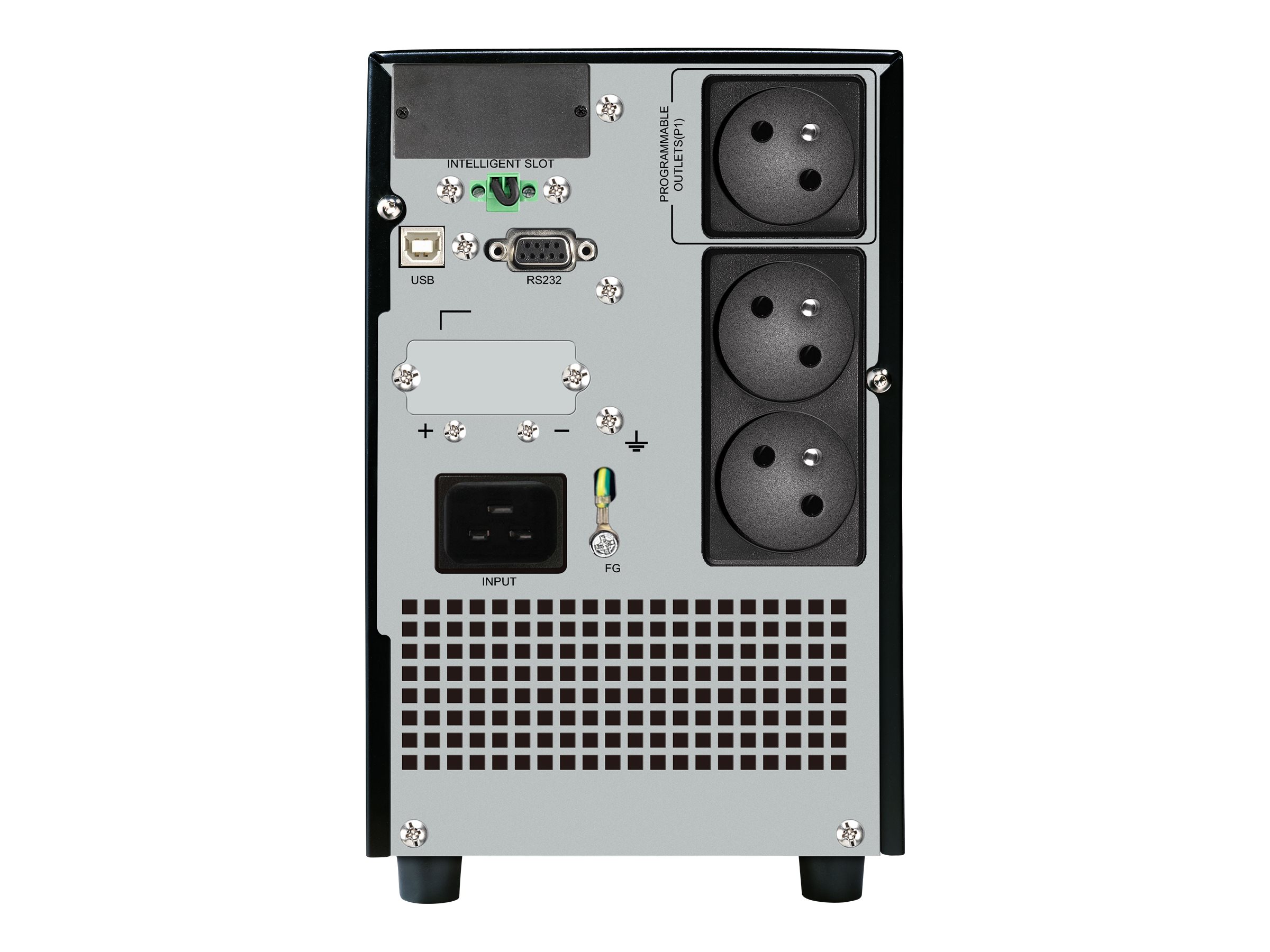

| Interfaces | 1 x EPO (emergency power off) | 1 x USB - 4 pin USB Type B | 1 x RS-232 - 9 pin D-Sub (DB-9) |
| Miscellaneous | |

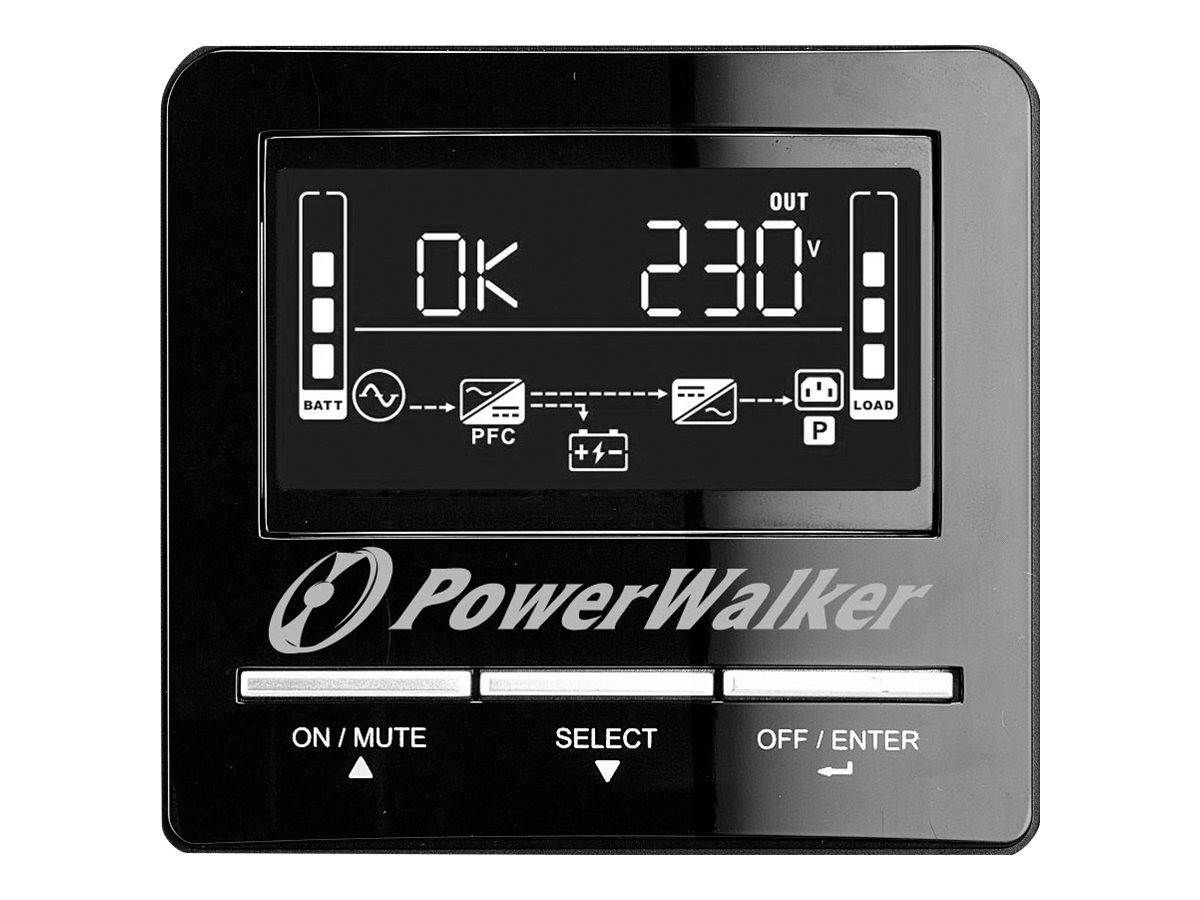

| Features | LCD display, Automatic Voltage Regulation (AVR), overcharge protection, overload protection, programmable load outlets, discharge protection, Human Interface Device (HID) support |
| Software / System Requirements | |
| Software Included | ViewPower |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 45 dB |
| Dimensions & Weight | |
| Depth | 45.5 cm |
| Height | 22 cm |
| Weight | 20.3 kg |
| Width | 14.5 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 54 cm |
| Shipping Height | 32.5 cm |
| Shipping Weight | 22.3 kg |
| Shipping Width | 23.5 cm |
