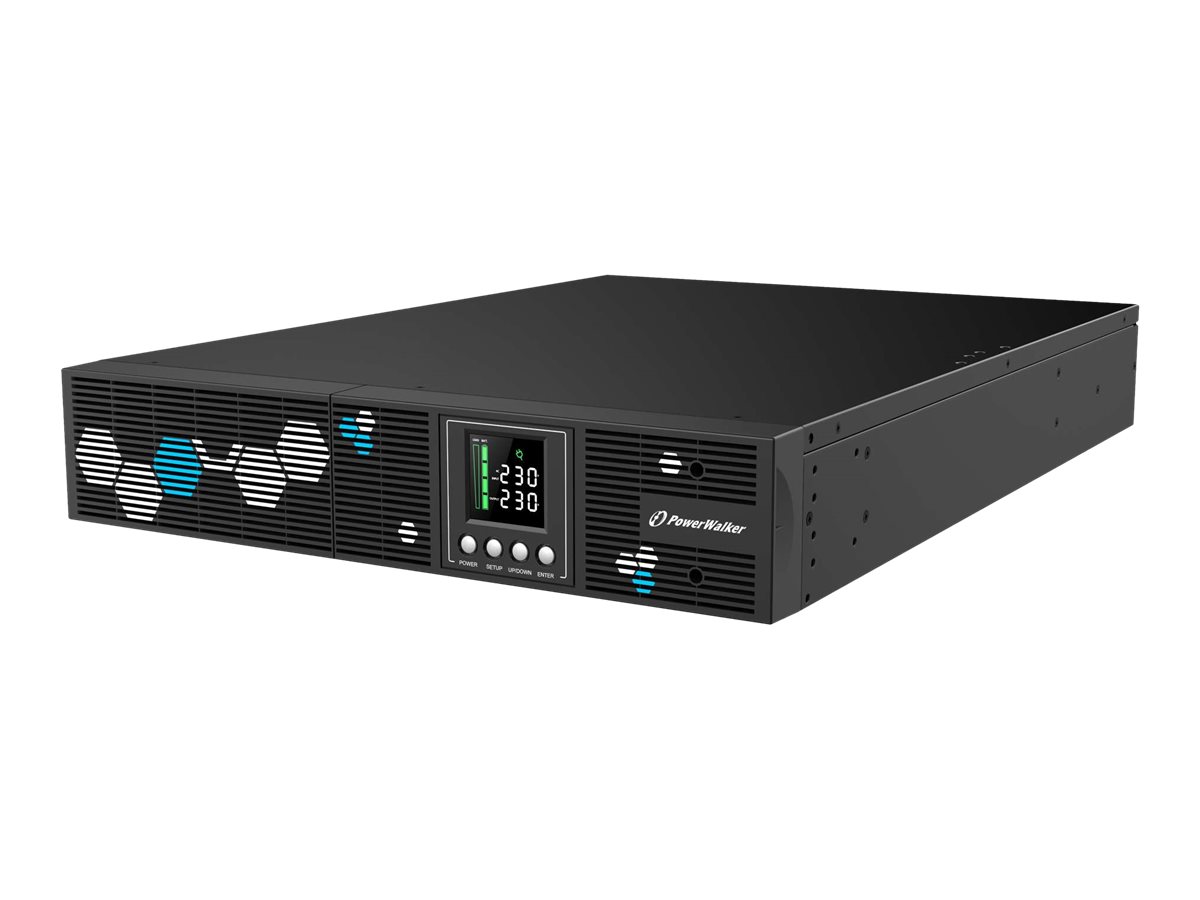

PowerWalker VI 3000 RLP UPS
PowerWalker VI 3000 RLP - UPS (rackversion) - AC 165-290 V - 2700 Watt - 3000 VA - 1-faset - 9 At - RS-232, USB - output-stikforbindelser: 8 - 2U
7 201,00SEK5 760,80SEK excl. VAT
-
Product no 1000851130
Model 10121193
Brand BlueWalker
EAN 4260074983807
Weight 25 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | PowerWalker VI 3000 RLP - UPS - 2700 Watt - 3000 VA |
| Enhedstype | UPS - rackversion |
| Rackstørrelse | 2U |
| Vægt | 35.8 kg |
| Lokalisering | Engelsk, Tysk, Fransk, Polish, Spansk |
| Indgangskabler | 1-faset |
| Indgangspænding | AC 165-290 V |
| Udgangspænding | AC 230 V ± 10% |
| Strømkapacitet | 2700 Watt / 3000 VA |
| Input-stik | 1 x strøm IEC 60320 C20 |
| Batteri | - 9 At |
| Antal batterier | 6 |
| Driftstid (op til) | 2.5 min ved fuld belastning |
| Netværk | RS-232, USB |
| Dimensioner (B x D x H) | 43.8 cm x 61 cm x 8.8 cm |
| General | |
|---|---|
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 2U |
| Localization | English, German, French, Polish, Spanish |
| Power Device | |
| Efficiency | 98.8% at 100% Load |
| Frequency Provided | 45 - 65 Hz ± 1Hz |
| Frequency Required | 45 - 65 Hz |
| Input Connectors | 1 x power IEC 60320 C20 |
| Input Voltage | AC 165-290 V |
| Input Wiring | 1-phase |
| Output Voltage | AC 230 V ± 10% - 45 - 65 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 2700 Watt / 3000 VA |
| Power Factor (PF) | 0.9 |
| UPS Technology | Line interactive |
| Battery | |
| Capacity | 9 Ah |
| Quantity | 6 |
| Run Time (Up To) | 9 min at 50% load |
| Transfer Time | 4 ms |
| Voltage Provided | 12 V |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x Intelligent Slot |
| Interfaces | 1 x management (USB) - 4 pin USB Type B | 1 x RS-232 |
| Miscellaneous | |
| Compliant Standards | IEC 62040-3, IP20 |
| Features | Emergency power off, Automatic Voltage Regulation (AVR), overload protection, cold-start function, Energy-Saving Outlets, programmable load outlets, remote reboot, generator compatible, rotatable LCD panel, off-mode charging, Human Interface Device ( |
| Software / System Requirements | |
| Software Included | PowerMaster |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% RH (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 45 dB |
| Dimensions & Weight | |
| Depth | 61 cm |
| Height | 8.8 cm |
| Weight | 35.8 kg |
| Width | 43.8 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 74 cm |
| Shipping Height | 23.1 cm |
| Shipping Weight | 38.4 kg |
| Shipping Width | 55.6 cm |
