PowerWalker VI 750 R1U UPS

PowerWalker VI 750 R1U - UPS (rackversion) - AC 165-290 V - 450 watt - 750 VA - 9 At - RS-232, USB - output-stikforbindelser: 4 - 1U - 19"

SEK 2 478,00
SEK 1 982,40 excl. VAT

Varenummer: 993216842
Model: 10121048
EAN: 4260074980394
Brand:
BlueWalker
Vægt: 10.4 kg

Specifications

Produktbeskrivelse
PowerWalker VI 750 R1U - UPS - 450 watt - 750 VA
Enhedstype
UPS - rackversion
Rackstørrelse
19" - 1U
Vægt
8.6 kg
Indgangspænding
AC 165-290 V
Udgangspænding
AC 230 V ± 10%
Strømkapacitet
450 watt / 750 VA
Input-stik
1 x strøm IEC 60320 C14
Output-stikforbindelser
4 x power IEC 60320 C13
Batteri
- 9 At
Antal batterier
2
Driftstid (op til)
0.5 min ved fuld belastning
Netværk
RS-232, USB
Dimensioner (B x D x H)
43.3 cm x 21.6 cm x 4.4 cm
Specifications

Full specifications

General
Device Type
UPS - rack-mountable
Height (Rack Units)
1U
Rack Size
19"
Power Device
Frequency Provided
± 0.5Hz
Frequency Required
45 - 55 Hz
Input Connectors
1 x power IEC 60320 C14
Input Voltage
AC 165-290 V
Output Voltage
AC 230 V ± 10%
Output Waveform
Sinewave
Power Capacity
450 Watt / 750 VA
Power Factor (PF)
0.6
Power Output Connectors Details
4 x power IEC 60320 C13
Surge Suppression
Yes
UPS Technology
Line interactive
Battery
Capacity
9 Ah
Quantity
2
Recharge Time
5 hours
Run Time (Up To)
0.5 min at full load | 4.7 min at 75% load | 10.9 min at half load | 26 min at 25% load
Transfer Time
4 ms
Voltage Provided
6 V
Networking
Remote Management Interface
RS-232, USB
Expansion / Connectivity
Expansion Slots
1 (total) / 1 (free) x Intelligent Slot
Interfaces

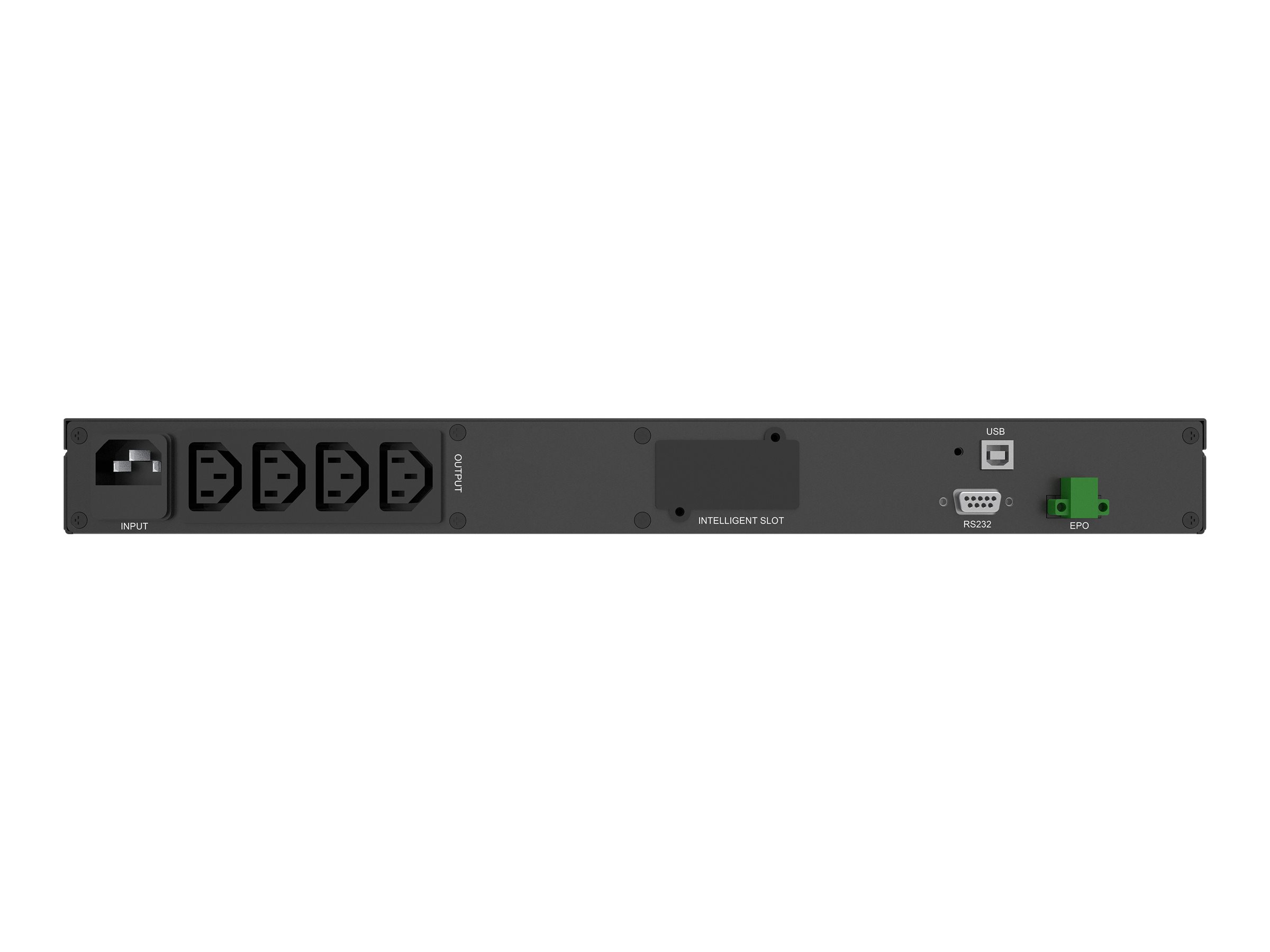

1 x management (USB) - 4 pin USB Type B | 1 x management (RS-232) - 9 pin D-Sub (DB-9) | 1 x EPO (emergency power off)
Miscellaneous
Cables Included
USB cable - external | Power cable - external
Features
Emergency power off, LCD display, overload protection
Software / System Requirements
Software Included
PowerMaster
Environmental Parameters
Humidity Range Operating
0 - 90% (non-condensing)
Max Operating Temperature
40 °C
Min Operating Temperature
0 °C
Dimensions & Weight
Depth
21.6 cm
Height
4.4 cm
Weight
8.6 kg
Width
43.3 cm
Dimensions & Weight (Shipping)
Shipping Depth
31.7 cm
Shipping Height
15 cm
Shipping Weight
9.8 kg
Shipping Width
53.7 cm
