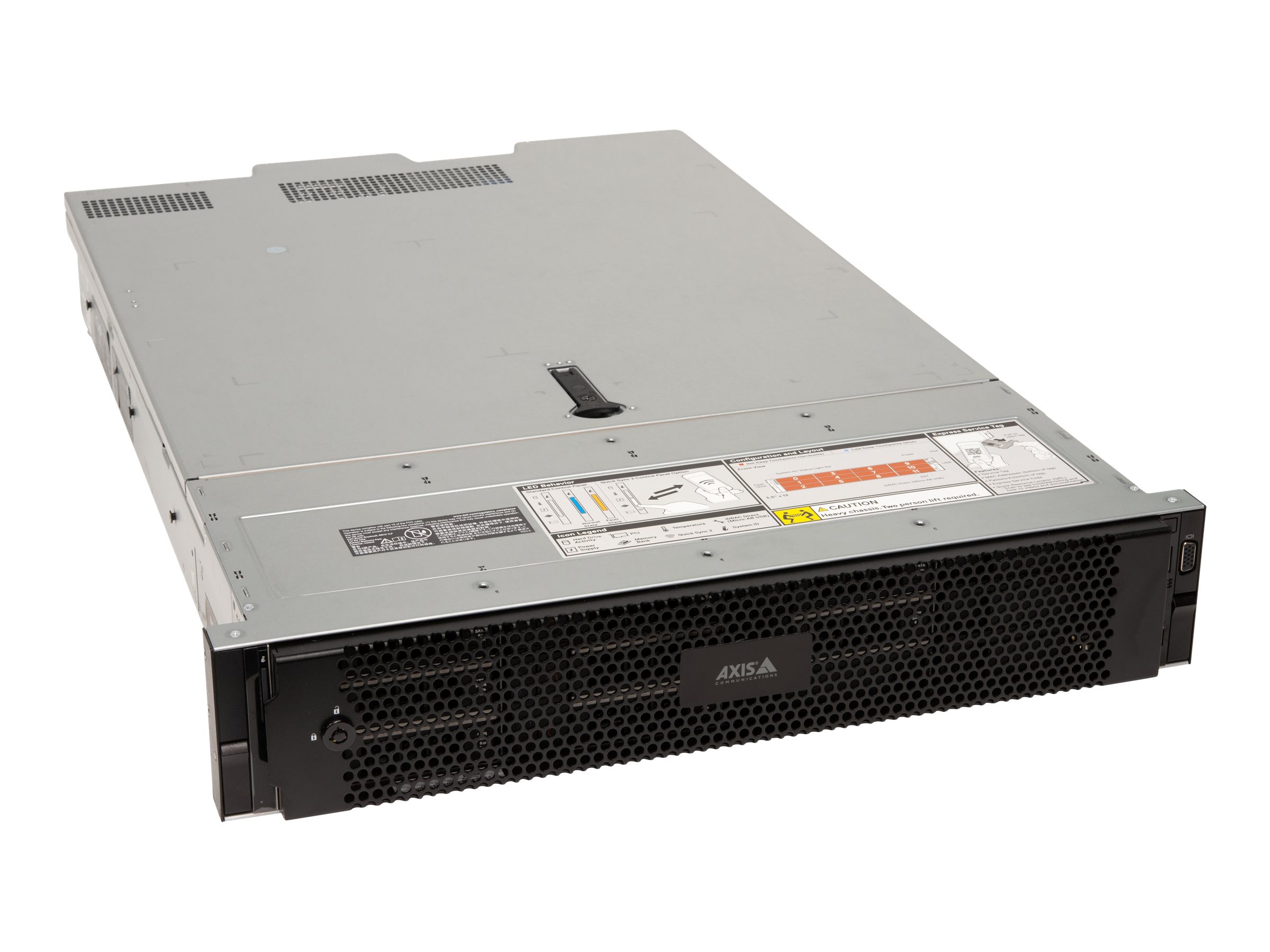

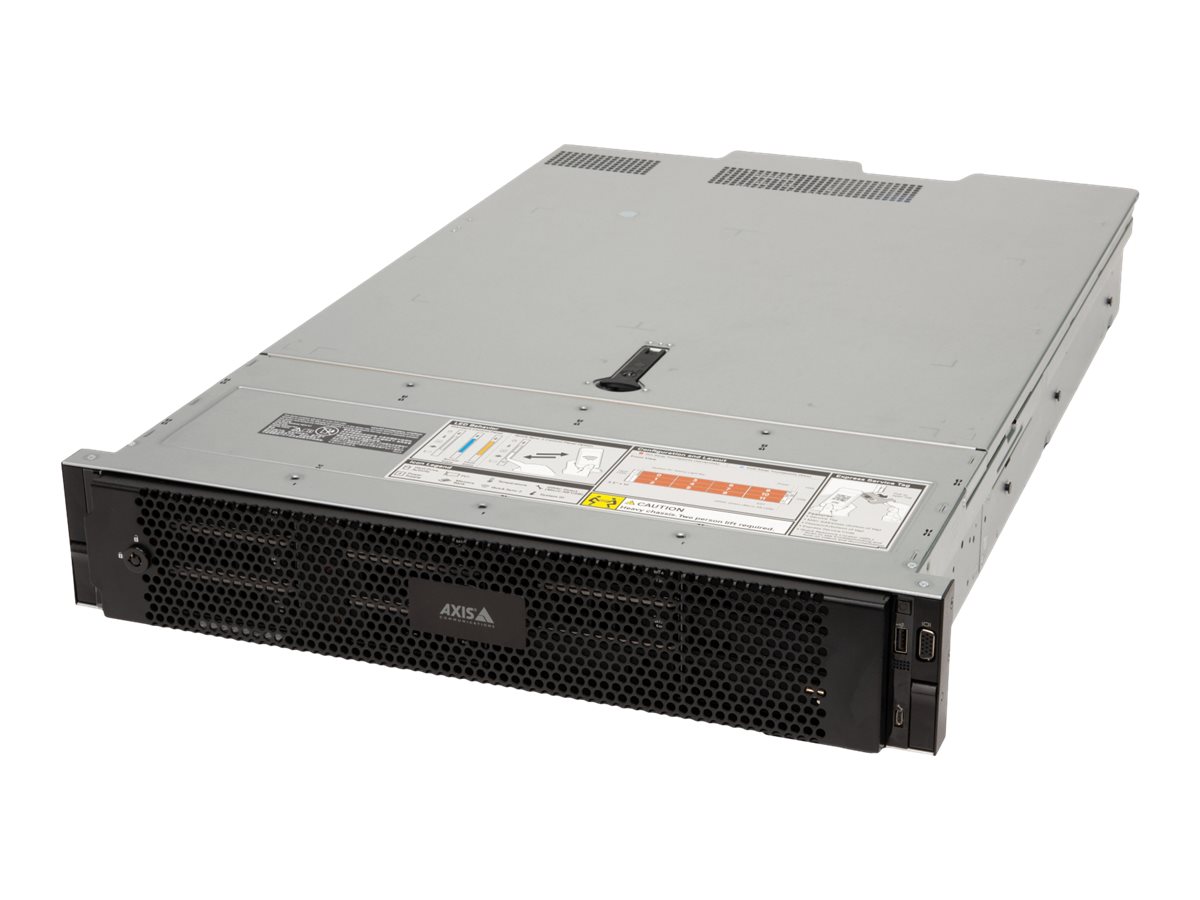

AXIS Camera Station S1264 Recorder 24.24TB Windows 10 IoT Enterprise 2021 LTSC
AXIS Camera Station S1264 Recorder - Server - rack-monterbar 2U - 1 x Xeon Silver - RAM 16 GB - hot-swap - HDD 6 x 4 TB, SSD 240 GB - Gigabit Ethernet - Win 10 IoT Enterprise 2021 LTSC - skærm: ingen
152 081,00 SEK
121 664,80 SEK excl. VAT
-
Product no 1000651364
Model 02539-001
Brand Axis Communications
EAN 7331021079229
Weight 20.8 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | AXIS Camera Station S1264 Recorder - rack-monterbar Xeon Silver - 16 GB - HDD 6 x 4 TB, SSD 240 GB |
| Type | Server - rack-monterbar |
| Højde (rackenheder) | 2U |
| Lokalisering | Region: Argentina, Australien, Japan, Indien, Korea, Brasilien, United Kingdom, USA, Europa |
| Processor | 1 x Intel Xeon Silver |
| RAM | 16 GB |
| Controller for lagring | RAID |
| Server-lagringsenheder | Hot-swap |
| Harddisk | 6 x HDD 4 TB (hot-swap) |
| Harddisk (2.) | SSD 240 GB |
| Optisk lagring | Intet optisk drev |
| Netværk | 1GbE |
| Effekt | (50/60 Hz) |
| Overskudsspænding | Ja |
| Med OS | Windows 10 IoT Enterprise 2021 LTSC |
| Med software | AXIS Camera Station (64 kanalers licens) |
| Dimensioner (B x D x H) | 48.2 cm x 72.162 cm x 8.7 cm |
| Vægt | 20.8 kg |
| Producentgaranti | Begrænset garanti - 5 år |
| General | |
|---|---|
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Hot-Swap Bays Qty | 12 |
| Localization | Region: Argentina, Australia, Japan, India, Korea, Brazil, United Kingdom, United States, Europe |
| Product Form Factor | Rack-mountable - 2U |
| Type | Server |
| Processor / Chipset | |
| CPU | Intel Xeon Silver |
| CPU Qty | 1 |
| RAM | |
| Configuration Features | 2 x 8 GB |
| Installed Size | 16 GB |
| Hard Drive | |
| Capacity | 6 x 4 TB |
| Features | RAID 5 - factory configured, Enterprise Class |
| Type | HDD - hot-swap |
| Hard Drive (2nd) | |
| Capacity | 1 x 240 GB |
| Type | SSD |
| Storage Controller | |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| Type | RAID |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Features | 80 validated video channels |
| Expansion / Connectivity | |
| Interfaces | 2 x USB 2.0 (1 front, 1 rear) | 2 x VGA (1 front, 1 rear) | 1 x management (1 in front) (iDRAC Direct port) | 1 x USB 3.0 (1 rear) | 1 x management (1 rear) (iDRAC dedicated port) | 2 x LAN (Gigabit Ethernet) - RJ-45 (2 rear) |
| Miscellaneous | |
| Compliant Standards | BSMI, EN 61000-3-2, EN 61000-3-3, EN55024, FIPS 140-2 Level 2, EMC, ICES-003 Class A, EN 62311, NOM-019-SCFI-1998, AS/NZS CISPR 32 Class A, EN 55032 Class A, IEC/EN/UL 60950-1, EN 55035, IEC/EN/UL 62368-1, NDAA, KS C 9832 Class A, KS C 9835 |
| Included Accessories | ReadyRails sliding rails |
| Power | |
| Device Type | Power supply - hot-plug |
| Installed Qty | 2 |
| Power Provided | 800 Watt |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Operating System / Software | |
| OS Provided | Windows 10 IoT Enterprise 2021 LTSC |
| Software | AXIS Camera Station (64 channels license) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Dimensions & Weight | |
| Depth | 72.162 cm |
| Height | 8.7 cm |
| Weight | 20.8 kg |
| Width | 48.2 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% RH (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 10 °C |
