StarTech.com 10-Port USB 3.0 Hub - Metal Industrial USB-A Hub with ESD & Surge Protection - Din Rail, Wall or Desk Mountable - TAA Compliant USB Expander Hub (ST1030USBM) Sort
StarTech.com 10-Port USB 3.0 Hub - Metal Industrial USB-A Hub with ESD & Surge Protection - Din Rail, Wall or Desk Mountable - TAA Compliant USB Expander Hub (ST1030USBM) - Hub - 10 x SuperSpeed USB 3.0 - DIN monterbar på skinne - DC strøm - for P/N: ITB20D3250, USB312SAT3CB, USB315CB2M, USBLT1MWS, USBLT2MBR, USBLTM1MBK, USBLTM1MWH
2 254,00 SEK
1 803,20 SEK excl. VAT
-
Product no 990049574
Model ST1030USBM
Brand StarTech.com
EAN 0065030863001
Weight 0.59 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | StarTech.com 10-Port USB 3.0 Hub - Metal Industrial USB-A Hub with ESD & Surge Protection - Din Rail, Wall or Desk Mountable - TAA Compliant USB Expander Hub (ST1030USBM) - hub - 10 porte |
| Enhedstype | Hub - 10 porte |
| Undertype | USB |
| Porte | 10 x SuperSpeed USB 3.0 |
| Egenskaber | Strømstødsbeskyttelse, 15KV ESD Protector |
| Overensstemmelsesstandarder | USB 1.1, USB 2.0, USB 3.0 |
| Effekt | DC 7 - 24 V |
| Dimensioner (B x D x H) | 19.8 cm x 5.6 cm x 3.1 cm |
| Vægt | 350 g |
| Farve | Sort |
| Producentgaranti | 2 års garanti |
| Designet for | P/N: ITB20D3250, USB312SAT3CB, USB315CB2M, USBLT1MW, USBLT1MWS, USBLT2MBR, USBLT2MW, USBLT30CMW, USBLTM1MBK, USBLTM1MWH, UUSBHAUB1RA, UUSBHAUB3, UUSBHAUB3LA, UUSBHAUB3RA, UUSBHAUB6IN, UUSBHAUB6RA |
| General | |
|---|---|
| Compliant Standards | USB 1.1, USB 2.0, USB 3.0 |
| Device Type | Hub - 10 ports |
| Enclosure Type | DIN rail mountable |
| Features | Surge protection, 15KV ESD Protector |
| Ports | 10 x SuperSpeed USB 3.0 |
| Status Indicators | Power |
| Subtype | USB |
| Expansion / Connectivity | |
| Interfaces | 10 x USB 3.0 Type A | 1 x USB 3.0 Type B |
| Power | |
| Power Device | External power adapter |
| Voltage Required | DC 7 - 24 V |
| Miscellaneous | |
| Cables Included | 1 x USB power cable |
| Color | Black |
| Compliant Standards | FCC, RoHS, WEEE, USB Battery Charging Specification Rev. 1.2 |
| Included Accessories | DIN-rail mounting kit, power terminal block |
| Dimensions & Weight | |
| Depth | 5.6 cm |
| Height | 3.1 cm |
| Weight | 350 g |
| Width | 19.8 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 70 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -20 °C |
| Compatibility Information | |
| Designed For | P/N: ITB20D3250, USB312SAT3CB, USB315CB2M, USBLT1MW, USBLT1MWS, USBLT2MBR, USBLT2MW, USBLT30CMW, USBLTM1MBK, USBLTM1MWH, UUSBHAUB1RA, UUSBHAUB3, UUSBHAUB3LA, UUSBHAUB3RA, UUSBHAUB6IN, UUSBHAUB6RA |
Add ten USB 3.0 (5Gbps) ports with this DIN rail or surface-mountable metal hub
- Provides maximum USB scalability, with ten USB 3.0 Type-A ports
- Protects your connected devices with 15kV ESD protection and 350-watt surge protection
- Offers flexible, wide-range 7-24V DC terminal block power input (standard AC power adapter not supported or included)
- Ideal for harsh industrial environments, with an extended operating temperature range
- Rugged, wall-mountable metal housing plus optional DIN rail mounts
- Supports USB Battery Charging Specification 1.2 and delivers 1.5 amps to each USB port
- Ten SuperSpeed USB 3.0 hub ports, with throughput support up to 5Gbps
- Supports multi transaction translators (Multi-TT) on each port for legacy USB devices
- Integrated, threaded screw-lock holes - prevent cables from becoming loose or disconnected in an industrial environment
- Backward compatible with USB 2.0 and 1.x devices
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Connect more USB devices
Designed for a high volume of connections in industrial environments,this robust USB 3.0 hub offers ten connection ports, unlike most four or seven-port USB 3.0 (also known as USB 3.1 Gen 1) hubs.With more ports you can connect more devices, such as USB-based control equipment, external storage, and more. Plus, you can avoid the aggravation of connecting and disconnecting devices when all ports are occupied.
The hub also supports USB Battery Charging Specification 1.2, delivering up to 1.5 amps power to each USB port, so you can charge yourmobile devices faster than traditional USB ports allow.
.jpg)

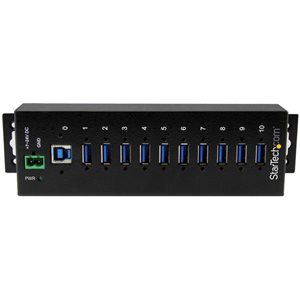

Perfect for harsh industrial environments
This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. And because it supports wide-range 7-24V DC terminalblock input, you have the flexibility to power the hub as required, based on your own power input capabilities.Perfect for factory environments, the rugged hub also supports an extended operating temperature range (0°C to 70°C) and offers surge and ESD protection to each USB port, which can help prevent damage to your connected devices.
.jpg)

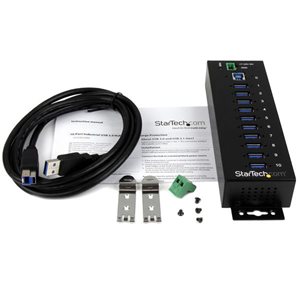

Locate the hub where you need it most
With versatile installation options, you can install the hub where it’s best suited for your environment. You can securely mount the USB 3.0 hubto a surface, wall, or under a desk, and, it includes optional DIN railmounts for use with equipment rack installations..jpg)

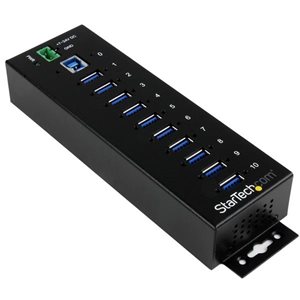

Works with your older USB devices
The industrial hub supports the full 5Gbps bandwidth of USB 3.0 and is also backward compatible with previous USB devices. You can connect your legacy USB 2.0 and 1.x peripherals alongside your newer USB 3.0 devices without any disruptions.The ST1030USBM is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Applications
- Install the hub in tough conditions that are subject to large temperature variances, or where there’s a risk of physical damage
- Deploy on assembly lines where only terminal block power is available
- Connect a variety of USB devices such as industrial printers or cameras, plus fast-charge your smartphone and tablet
