StarTech.com 1000 Mbps Single-Mode Copper to Fiber Media Converter - (1000Base-T) to LC Fiber Converter (ET1000S40LC2) Fibermedieomformer Gigabit Ethernet

StarTech.com 1000 Mbps Gigabit Single-Mode Copper to Fiber Media Converter - Ethernet (1000Base-T) to LC Fiber Converter (ET1000S40LC2) - Fibermedieomformer - 1GbE - 1000Base-LX, 1000Base-SX, 1000Base-T - RJ-45 / LC enkelttilstand - op til 40 km - 1310 nm - for P/N: SVA12M2NEUA, SVA12M5NA

5 348,00 SEK 4 278,40 SEK excl. VAT

  • Product no 988492953

    Model ET1000S40LC2

    Brand StarTech.com

    EAN 0065030846066

    Weight 0.8 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse StarTech.com 1000 Mbps Gigabit Single-Mode Copper to Fiber Media Converter - Ethernet (1000Base-T) to LC Fiber Converter (ET1000S40LC2) - fibermedieomformer - 1GbE
Enhedstype Fibermedieomformer - RJ-45 / LC enkelttilstand
Model Ekstern
Lokalisering Nordamerika, United Kingdom, Europa
Kabeltype 1000Base-LX, 1000Base-SX, 1000Base-T
Dataoverførselshastighed 1 Gbps
Optisk bølgelængde 1310 nm
Dataforbindelsesprotokol 1GbE
Maks. overføringsafstand 40 km
Effekt AC 120/230 V
Dimensioner (B x D x H) 9.5 cm x 16 cm x 2 cm
Vægt 0.62 kg
Producentgaranti 2 års garanti
Designet for P/N: SVA12M2NEUA, SVA12M5NA
General
Color Black
Device Type Fiber media converter
Form Factor External
Localization North America, United Kingdom, Europe
Networking
Cabling Type 1000Base-LX, 1000Base-SX, 1000Base-T
Connectivity Technology Wired
Data Link Protocol GigE
Data Transfer Rate 1 Gbps
Features Auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode
Max Transfer Distance 40 km
Optical Wave Length 1310 nm
Expansion / Connectivity
Interfaces 1 x Ethernet 1000Base-T - RJ-45 female | 1 x Ethernet 1000Base-LX/1000Base-SX - LC single-mode female x 2
Miscellaneous
Compliant Standards Plug and Play, FCC, RoHS
MTBF 65,000 hours
Power
Power Device External power adapter
Voltage Required AC 120/230 V
Dimensions & Weight
Depth 16 cm
Height 2 cm
Weight 0.62 kg
Width 9.5 cm
Manufacturer Warranty
Service & Support Limited warranty - 2 years
Environmental Parameters
Humidity Range Operating 10 - 90% (non-condensing)
Max Operating Temperature 60 °C
Min Operating Temperature 0 °C
Compatibility Information
Designed For P/N: SVA12M2NEUA, SVA12M5NA

Convert and extend a Gigabit Ethernet connection up to 24.8 miles/40km over Single Mode LC fiber

  • Supports standalone operation, or installation into the ETCHS2U Rackmount Chassis
  • Advanced features include Link-loss forwarding, remote monitor status, two frame lengths
  • Maximum Fiber Cable length of 40 Km
  • Supports full or half-duplex operation
  • Easy installation
Convert and extend a Gigabit Ethernet connection up to 24.8 miles/40km over Single Mode LC fiber
slide {0} of {1}, zoom in, Convert and extend a Gigabit Ethernet connection up to 24.8 miles/40km over Single Mode LC fiber
slide {0} of {1}, zoom in, Convert and extend a Gigabit Ethernet connection up to 24.8 miles/40km over Single Mode LC fiber
slide {0} of {1}, zoom in, Convert and extend a Gigabit Ethernet connection up to 24.8 miles/40km over Single Mode LC fiber
slide {0} of {1}, zoom in, Convert and extend a Gigabit Ethernet connection up to 24.8 miles/40km over Single Mode LC fiber
slide {0} of {1}, zoom in, Convert and extend a Gigabit Ethernet connection up to 24.8 miles/40km over Single Mode LC fiber
Link loss forwarding, remote monitoring of status ensures maximum up-time

Link loss forwarding, remote monitoring of status ensures maximum up-time

The ET1000S40LC2 1000 Mbps Gigabit Single-Mode Fiber Media Converter (LC, 40 km) enables you to extend a Gigabit Ethernet network over single-mode fiber, at distances up to 40km (25 miles).
Rugged steel casing for added durability in harsh environments

Rugged steel casing for added durability in harsh environments

Designed to offer a durable and convenient Ethernet to fiber solution, the Ethernet to LC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.

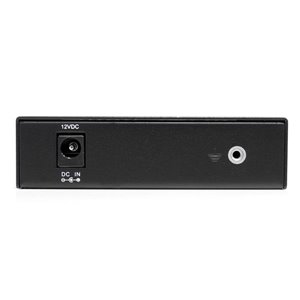

Cost-effective way to extend/bridge networks using fiber cabling

Cost-effective way to extend/bridge networks using fiber cabling

A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, the GbE to SM fiber converter supports full Gigabit speeds for ideal network performance and scalability.

Applications

  • Provides connectivity to a user or network segment that is in an isolated area of a large complex or in another building altogether
  • Perfect for secure connections required by government agencies where EMI is not acceptable
  • Connect traffic control/monitoring systems at extreme distances to the main office
  • Extend network connectivity to remote areas of stadiums, auditoriums or other venues
  • Converts 1000Base-LX fiber optic signals to 1000Base-T Ethernet over single mode fiber cable
