StarTech.com 2-Port DisplayPort KVM - Dual-Monitor - 4K 60 - Audio & USB Peripheral Support - DP 1.2 - USB Hub (SV231DPDDUA2) KVM / audio / USB switch Desktop

StarTech.com 2-Port DisplayPort KVM Switch - Dual-Monitor - 4K 60 - with Audio & USB Peripheral Support - DP 1.2 - USB Hub (SV231DPDDUA2) - KVM / audio / USB switch - 2 x KVM / audio / USB - 1 lokalbruger - desktop - AC 120/230 V / DC 12 V - for P/N: SVA12M2NEUA, SVA12M5NA

3 724,00 SEK 2 979,20 SEK excl. VAT

  • Product no 992415843

    Model SV231DPDDUA2

    Brand StarTech.com

    EAN 0065030867177

    Weight 1.2 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse StarTech.com 2-Port DisplayPort KVM Switch - Dual-Monitor - 4K 60 - with Audio & USB Peripheral Support - DP 1.2 - USB Hub (SV231DPDDUA2) - KVM / audio / USB switch - 2 porte
Enhedstype KVM / audio / USB switch - 2 porte
Undertype KVM
Porte 2 x KVM / audio / USB
Antal KVM-brugere 1 lokalbruger
Egenskaber 4K opløsningssupport
Effekt AC 120/230 V / DC 12 V 0.6 A
Dimensioner (B x D x H) 16.1 cm x 10 cm x 5.75 cm
Vægt 1.2 kg
Farve Sort
Lokalisering Australien, Japan, New Zealand, Nordamerika, United Kingdom, Europa
Producentgaranti 2 års garanti
Designet for P/N: SVA12M2NEUA, SVA12M5NA
General
Device Type KVM / audio / USB switch - 2 ports
Enclosure Type Desktop
Features 4K resolution support
Keyboard / Mouse Interface USB
KVM Local Users Qty 1 local user
Max Resolution 3840 x 2160 @ 60 Hz
Ports 2 x KVM / audio / USB
Subtype KVM
Expansion / Connectivity
Interfaces 6 x DisplayPort | 3 x audio / headphones mini-jack | 3 x microphone input mini-jack | 4 x USB 2.0 Type A | 2 x USB Type B
Power
Electric Current Required 0.6 A
Power Device External power adapter
Voltage Required AC 120/230 V / DC 12 V
Miscellaneous
Color Black
Compliant Standards FCC, RoHS, WEEE, RCM
Included Accessories 4 rubber feet
Localization Australia, Japan, New Zealand, North America, United Kingdom, Europe
Dimensions & Weight
Depth 10 cm
Height 5.75 cm
Weight 1.2 kg
Width 16.1 cm
Manufacturer Warranty
Service & Support Limited warranty - 2 years
Environmental Parameters
Humidity Range Operating 0 - 80%
Max Operating Temperature 40 °C
Max Storage Temperature 60 °C
Min Operating Temperature 0 °C
Min Storage Temperature -20 °C
Compatibility Information
Designed For P/N: SVA12M2NEUA, SVA12M5NA

Access two dual-monitor computers and two shared USB peripherals from a single workstation

  • Maximum productivity with dual-display, multi-computer access
  • Full multimedia control with separate 3.5 mm auxiliary support
  • Astonishing picture quality with support for Ultra HD 4K resolutions at 60Hz
  • Share your USB peripheral devices with built-in 2-port USB hub
Access two dual-monitor computers and two shared USB peripherals from a single workstation
slide {0} of {1}, zoom in, Access two dual-monitor computers and two shared USB peripherals from a single workstation0:39
slide {0} of {1}, zoom in, Access two dual-monitor computers and two shared USB peripherals from a single workstation
slide {0} of {1}, zoom in, Access two dual-monitor computers and two shared USB peripherals from a single workstation
slide {0} of {1}, zoom in, Access two dual-monitor computers and two shared USB peripherals from a single workstation
slide {0} of {1}, zoom in, Access two dual-monitor computers and two shared USB peripherals from a single workstation

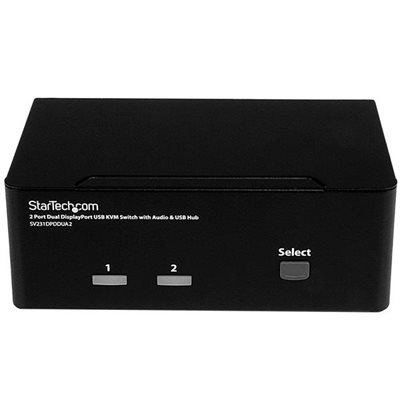

Maximize productivity with dual video

Maximize productivity with dual video

With support for two DisplayPort video inputs and two different computers, this KVM switch helps maximize productivity.You can access multiple computers, giving you the freedom to multitask and increase your productivity. Each of the DP ports supports resolutions up to 4K for maximum screen viewing space.

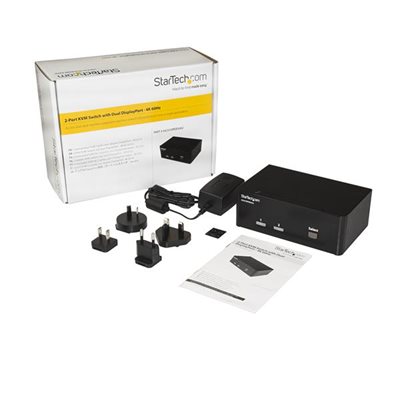

Astonishing picture quality

Astonishing picture quality

The dual DisplayPort KVM switch supports resolutions up to Ultra HD 4K at 60Hz, and can drive two large DP displays with ease. This makes it the ideal solution for creating workstations where high-quality imaging is critical, such as for graphic design.

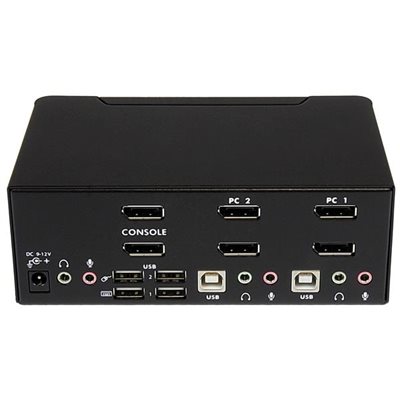

Complete multimedia control

Complete multimedia control

The KVM switch features auxiliary 3.5 mm audio ports that let you share independent analog audio, from each of your connected computers, with your desktop speaker set. With independent audio support, along with dual 4K DP video, you get full multimedia control between different computers which makes this the perfect KVM switch for creative professional applications such as video and sound design or editing.

Applications

  • Control two computers, each with dual-head video cards, from a single workstation
  • Work with multimedia applications such as 4K video and photo editing
  • Operate multiple computers in manufacturing lines
  • Install in your server room, for multi-computer access
  • Perform high-resolution tasks such as graphic design or CAD drawing
