StarTech.com 2 Port Flush Mount ExpressCard 54mm SuperSpeed USB 3.0 Card Adapter UASP - Dual Port Laptop ExpressCard USB 3 Controller (ECUSB3S254F) USB-adapter USB SuperSpeed USB 3.0 USB 2.0
StarTech.com 2 Port Flush Mount ExpressCard 54mm SuperSpeed USB 3.0 Card Adapter with UASP - Dual Port Laptop ExpressCard USB 3 Controller (ECUSB3S254F) - USB-adapter - ExpressCard - USB 3.0 x 2 - for P/N: S2510BU33PW, S251BMU3FP, S251BU31315, S3540BU33E, SM2NGFFMBU33, UNI251BMU33
593,00SEK474,40SEK excl. VAT
-
Product no 988492652
Model ECUSB3S254F
Brand StarTech.com
EAN 0065030843577
Weight 0.1 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | StarTech.com 2 Port Flush Mount ExpressCard 54mm SuperSpeed USB 3.0 Card Adapter with UASP - Dual Port Laptop ExpressCard USB 3 Controller (ECUSB3S254F) - USB-adapter - ExpressCard - USB 3.0 x 2 |
| Enhedstype | USB-adapter |
| Model | Indstiksmodul |
| Grænseflade (bus) type | ExpressCard/34 |
| Porte | USB 3.0 x 2 |
| Dimensioner (B x D x H) | 7.4 cm x 5.4 cm x 0.5 cm |
| Vægt | 24 g |
| Dataforbindelsesprotokol | USB, USB 2.0, USB 3.0 |
| Dataoverførselshastighed | 5 Gbps |
| Processor | 1 x NEC µPD720200 |
| Overensstemmelsesstandarder | USB 1.1, USB 2.0, USB 3.0 |
| Systemkrav | Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2003 (32/64-bits), Windows 8 (32/64 bit), Windows 10 (32/64 bits) |
| Producentgaranti | 1 års garanti |
| Designet for | P/N: S2510BMU33, S2510BPU33, S2510BPU337, S2510BU33PW, S251BMU3FP, S251BU31315, S3510BMU33, S3510SMU33, S3540BU33E, SM2NGFFMBU33, ST7300USB3B, UNI251BMU33, USB31000NDS, USB31000S, USB31000SW, USB3S2SAT3CB |
| General | |
|---|---|
| Device Type | USB adapter |
| Form Factor | Plug-in module |
| Interface (Bus) Type | ExpressCard/34 |
| Networking | |
| Compliant Standards | USB 1.1, USB 2.0, USB 3.0 |
| Connectivity Technology | Wired |
| Data Link Protocol | USB, USB 2.0, SuperSpeed USB 3.0 |
| Data Transfer Rate | 5 Gbps |
| Ports | USB 3.0 x 2 |
| Processor / Memory | |
| Processor | 1 x NEC µPD720200 |
| Expansion / Connectivity | |
| Compatible Slots | 1 x ExpressCard/34 |
| Interfaces | 2 x USB 3.0 - 9 pin USB Type A |
| Miscellaneous | |
| Compliant Standards | FCC, RoHS |
| Software / System Requirements | |
| OS Required | Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2003 (32/64-bits), Windows 8 (32/64 bits), Windows 10 (32/64 bits) |
| Software Included | Drivers & Utilities |
| Dimensions & Weight | |
| Depth | 5.4 cm |
| Height | 0.5 cm |
| Weight | 24 g |
| Width | 7.4 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Environmental Parameters | |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | 0 °C |
| Compatibility Information | |
| Designed For | P/N: S2510BMU33, S2510BPU33, S2510BPU337, S2510BU33PW, S251BMU3FP, S251BU31315, S3510BMU33, S3510SMU33, S3540BU33E, SM2NGFFMBU33, ST7300USB3B, UNI251BMU33, USB31000NDS, USB31000S, USB31000SW, USB3S2SAT3CB |
Add two flushmount USB 3.0 ports to your ExpressCard-enabled laptop
- Unique flush-mount form factor design
- Two SuperSpeed USB 3.0 compliant ports with support for transfer rates up to 5 Gbps
- UASP support for more efficient data transfer
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)

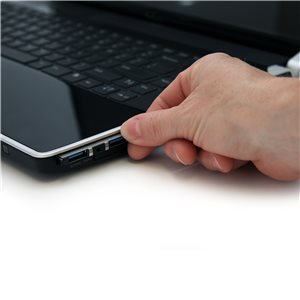

Unique flush-mount form factor design
The USB 3.0 card uses a unique design that allows it to sit flush in a standard 54mm laptop ExpressCard slot, creating a seamless add-on that can be left installed even while on the move, without having to worry about impact damage to either the card or the ExpressCard slot..jpg)

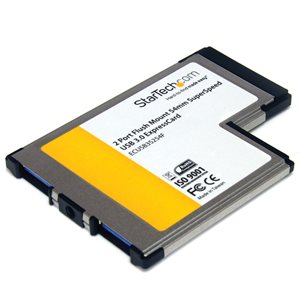

Two SuperSpeed USB 3.0 compliant ports with support for transfer rates up to 5 Gbps
The SuperSpeed USB 3.0 Card supports data transfer rates of up to 5Gbps, and is backward compatible with USB 2.0 (at up to 480Mbps), or USB 1.1/1.0 at up to 1.5/1.2 Mbps respectively - the perfect laptop accessory for users to connect USB devices, both new and old..jpg)

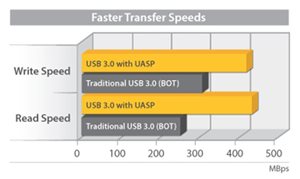

Improved Performance with UASP
UASP is supported in Windows 8, Server 2012 and Linux kernel 2.6.3 or later. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.0 at peak performance. At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.Test results were obtained using an Intel® Ivy Bridge system, StarTech.com add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.
Applications
- Users who need USB connectivity, but do not need to swap between other ExpressCard adapters, so will leave the card installed in the card slot
- Mobile users who want to leave ExpressCard adapters installed, without worry about damaging the card or slot while on the move
- Connect high performance USB 3.0 external storage devices to a laptop
- Upgrade an older laptop with USB 3.0 connectivity
- Expand on your laptop expansion capabilities with additional USB ports
