StarTech.com 2 Port Serial-to-IP Device Server - RS232 - Metal and Mountable - Serial Device Server - RS232 Serial-Over-IP (NETRS2322P) Enhedsserver 2porte Montebar i væggen
StarTech.com 2 Port Serial-to-IP Ethernet Device Server - RS232 - Metal and Mountable - Serial Device Server - RS232 Serial-Over-IP (NETRS2322P) - Enhedsserver - 2 porte - 100Mb LAN, RS-232 - AC 120/230 V / DC 9 - 36 V - i væggen
3 352,00 SEK
2 681,60 SEK excl. VAT
-
Product no 990786198
Model NETRS2322P
Brand StarTech.com
EAN 0065030864145
Weight 0.68 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | StarTech.com 2 Port Serial-to-IP Ethernet Device Server - RS232 - Metal and Mountable - Serial Device Server - RS232 Serial-Over-IP (NETRS2322P) - enhedsserver |
| Enhedstype | Enhedsserver |
| Formfaktor | Montebar i væggen |
| Lokalisering | Australien, Nordamerika, United Kingdom, Europa |
| Antal porte | 2 |
| Dataforbindelsesprotokol | Ethernet, Fast Ethernet, RS-232 |
| Udstyr inkluderet | Strøm terminalblok |
| OS nødvendig | Apple MacOS, Linux, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Vista / 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Microsoft Windows Server 2019 |
| Effekt | AC 120/230 V / DC 9 - 36 V |
| Overskudsspænding | Ja |
| Dimensioner (B x D x H) | 8 cm x 11.3 cm x 2.5 cm |
| Vægt | 310 g |
| Producentgaranti | 2 års garanti |
| General | |
|---|---|
| Depth | 11.3 cm |
| Device Type | Device server |
| Enclosure Color | Black |
| Height | 2.5 cm |
| Localization | Australia, North America, United Kingdom, Europe |
| Weight | 310 g |
| Width | 8 cm |
| Networking | |
| Compliant Standards | IEEE 802.3, IEEE 802.3u |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, RS-232 |
| Data Transfer Rate | 460.8 Kbps |
| Features | Full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), 15 KV Electrostatic Discharge Protection, reset button, 8 KV Contact Electrostatic Discharge Protection |
| Form Factor | In-wall mountable |
| Network / Transport Protocol | TCP/IP, UDP/IP, ICMP/IP, BOOTP, DHCP |
| Ports Qty | 2 |
| Remote Management Protocol | Telnet |
| Status Indicators | Status, LAN, link/activity |
| Expansion / Connectivity | |
| Interfaces | 2 x RS-232 - DB-9 | 1 x 100Base-TX - RJ-45 |
| Miscellaneous | |
| Compliant Standards | FCC, RoHS, WEEE, RCM |
| Included Accessories | Power terminal block |
| Power | |
| Power Device | External power adapter |
| Power Redundancy | Yes |
| Voltage Required | AC 120/230 V / DC 9 - 36 V |
| Software / System Requirements | |
| OS Required | Apple MacOS, Linux, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Vista / 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Microsoft Windows Server 2019 |
| Software Included | Drivers & Utilities, Virtual COM software (Windows only) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | 0 °C |

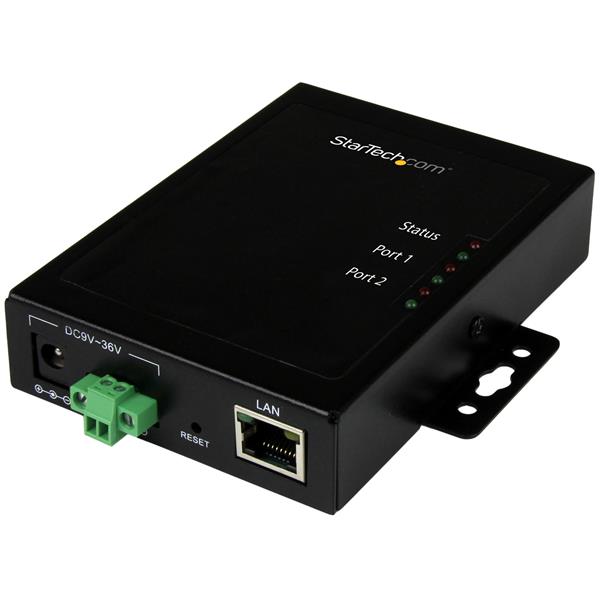

Connect, configure and manage two remote RS232 serial devices, over an IP network
- Two RS232 (DB9) serial ports, integrated into a durable, metal housing that’s ideal for industrial environments
- Built-in mounting brackets let you easily install the device server to a wall or surface
- Redundant power input using the provided power adapter, or 9~36V DC terminal block input
- Extended operating temperature range — 0°C to 85°C (32°F to 185°F)
- Up to 460.8Kbps serial baud rate
- Remote management and customization using the provided Windows based VCOM software or the Web interface
- Supports Telnet, ICMP, IP, TCP, UDP, DHCP and BOOTP protocols
- 15kV Air and 8kV contact ESD (Electrostatic Discharge) Protection
- 10/100Mbps RJ45 port that supports IEEE 802.3 (10BASE-T) and IEEE 802.3u (100BASE-TX) protocols
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)

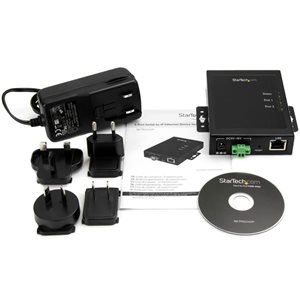

Flexible installation, in a range of environments
If you’re looking for a reliable serial-over-IP control solution, then this device server can help. With a rugged metal housing and an extended operating temperature range, you can rest assured that the device server can deliver the reliable performance you need, even in harsh environments.
Plus, it features two integrated mounting brackets, so you can mount the device server to a surface or a wall as needed, for out-of-the-way installations.
.jpg)
Backup power keeps your devices connected
With redundant power input, this dual-port serial device server ensures seamless operation, even in the event of power dips or failures. It features a wide-range, terminal block power input (9~36V DC), and includes a universal power adapter.
Because it features two power inputs, if you experience a power disruption the device server automatically switches to its secondary power source. With redundant power input, the device server remains operational if one of the power sources fails, so you can continue to connect to and manage your serial devices when needed.
.jpg)

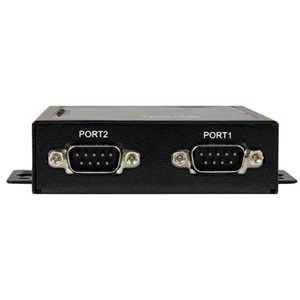

Completely customizable
This highly customizable device server is easy to configure to suit your application. For easy setup, Windows® users can use the provided Virtual COM port software, or the versatile Web-based interface.
The RS232 device server supports Telnet (an operating system independent communication protocol), so it can be integrated into mixed OS environments (Windows, Mac, Linux®). Plus, it supports VCOM, TCP, ICMP, IP, TCP, UDP, DHCP, and BOOTP protocols.
The NETRS2322P is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Applications
- Integrate into industrial, warehouse, or factory environments that are subject to harsh conditions and large temperature variances
- Fasten to a wall or desk, using the integrated mounting brackets
- Ideal for settings where critical equipment requires continuous power, with two power inputs
- Use with CNC machinery and process control equipment, as well as environmental control, and point-of-sale (POS) devices
