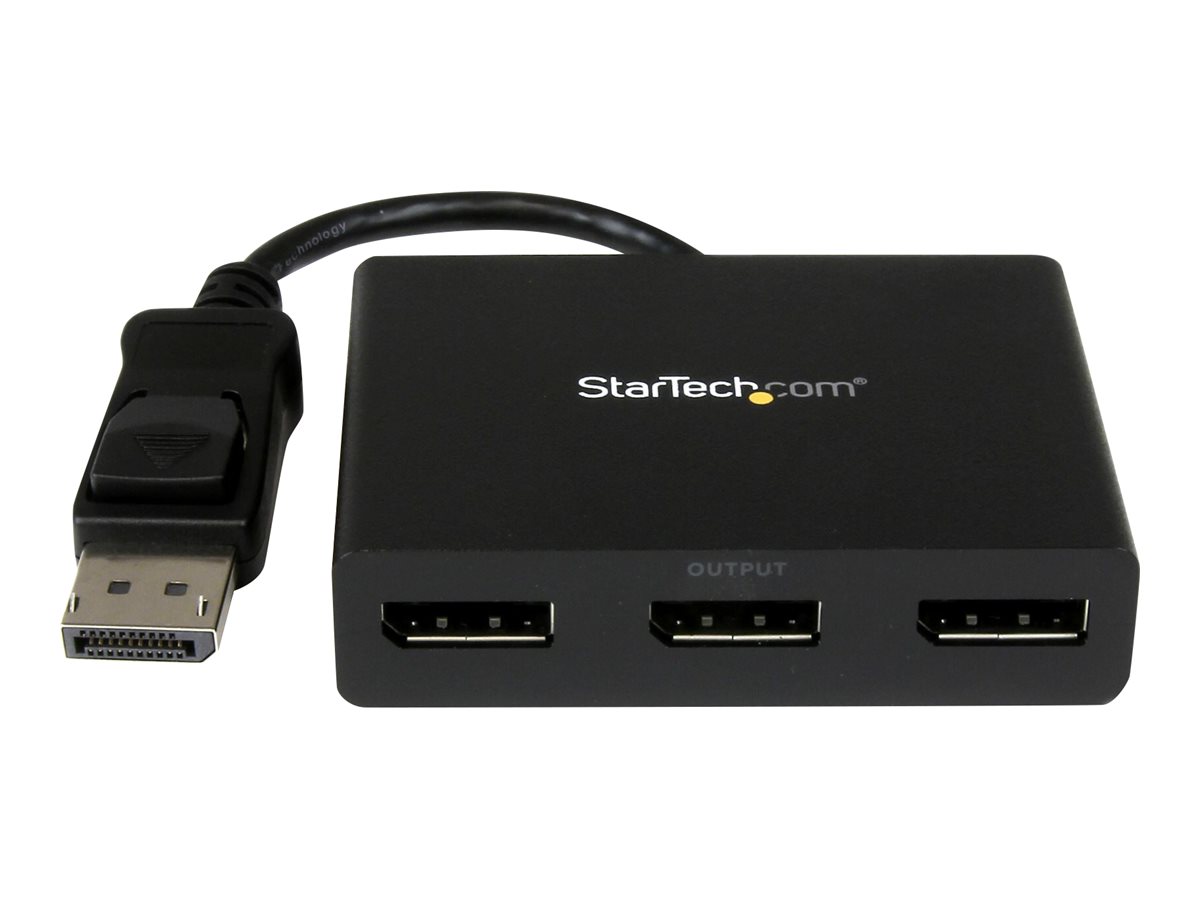

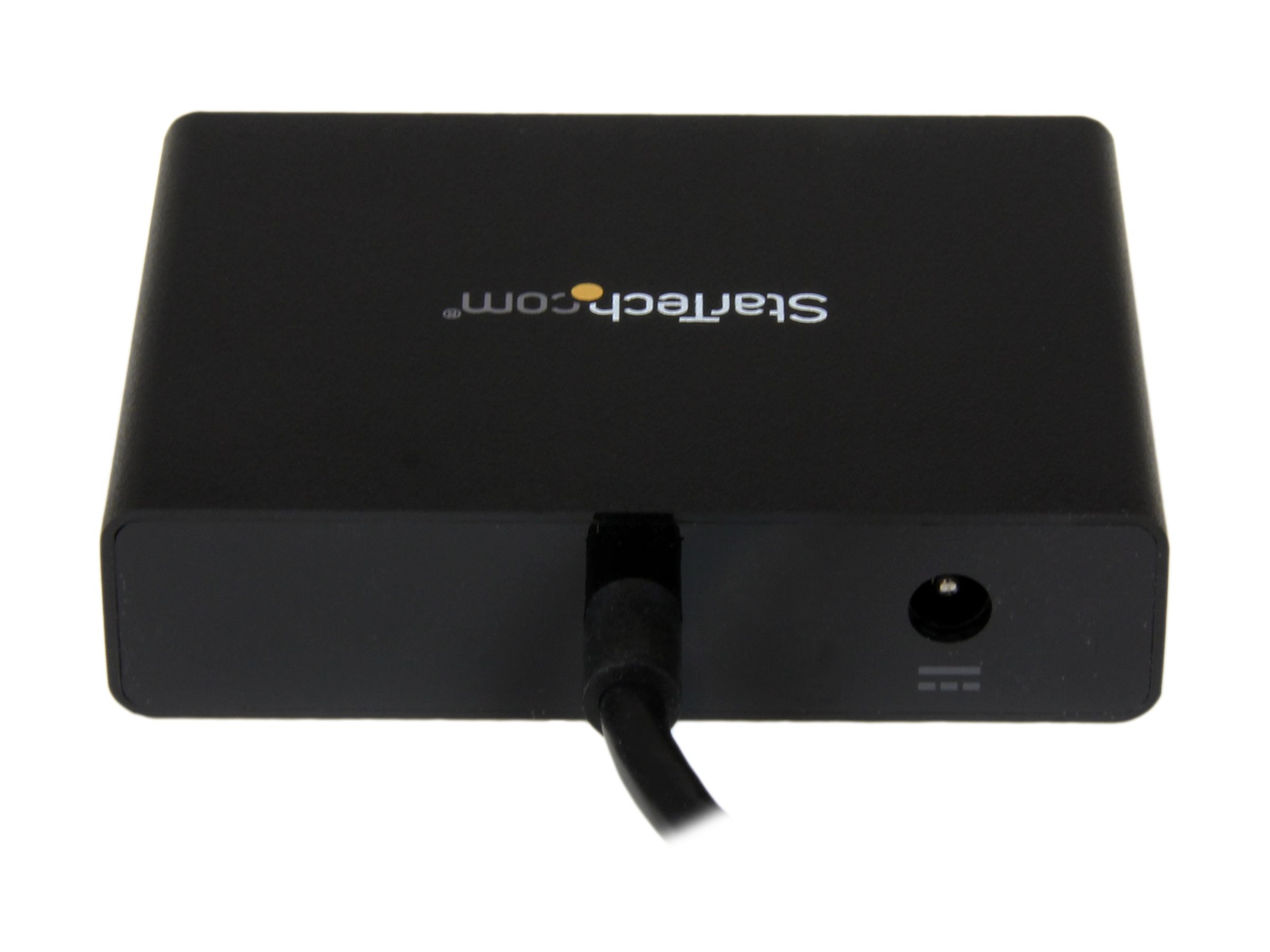

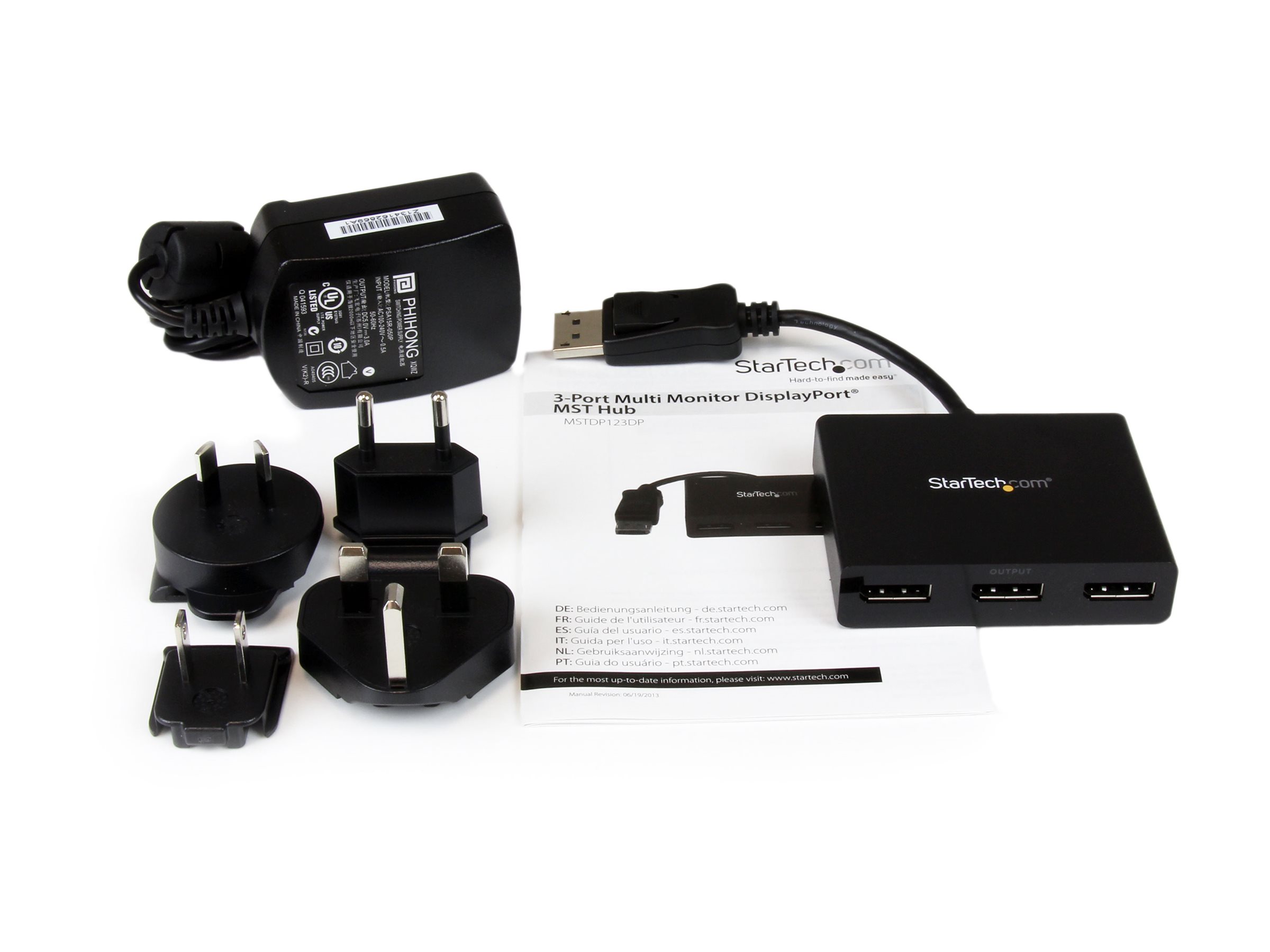

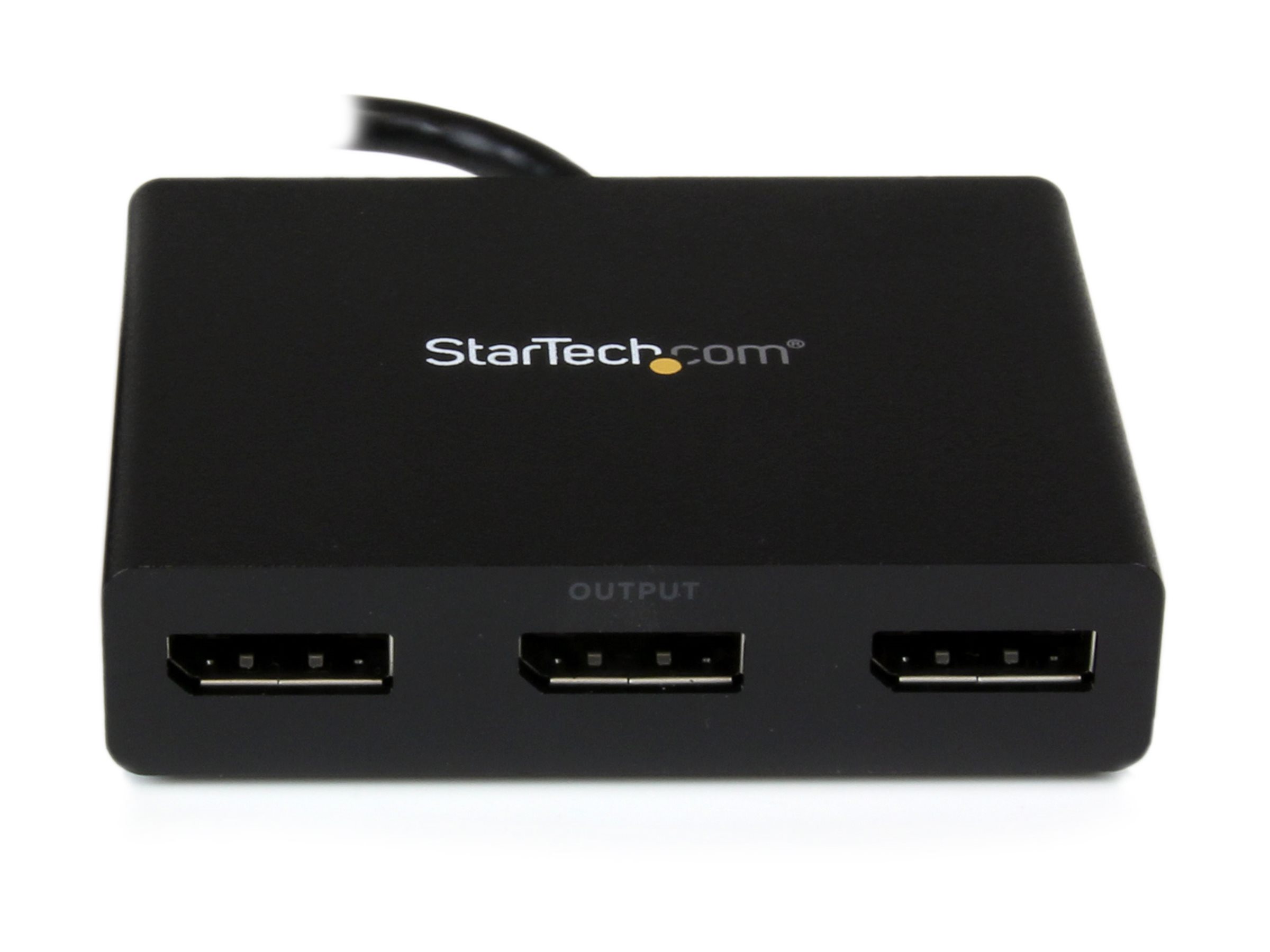

StarTech.com 3 Port DisplayPort MST Hub - 4K 30Hz - DisplayPort to DisplayPort Multi Monitor Splitter for 3 DP Monitor Setup (MSTDP123DP) Videosplitter

StarTech.com 3-Port Multi Monitor Adapter, DisplayPort 1.2 MST Hub, Dual 4K 30Hz & 1x 1080p, Video Splitter for Extended Desktop Mode on Windows PCs Only, DP to 3x DP Monitors MST Hub - Multi Stream Transport (MSTDP123DP) - Videosplitter - desktop - AC 100/230 V - for P/N: SV231DPU34K, SVA5N3NEUA

695,00 SEK 556,00 SEK excl. VAT

  • Product no 988493533

    Model MSTDP123DP

    Brand StarTech.com

    EAN 0065030851886

    Weight 0.43 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse StarTech.com 3-Port Multi Monitor Adapter, DisplayPort 1.2 MST Hub, Dual 4K 30Hz & 1x 1080p, Video Splitter for Extended Desktop Mode on Windows PCs Only, DP to 3x DP Monitors MST Hub - Multi Stream Transport (MSTDP123DP) - videosplitter - 3 porte
Enhedstype Videosplitter - 3 porte
Egenskaber Plastisk husning
Effekt AC 100/230 V
Dimensioner (B x D x H) 7.8 cm x 38.6 cm x 2 cm
Vægt 99 g
Farve Sort
Producentgaranti 3 års garanti
Designet for P/N: SV231DPU34K, SVA5N3NEUA
General
Device Type Video splitter - 3 ports
Enclosure Type Desktop
Features Plastic housing
Max Resolution 2560 x 1600
Expansion / Connectivity
Interfaces 3 x DisplayPort | 1 x DisplayPort
Power
Power Device External power adapter
Voltage Required AC 100/230 V
Miscellaneous
Color Black
Compliant Standards FCC, RoHS
Dimensions & Weight
Depth 38.6 cm
Height 2 cm
Weight 99 g
Width 7.8 cm
Dimensions & Weight (Shipping)
Shipping Depth 15.5 cm
Shipping Height 5.5 cm
Shipping Weight 409 g
Shipping Width 22.9 cm
Manufacturer Warranty
Service & Support Limited warranty - 3 years
Environmental Parameters
Max Operating Temperature 45 °C
Max Storage Temperature 70 °C
Min Operating Temperature 0 °C
Min Storage Temperature -20 °C
Compatibility Information
Designed For P/N: SV231DPU34K, SVA5N3NEUA

Use this adapter to connect three independent displays to a single DP 1.2 port

  • Maximize your productivity by connecting up to three independent displays to your computer using the MST Hub
  • Connect to almost any television, monitor or projector with the support of low-cost adapters
  • Increase external video performance with support for resolutions up to 4K
  • VESA and DisplayPort certified
  • Compatible with DP 1.2 Graphics cards such as AMD Radeon with Eyefinity Technology
  • Plug-and-play installation
  • Newly engineered chipset for increased compatibility
Use this adapter to connect three independent displays to a single DP 1.2 port
slide {0} of {1}, zoom in, Use this adapter to connect three independent displays to a single DP 1.2 port2:20
slide {0} of {1}, zoom in, Use this adapter to connect three independent displays to a single DP 1.2 port
slide {0} of {1}, zoom in, Use this adapter to connect three independent displays to a single DP 1.2 port
slide {0} of {1}, zoom in, Use this adapter to connect three independent displays to a single DP 1.2 port
slide {0} of {1}, zoom in, Use this adapter to connect three independent displays to a single DP 1.2 port
slide {0} of {1}, zoom in, Use this adapter to connect three independent displays to a single DP 1.2 port
slide {0} of {1}, zoom in, Use this adapter to connect three independent displays to a single DP 1.2 port
slide {0} of {1}, zoom in, Use this adapter to connect three independent displays to a single DP 1.2 port
slide {0} of {1}, zoom in, Use this adapter to connect three independent displays to a single DP 1.2 port
slide {0} of {1}, zoom in, Use this adapter to connect three independent displays to a single DP 1.2 port

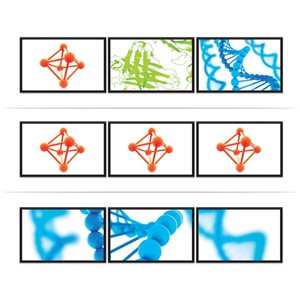

Increase productivity with multiple screens

Increase productivity with multiple screens

The newest generations of computers are more portable than ever, which often means that you’re left with fewer video outputs and smaller integrated screens. This MST hub solves both of these problems by letting you connect three additional displays to your computer, which makes multitasking much easier.

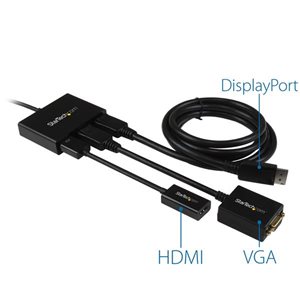

Connect to any display

Connect to any display

With the MST hub, you can use DisplayPort video adapters and cable adapters that enable you to connect HDMI, VGA or DVI displays. This ensures your MST hub will be compatible with virtually any television, monitor or projector. This MST hub is VESA and DisplayPort certified to support DP 1.2 enabled systems, for seamless integration with your existing video equipment.
Configure your displays for any environment

Configure your displays for any environment

Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display giving you the freedom to multitask and increase your productivity. You can also mirror the same image onto multiple displays for remote viewing applications such as digital signage.

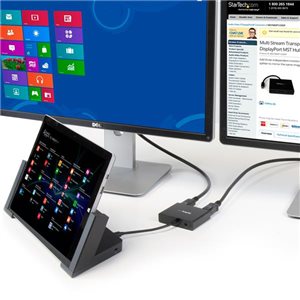

Enjoy amazing video quality, without draining system resources

Enjoy amazing video quality, without draining system resources

MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. This unprecedented performance makes MST perfect for high-resolution applications such as graphic design, gaming and medical imaging.

Please Note:

When using a DisplayPort 1.1 video card the MSTDP123DP will act as a splitter, automatically mirroring your video source across all displays. Resolution limitations apply.

MST shares 10.2 Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports.

Average Resolution Bandwidth Allocation

1920x1080 (High-definition 1080p) @60hz – 22%
1920x1200 @60hz – 30%
2560x1440 @60hz – 35%
2560x1600 @60hz – 38%
3840 x 2160 (Ultra HD 4K) @30hz – 38%

Note: Exceeding 100% will reduce functionality.

The MSTDP123DP supports plug-and-play installation for a hassle-free setup, and is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Applications

  • Use one screen for reference data such as websites, while composing in another screen
  • Dock your DP 1.2 device and add three high-resolution displays at your workstation
  • Create a panoramic video wall for DisplayPort digital signage applications
  • Edit images, video or audio clips across three displays in any orientation or resolution
  • Perfect for spanning a spreadsheet/worksheet across all three displays, to avoid side-scrolling
  • Enjoy the panoramic views built into games and display helpful codes/walk-through data on a third display, at the same time
    • Use this adapter to connect three independent displays to a single DP 1.2 port
