StarTech.com 3-port M.2 SSD (NGFF) Adapter Card - Supports 1x PCIe (NVMe) M.2 SSD, 2x SATA III M.2 SSDs - PCIe 3.0 Adapter (PEXM2SAT32N1) Interfaceadapter

StarTech.com 3-port M.2 SSD (NGFF) Adapter Card - Supports 1x PCIe (NVMe) M.2 SSD, 2x SATA III M.2 SSDs - PCIe 3.0 Adapter (PEXM2SAT32N1) - Interfaceadapter - M.2 - M.2 Card / SATA 6Gb/s - PCIe 3.0

440,00 SEK 352,00 SEK excl. VAT

  • Product no 991637360

    Model PEXM2SAT32N1

    Brand StarTech.com

    EAN 0065030865708

    Weight 0.12 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse StarTech.com 3-port M.2 SSD (NGFF) Adapter Card - Supports 1x PCIe (NVMe) M.2 SSD, 2x SATA III M.2 SSDs - PCIe 3.0 Adapter (PEXM2SAT32N1) - interfaceadapter - M.2 Card / SATA 6Gb/s - PCIe 3.0
Enhedstype Interfaceadapter - intern
Bustype PCIe 3.0
Kompatibel bås 1
Harddiskens formfaktorkompatibilitet M.2
Interface M.2 Card / SATA 6Gb/s
Dataoverførselshastighed 6 Gbit/s
Understøttede enheder Solid state drev
Dimensioner (B x D x H) 2 cm x 10 cm x 12 cm
Vægt 100 g
Producentgaranti 2 års garanti
General
Device Type Interface adapter - internal
Hard Drive Form Factor Compatibility M.2
Host Bus PCIe 3.0
Storage Controller
Data Transfer Rate 6 Gbit/s
Interface M.2 Card / SATA 6Gb/s
Supported Devices Solid state drive
Expansion / Connectivity
Compatible Bay 1 x internal
Connections 2 x SATA 6Gb/s - 7 pin Serial ATA
Interfaces 3 x M.2 Card - M.2 Card
Miscellaneous
Compliant Standards FCC, RoHS, RCM
Features Supports ATA/ATAPI packet command set
Included Accessories Low-profile bracket, screwdriver, M.2 screws
MTBF 50,000 hours
Manufacturer Warranty
Service & Support Limited warranty - 2 years
Dimensions & Weight
Depth 10 cm
Height 12 cm
Weight 100 g
Width 2 cm
Environmental Parameters
Humidity Range Operating 20 - 80% (non-condensing)
Max Operating Temperature 50 °C
Min Operating Temperature 5 °C

Mount both PCIe (NVMe) and SATA based M.2 SSDs inside your computer using this PCI Express adapter card

  • Expand the storage and improve the performance of your computer, with slots for two M.2 SATA SSDs and one M.2 PCIe SSD
  • Supports PCI Express 3.0 (x4), ideal for a high-performance M.2 PCIe SSD (NVMe)
  • SATA slots feature a passthrough design, so your drives can connect to the SATA ports on your host PC
  • Fullbandwidth is available for each M.2 drive simultaneously (up to approximately 40Gbps for M.2 PCIe drives, and up to 6Gbps for M.2 SATA III drives)
  • Wide installation compatibility, with support for a range of M.2 drives (2280, 2260, 2242, 2230)
  • Adjustable stand-offs and multiple mounting holes support 80 mm, 60 mm, 42 mm, and 30 mm SSDs
  • OS independent with no drivers required, for a fast, hassle-free setup
  • Equippedwith a full-profile bracket, includes a low-profile (half-height bracket) for installation in small form-factor computers
  • Installs into x4, x8, or x16 PCIe slots
Mount both PCIe (NVMe) and SATA based M.2 SSDs inside your computer using this PCI Express adapter card
slide {0} of {1}, zoom in, Mount both PCIe (NVMe) and SATA based M.2 SSDs inside your computer using this PCI Express adapter card
slide {0} of {1}, zoom in, Mount both PCIe (NVMe) and SATA based M.2 SSDs inside your computer using this PCI Express adapter card
slide {0} of {1}, zoom in, Mount both PCIe (NVMe) and SATA based M.2 SSDs inside your computer using this PCI Express adapter card
slide {0} of {1}, zoom in, Mount both PCIe (NVMe) and SATA based M.2 SSDs inside your computer using this PCI Express adapter card
slide {0} of {1}, zoom in, Mount both PCIe (NVMe) and SATA based M.2 SSDs inside your computer using this PCI Express adapter card
slide {0} of {1}, zoom in, Mount both PCIe (NVMe) and SATA based M.2 SSDs inside your computer using this PCI Express adapter card
Increase the storage of your desktop PC

Increase the storage of your desktop PC

If you need a simple and discreet way to expand your computer’s storage, then this card can help. The card provides a platform for adding up to three M.2 SSDs to virtually any computer that has a PCIe slot. It supports common M.2 SATA SSDs, as well as newer high-performance M.2 PCIe drives. Now, you have a simple and effective way to expand the storage of your computer, regardless of the M.2 drive types you are using.

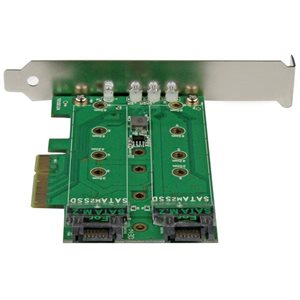

Optimize your computer’s performance

Optimize your computer’s performance

When you couple this card with a PCI Express based M.2 drive, you can give your computer’s performance a noticeable speed boost. With support for PCI Express 3.0 (up to approximately 40Gbps), you can install the latest high-performance M.2 PCIe SSDs inside your computer. With faster performance, you can get more work done in less time.

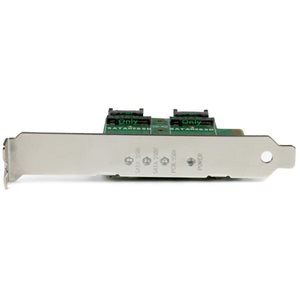

Peace of mind, with simple and cost-effective data recovery

Peace of mind, with simple and cost-effective data recovery

Due to their performance and size advantages, M.2 drives are commonlyused in laptops. If your laptop has failed, but its M.2 drive is still functional, then this card can help with data recovery. Once the M.2 drive is installed and the data recovery is complete, you can continue to use the drive for storage and backup purposes.

Applications

  • Increase the internal storage capacity of your standard or small form-factor computer
  • Access and recover data from almost any M.2 SSD, such as drives pulled from laptops and other computers
  • Optimize your system for I/O intensive applications such as office suites, photo and video editing, and media players
  • Install the card as a vital hardware component when upgrading or building your computer
Mount both PCIe (NVMe) and SATA based M.2 SSDs inside your computer using this PCI Express adapter card
