StarTech.com 330 ft. (100 m) HDMI Over Cat6 Extender - HDMI over CAT5 - HDBaseT Extender - 4K30 - HDMI Video Extender (ST121HDBTPW) Video/audio ekspander

StarTech.com 330 ft. (100 m) HDMI Over CAT5e / CAT6 Extender - HDMI over CAT5e - HDBaseT Extender - 4K30 - HDMI Video Extender (ST121HDBTPW) - Video/audio ekspander - over CAT 5e/6 - op til 100 m - for P/N: ST121HDBTRP, SVA12M2NEUA, SVA12M5NA

4 499,00 SEK 3 599,20 SEK excl. VAT

  • Product no 988493487

    Model ST121HDBTPW

    Brand StarTech.com

    EAN 0065030854177

    Weight 1.14 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse StarTech.com 330 ft. (100 m) HDMI Over CAT5e / CAT6 Extender - HDMI over CAT5e - HDBaseT Extender - 4K30 - HDMI Video Extender (ST121HDBTPW) - video/audio ekspander
Enhedstype Video/audio ekspander
Model Ekstern
Transmissionsmedie CAT 5e/6
Maks. overføringsafstand 100 m
Effekt AC 120/230 V
Dimensioner (B x D x H) 6.7 cm x 8 cm x 2.5 cm
Vægt 310 g
Producentgaranti 2 års garanti
Designet for P/N: ST121HDBTRP, SVA12M2NEUA, SVA12M5NA
General
Color Black
Device Type Video/audio extender
Form Factor External
Networking
Connectivity Technology Wired
Features 7.1 channel audio support
Max Resolution 3840 x 2160
Max Transfer Distance 100 m
Expansion / Connectivity
Interfaces 1 x HDMI
Miscellaneous
Compliant Standards FCC, RoHS
Power
Power Device External power adapter
Voltage Required AC 120/230 V
Dimensions & Weight
Depth 8 cm
Height 2.5 cm
Weight 310 g
Width 6.7 cm
Manufacturer Warranty
Service & Support Limited warranty - 2 years
Environmental Parameters
Humidity Range Operating 0 - 80% (non-condensing)
Max Operating Temperature 40 °C
Min Operating Temperature 0 °C
Compatibility Information
Designed For P/N: ST121HDBTRP, SVA12M2NEUA, SVA12M5NA

StarTech.com HDMI over CAT5 HDBaseT Extender Kit - 4K - 330 ft

  • Extend video where power outlets are limited with HDBaseT offering power over cable that powers both the transmitter and receiver using a single power source at either side of the connection
  • Maintains astonishing picture quality up to 115 ft. (35 m) away, with support for UltraHD 4K over non-proprietary CAT5e or CAT6 cabling
  • Also supports HD video resolutions such as 1920x1200 or 1080p at distances up to 330 ft. (100m)
  • Extend HDMI, and Power over Cable all through one Cat5e or CAT6 cable with HDBaseT
  • Hassle-free, professional installation with included mounting brackets, and full video extension existing infrastructure
  • HDMI transmitter and receiver included
  • No software or drivers required
  • Dolby® TrueHD, DTS-HD MA Audio
  • 100m (330ft) maximum Cat5 cable distance
StarTech.com HDMI over CAT5 HDBaseT Extender Kit - 4K - 330 ft
slide {0} of {1}, zoom in, StarTech.com HDMI over CAT5 HDBaseT Extender Kit - 4K - 330 ft
slide {0} of {1}, zoom in, StarTech.com HDMI over CAT5 HDBaseT Extender Kit - 4K - 330 ft
slide {0} of {1}, zoom in, StarTech.com HDMI over CAT5 HDBaseT Extender Kit - 4K - 330 ft
slide {0} of {1}, zoom in, StarTech.com HDMI over CAT5 HDBaseT Extender Kit - 4K - 330 ft
What is HDBaseT?

What is HDBaseT?

HDBaseT is a standardized, zero latency, video distribution technology that’s revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that enables you to distribute uncompressed HDMI audio and video, along with additional signals such as 100BaseT Ethernet, IR, RS-232 serial and power over cable.

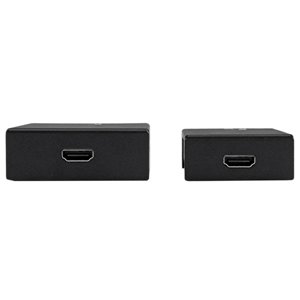

Extend More than Video with HDBaseT

Extend More than Video with HDBaseT

For greater versatility than a traditional HDMI extender or HDMI cabling alone, this HDBaseT extender offers HDMI + Power Over Cable in a single kit. The added benefit of power over cable means you’ll only need one power source at either side of your extension, great for extending to areas where power outlets may be limited.

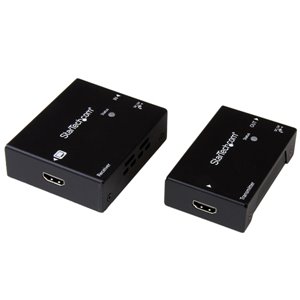

Astonishing 4K picture quality from an impressive distance

Astonishing 4K picture quality from an impressive distance

With the A/V industry quickly adopting 4K as the new high-resolution video standard, long range video distribution can be a challenge with standard HDMI cables beginning signal degradation at 30 feet. With support for 4K you’ll be amazed at how HDBaseT maintains your Ultra HD picture quality, four times the resolution of high-definition 1080p, even at 130 feet away from your video source. Plus, because the extender supports High-Definition 1080p and lower resolutions at 330 feet away, you can comfortably use this extender to make any video source look great.

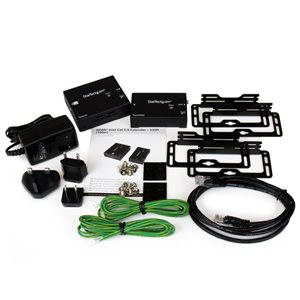

Hassle-free, Professional Installation with a Single Cable

Hassle-free, Professional Installation with a Single Cable

This extender has been specially crafted for a smooth, tidy setup. HDBaseT technology allows for single cable installation, for seamless integration using existing CAT5e or CAT6 infrastructure, avoiding the hassle of running multiple cables, while reducing potential failure points. Plus, the added benefit of power over cable means you’ll only need one power source to power both your extender and receiver, great for extending to areas where power outlets may be limited. Mounting hardware is also included for both the extender and receiver for discrete, professional mounting.

Applications

  • Extend HDMI to locations where power outlets are limited
  • Place the display in a convenient viewing area, while the system equipment is placed elsewhere in a clean and secure environment
  • Optimize placement of your demo stations at tradeshows and in auditoriums
