StarTech.com 4 Port Midspan - Injector - 802.3at and 802.3af - Wall-mountable Power over Midspan (POEINJ4G) Strøminjektor Ekstern Sort

StarTech.com 4 Port Gigabit Midspan - PoE+ Injector - 802.3at and 802.3af - Wall-mountable Power over Ethernet Midspan (POEINJ4G) - Strøminjektor - AC 100-240 V - 120 Watt - output-stikforbindelser: 4 - sort - for P/N: POEEXT1GAT, POEEXT2GAT, ST12MHDLANU

2 231,00 SEK 1 784,80 SEK excl. VAT

  • Product no 989748445

    Model POEINJ4G

    Brand StarTech.com

    EAN 0065030859752

    Weight 1.65 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse StarTech.com 4 Port Gigabit Midspan - PoE+ Injector - 802.3at and 802.3af - Wall-mountable Power over Ethernet Midspan (POEINJ4G) - strøminjektor - 120 Watt
Enhedstype Strøminjektor - ekstern
Power Over Ethernet (PoE) PoE+
Vægt 220 g
Indgangspænding AC 100-240 V
Strømkapacitet 120 Watt
Farve Sort
Dimensioner (B x D x H) 9.7 cm x 7 cm x 2.6 cm
Producentgaranti 2 års garanti
Designet for P/N: POEEXT1GAT, POEEXT2GAT, ST12MHDLANU
General
Color Black
Device Type PoE injector - external
Power Over Ethernet (PoE) PoE+ (IEEE 802.3at)
Power Device
Input Voltage AC 100-240 V
Power Capacity 120 Watt
Expansion / Connectivity
Interfaces 4 x Gigabit LAN - RJ-45
Miscellaneous
Cables Included 3 x power cable
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, FCC, RoHS
Features Wall mountable, metal housing
MTBF 50,000 hours
Manufacturer Warranty
Service & Support Limited warranty - 2 years
Environmental Parameters
Humidity Range Operating 5 - 90% (non-condensing)
Max Operating Temperature 50 °C
Min Operating Temperature 0 °C
Dimensions & Weight
Depth 7 cm
Height 2.6 cm
Weight 220 g
Width 9.7 cm
Compatibility Information
Designed For P/N: POEEXT1GAT, POEEXT2GAT, ST12MHDLANU

Deliver power and data to four Power over Ethernet devices using this wall-mountable PoE+ midspan hub

  • Easily connect, power, and operate up to four Gigabit PoE-powered devices (PD)
  • Delivers full power to each port — up to 30.8 watts (802.3at) or 15.4 watts (802.3af) to each connected device
  • Flexible setup, with a desktop-sized, or wall-mountable metal housing
Deliver power and data to four Power over Ethernet devices using this wall-mountable PoE+ midspan hub
slide {0} of {1}, zoom in, Deliver power and data to four Power over Ethernet devices using this wall-mountable PoE+ midspan hub
slide {0} of {1}, zoom in, Deliver power and data to four Power over Ethernet devices using this wall-mountable PoE+ midspan hub
slide {0} of {1}, zoom in, Deliver power and data to four Power over Ethernet devices using this wall-mountable PoE+ midspan hub
slide {0} of {1}, zoom in, Deliver power and data to four Power over Ethernet devices using this wall-mountable PoE+ midspan hub
slide {0} of {1}, zoom in, Deliver power and data to four Power over Ethernet devices using this wall-mountable PoE+ midspan hub
slide {0} of {1}, zoom in, Deliver power and data to four Power over Ethernet devices using this wall-mountable PoE+ midspan hub
slide {0} of {1}, zoom in, Deliver power and data to four Power over Ethernet devices using this wall-mountable PoE+ midspan hub
slide {0} of {1}, zoom in, Deliver power and data to four Power over Ethernet devices using this wall-mountable PoE+ midspan hub
More power, with less cost and hassle

More power, with less cost and hassle

This versatile midspan PoE+ injector is suited for almost all PoE device classes, including wireless access points, as well as IP phones and cameras. The high-power PoE+ injector offers 120W total power distribution and delivers full power — up to 30.8W — from each port. Now, you can easily scale and power your PoE+ devices across long distances, even in remote locations where a typical power outlet is unavailable.

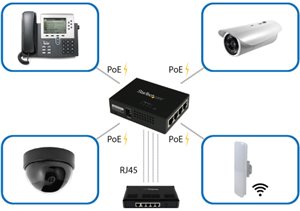

Easy to set up in mixed environments

Easy to set up in mixed environments

This injector is the perfect solution for a variety of environments. It features a wall-mountable rugged metal casing, but is palm-sized making it perfect for desktop placement too.

With plug-and-play operation, you can enjoy fast and hassle-free setup without disrupting your workflow.
Convenient, protected connections

Convenient, protected connections

Not sure which class your PoE devices are? The Gigabit midspan PoE+ injector automatically detects the power requirements of your PoE PDs, and delivers the appropriate level of power without damaging your devices.

With integrated circuit protection between each port, your devices are also protected from power interference.

Applications

  • Ideal for high-power PoE+ devices requiring Gigabit speeds such as PTZ (Pan, Tilt, Zoom) cameras and Wi-Fi® access points (WAP)
  • Enable remote installation of touchscreens, information kiosks, and phones in locations where a power connection is not available
  • Perfect for SOHO, SMB, system integrators, and IT administrators
