StarTech.com 7-Port USB 3.0 Hub - Metal Industrial USB-A Hub with ESD Protection & 350W Surge Protection - Din Rail, Wall or Desk Mountable - TAA Compliant USB Expander Hub (ST7300USBME) Sort

StarTech.com 7-Port USB 3.0 Hub - Metal Industrial USB-A Hub with ESD Protection & 350W Surge Protection - Din Rail, Wall or Desk Mountable - TAA Compliant USB Expander Hub (ST7300USBME) - Hub - 7 x SuperSpeed USB 3.0 - DIN monterbar på skinne, væg-monterbar - DC strøm - for P/N: ITB20D3250, USB312SAT3CB, USB315CB2M, USBLT1MWS, USBLT2MBR, USBLTM1MBK, USBLTM1MWH

1 636,00 SEK 1 308,80 SEK excl. VAT

  • Product no 989728560

    Model ST7300USBME

    Brand StarTech.com

    EAN 0065030860352

    Weight 0.63 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse StarTech.com 7-Port USB 3.0 Hub - Metal Industrial USB-A Hub with ESD Protection & 350W Surge Protection - Din Rail, Wall or Desk Mountable - TAA Compliant USB Expander Hub (ST7300USBME) - hub - 7 porte
Enhedstype Hub - 7 porte
Undertype USB
Porte 7 x SuperSpeed USB 3.0
Egenskaber Strømstødsbeskyttelse, grov, 15KV ESD Protector, metalkabinet
Overensstemmelsesstandarder USB 1.1, USB 2.0, USB 3.0
Effekt DC 7 - 48 V
Dimensioner (B x D x H) 5.5 cm x 12.2 cm x 4.3 cm
Vægt 650 g
Farve Sort
Producentgaranti 2 års garanti
Designet for P/N: ITB20D3250, USB312SAT3CB, USB315CB2M, USBLT1MW, USBLT1MWS, USBLT2MBR, USBLT2MW, USBLT30CMW, USBLTM1MBK, USBLTM1MWH, UUSBHAUB1RA, UUSBHAUB3, UUSBHAUB3LA, UUSBHAUB3RA, UUSBHAUB6IN, UUSBHAUB6RA
General
Compliant Standards USB 1.1, USB 2.0, USB 3.0
Device Type Hub - 7 ports
Enclosure Type DIN rail mountable, wall-mountable
Features Surge protection, rugged, 15KV ESD Protector, metal housing
Ports 7 x SuperSpeed USB 3.0
Processor 1 x Genesys Logic GL3520
Status Indicators Power
Subtype USB
Expansion / Connectivity
Interfaces 7 x USB 3.0 Type A | 1 x USB 3.0 Type B
Power
Voltage Required DC 7 - 48 V
Miscellaneous
Cables Included 1 x SuperSpeed USB cable
Color Black
Compliant Standards FCC, RoHS
Dimensions & Weight
Depth 12.2 cm
Height 4.3 cm
Weight 650 g
Width 5.5 cm
Manufacturer Warranty
Service & Support Limited warranty - 2 years
Environmental Parameters
Humidity Range Operating 5 - 95%
Max Operating Temperature 70 °C
Max Storage Temperature 85 °C
Min Operating Temperature 0 °C
Min Storage Temperature -20 °C
Compatibility Information
Designed For P/N: ITB20D3250, USB312SAT3CB, USB315CB2M, USBLT1MW, USBLT1MWS, USBLT2MBR, USBLT2MW, USBLT30CMW, USBLTM1MBK, USBLTM1MWH, UUSBHAUB1RA, UUSBHAUB3, UUSBHAUB3LA, UUSBHAUB3RA, UUSBHAUB6IN, UUSBHAUB6RA

Add seven USB 3.0 ports with this DIN rail or surface-mountable metal hub

  • Protects your connected devices with 15kV ESD protection and 350 W surge protection
  • Flexible, wide-range 7-48V DC terminal block power input (standard AC power adapter not supported or included)
  • Ideal for harsh industrial environments, with an extended operating temperature range
Add seven USB 3.0 ports with this DIN rail or surface-mountable metal hub
slide {0} of {1}, zoom in, Add seven USB 3.0 ports with this DIN rail or surface-mountable metal hub
slide {0} of {1}, zoom in, Add seven USB 3.0 ports with this DIN rail or surface-mountable metal hub
slide {0} of {1}, zoom in, Add seven USB 3.0 ports with this DIN rail or surface-mountable metal hub
slide {0} of {1}, zoom in, Add seven USB 3.0 ports with this DIN rail or surface-mountable metal hub
slide {0} of {1}, zoom in, Add seven USB 3.0 ports with this DIN rail or surface-mountable metal hub
slide {0} of {1}, zoom in, Add seven USB 3.0 ports with this DIN rail or surface-mountable metal hub

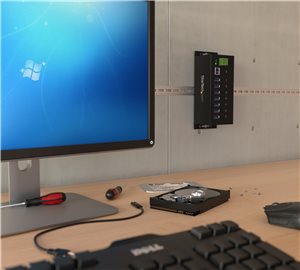

Reliable performance even in tough industrial environments

Reliable performance even in tough industrial environments

Designed for performance and durability, the industrial-grade hub features a rugged, metal housing. Its wide-range 7-48V DC terminal block input gives you the flexibility to power the hub as required, based on your own power input capabilities. Plus, it supports an extended operating temperature range (0°C to 70°C), helping to ensure reliable performance even in the most demanding factory and industrial environments.

The rugged hub also offers surge and ESD protection to each USB port, which can help safeguard your investments by preventing damage to your connected devices.

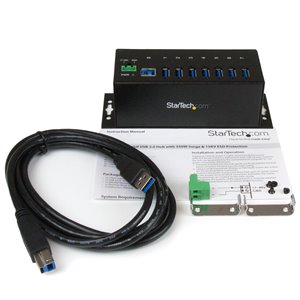

Secure and versatile installation on DIN rails or surfaces

Secure and versatile installation on DIN rails or surfaces

This wall-mountable USB 3.0 hub can be securely mounted to surfaces, under desks, and in other high traffic areas where there is a concern that USB connections may become unplugged. Plus, it also includes optional DIN rail mounts for use with equipment rack installations.

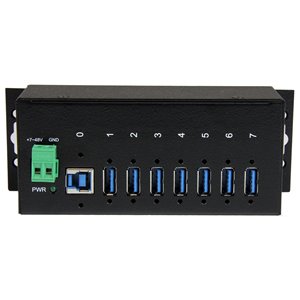

Supports transfer speeds up to 5 Gbps

Supports transfer speeds up to 5 Gbps

Compliant with SuperSpeed USB 3.0, this industrial hub supports 5-Gbps bandwidth. It's also backward compatible with USB 2.0 and 1.x specifications, simultaneously supporting older USB peripherals or legacy systems that lack USB 3.0 capabilities.

Applications

  • Install in harsh environments that are subject to large temperature variances, or where physical damage may occur
  • Deploy on assembly lines where only terminal block power is available
  • Connect industrial printers, cameras, sensor and monitoring equipment, touchscreens, CNC machines and controllers
