StarTech.com Cisco GLC-SX-MM Compatible SFP Module - 1000BASE-SX - 1GE SFP 1GbE Multimode Fiber MMF Optic Transceiver SFP (mini-GBIC) transceiver modul Gigabit Ethernet
StarTech.com Cisco GLC-SX-MM Compatible SFP Module, 1000BASE-SX, 1GbE Multimode Fiber MMF Optic Transceiver, Gigabit Ethernet SFP, LC Connector, 550m, 850nm, Cisco IE3400, IE3300, IE3200 (SFPGLCSXMMST) - SFP (mini-GBIC) transceiver modul - 1GbE - 1000Base-SX - LC multimodus - op til 550 m - 850 nm - for P/N: ET91000SFP2, ET91000SFP2C, IES101002SFP, MCM1110SFP, PEX1000SFP2
459,00 SEK
367,20 SEK excl. VAT
-
Product no 988493159
Model SFPGLCSXMMST
Brand StarTech.com
EAN 0065030849692
Weight 0.05 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | StarTech.com Cisco GLC-SX-MM Compatible SFP Module, 1000BASE-SX, 1GbE Multimode Fiber MMF Optic Transceiver, Gigabit Ethernet SFP, LC Connector, 550m, 850nm, Cisco IE3400, IE3300, IE3200 (SFPGLCSXMMST) - SFP (mini-GBIC) transceiver modul - 1GbE |
| Enhedstype | SFP (mini-GBIC) transceiver modul - LC multimodus |
| Model | Indstiksmodul |
| Kabeltype | 1000Base-SX |
| Dataoverførselshastighed | 1.25 Gbps |
| Optisk bølgelængde | 850 nm |
| Dataforbindelsesprotokol | 1GbE |
| Maks. overføringsafstand | 550 m |
| Dimensioner (B x D x H) | 1.2 cm x 6 cm x 1 cm |
| Vægt | 16 g |
| Producentgaranti | Begrænset livtidsgaranti |
| Designet for | P/N: ET91000SFP2, ET91000SFP2C, IES101002SFP, MCM1110SFP, PEX1000SFP2 |
| General | |
|---|---|
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Networking | |
| Cabling Type | 1000Base-SX |
| Compliant Standards | IEEE 802.3z |
| Connectivity Technology | Wired |
| Data Link Protocol | GigE |
| Data Transfer Rate | 1.25 Gbps |
| Features | Full duplex capability, half duplex mode |
| Max Transfer Distance | 550 m |
| Optical Wave Length | 850 nm |
| Expansion / Connectivity | |
| Compatible Slots | 1 x SFP (mini-GBIC) |
| Interfaces | 1 x Ethernet 1000Base-SX - LC multi-mode x 2 |
| Miscellaneous | |
| Compliant Standards | UL, FCC, RoHS, MSA |
| Dimensions & Weight | |
| Depth | 6 cm |
| Height | 1 cm |
| Weight | 16 g |
| Width | 1.2 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Humidity Range Operating | 30 - 70% |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Compatibility Information | |
| Designed For | P/N: ET91000SFP2, ET91000SFP2C, IES101002SFP, MCM1110SFP, PEX1000SFP2 |
Add, replace or upgrade SFP modules on Gigabit fiber equipment
- Delivers reliable Gigabit Ethernet connections for 1000Base-SX compliant networks
- 100% Cisco compatible SFP, equivalent to Cisco GLC-SX-MM
- Data rates up to 1.25 Gbps
- Supports distances up to 550m (1804ft)
- Complies with SFP Multi-Source Agreements standards (MSA)
- Compatible with Cisco equipment
- LC Fiber connector
- Fully Hot Pluggable
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)

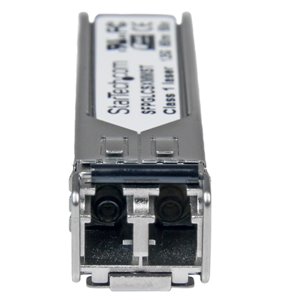

StarTech.com Advantage
The SFPGLCSXMMST Cisco® Compatible Gigabit Fiber SFP Transceiver Module MM LC - 550m (1804 ft) is built to comply with MSA (Multi-Sourcing Agreement) standards to offer a cost-effective way to add, replace or upgrade a Multimode LC port on your Gigabit fiber networking equipment or fiber media converter.Supporting data rates up to 1.25 Gbps, this LC Mini-GBIC module can be installed into any fiber networking device with an MSA or Cisco compliant SFP port. Delivering both convenience and scalability, this fiber transceiver is fully hot-pluggable, which enables you to install the module without interrupting network traffic or requiring a device reboot.
.jpg)
Applications
- Replacing defective or damaged SFPs in MSA compliant or Cisco equipment
- Expand your network to remote segments
.jpg)
