StarTech.com Cisco SFP-GE-S Compatible SFP Module - 1000BASE-SX - 1GE SFP 1GbE Multimode Fiber MMF Optic Transceiver SFP (mini-GBIC) transceiver modul Gigabit Ethernet
StarTech.com Cisco SFP-GE-S Compatible SFP Module, 1000BASE-SX, 1GbE Multimode Fiber MMF Optic Transceiver, 1GE Gigabit Ethernet SFP, LC 550m, 850nm, DDM, Cisco IE3400, IE3300, IE3200 - Lifetime Warranty (SFPGESST) - SFP (mini-GBIC) transceiver modul - 1GbE - 1000Base-SX - LC multimodus - op til 550 m - 850 nm - for P/N: ET91000LCOAM, ET91000SFP2, ET91000SFP2C, IES101002SFP, MCM1110SFP, PEX1000SFP2
523,00SEK418,40SEK excl. VAT
-
Product no 988493140
Model SFPGESST
Brand StarTech.com
EAN 0065030849432
Weight 0.05 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | StarTech.com Cisco SFP-GE-S Compatible SFP Module, 1000BASE-SX, 1GbE Multimode Fiber MMF Optic Transceiver, 1GE Gigabit Ethernet SFP, LC 550m, 850nm, DDM, Cisco IE3400, IE3300, IE3200 - Lifetime Warranty (SFPGESST) - SFP (mini-GBIC) transceiver modul - 1GbE |
| Enhedstype | SFP (mini-GBIC) transceiver modul - LC multimodus |
| Model | Indstiksmodul |
| Kabeltype | 1000Base-SX |
| Optisk bølgelængde | 850 nm |
| Dataforbindelsesprotokol | 1GbE |
| Maks. overføringsafstand | 550 m |
| Dimensioner (B x D x H) | 1.2 cm x 6 cm x 1 cm |
| Vægt | 17 g |
| Producentgaranti | Begrænset livtidsgaranti |
| Designet for | P/N: ET91000LCOAM, ET91000SFP2, ET91000SFP2C, IES101002SFP, MCM1110SFP, PEX1000SFP2 |
| General | |
|---|---|
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Networking | |
| Cabling Type | 1000Base-SX |
| Compliant Standards | IEEE 802.3z |
| Connectivity Technology | Wired |
| Data Link Protocol | GigE |
| Features | Full duplex capability, half duplex mode, Digital Diagnostics Monitoring Interface (DDMI) |
| Max Transfer Distance | 550 m |
| Optical Wave Length | 850 nm |
| Expansion / Connectivity | |
| Compatible Slots | 1 x SFP (mini-GBIC) |
| Interfaces | 1 x Ethernet 1000Base-SX - LC multi-mode x 2 |
| Miscellaneous | |
| Compliant Standards | UL, FCC, RoHS |
| Dimensions & Weight | |
| Depth | 6 cm |
| Height | 1 cm |
| Weight | 17 g |
| Width | 1.2 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Humidity Range Operating | 30 - 70% |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Compatibility Information | |
| Designed For | P/N: ET91000LCOAM, ET91000SFP2, ET91000SFP2C, IES101002SFP, MCM1110SFP, PEX1000SFP2 |

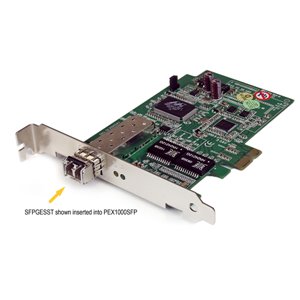

StarTech.com Cisco Compatible Gigabit Fiber SFP Module MM LC - 550m (DDM)
Add, replace or upgrade SFP modules on Gigabit fiber equipment.
The SFPGESST Cisco® Compatible Gigabit Fiber SFP Transceiver Module MM LC – 550m (1804 ft) is built to comply with MSA (Multi-Sourcing Agreement) standards to offer a cost-effective way to add, replace or upgrade a Multimode LC port on your Gigabit fiber networking equipment or fiber media converter.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
The SFPGESST Cisco® Compatible Gigabit Fiber SFP Transceiver Module MM LC – 550m (1804 ft) is built to comply with MSA (Multi-Sourcing Agreement) standards to offer a cost-effective way to add, replace or upgrade a Multimode LC port on your Gigabit fiber networking equipment or fiber media converter.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Overview

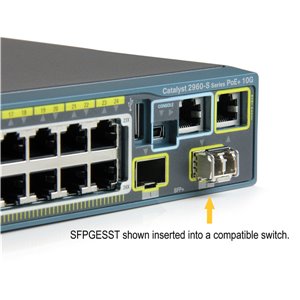

Supporting data rates up to 1.25 Gbps as well as Digital Diagnostics Monitoring (DDM), this LC SFP/Mini-GBIC module can be installed into any fiber networking device with an MSA or Cisco compliant SFP port.
.jpg)
Delivering both convenience and scalability, this fiber transceiver is fully hot-pluggable, which enables you to install the module without interrupting network traffic or requiring a device reboot.
.jpg)

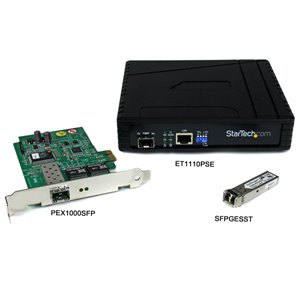

StarTech.com Advantage / Applications
This 850nm multi-mode SFP module is compatible with the Cisco SFP-GE-S transceiver.- Replacing defective or damaged SFPs/Mini GBICs in MSA or Cisco compliant equipment
- Equipped with an industry standard single-mode LC interface, this module can extend your network connectivity up to 550 m
.jpg)
Product Features
- Data rates up to 1.25 Gbps
- Supports distances up to 550m (1804ft)
- Complies with SFP Multi-Source Agreements standards (MSA)
- Compatible with Cisco equipment
- LC Fiber connector
- Fully Hot Pluggable
