StarTech.com EDID Emulator for HDMI Displays - Copy Extended Display Identification Data - 1080p (VSEDIDHD) EDID læser / skriver

StarTech.com EDID Emulator for HDMI Displays - Copy Extended Display Identification Data - 1080p (VSEDIDHD) - EDID læser / skriver - HDMI - sort
1 816,00SEK1 452,80SEK excl. VAT

  • Product no 991173895

    Model VSEDIDHD

    Brand StarTech.com

    EAN 0065030861809

    Weight 0.27 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse StarTech.com EDID Emulator for HDMI Displays - Copy Extended Display Identification Data - 1080p (VSEDIDHD) - EDID læser / skriver - HDMI
Enhedstype EDID læser / skriver
Grænsefladetype HDMI
Dimensioner (B x D x H) 5.2 cm x 8 cm x 2.2 cm
Vægt 123 g
Farve Sort
Med indgangsadaptertilbehør 4 x fodpuder, skruetrækker, USB-strømkabel
Opløsning ved digital videooptagelse 1280 x 720, 1600 x 1200, 1024 x 768, 1280 x 1024, 1920 x 1080, 1440 x 900, 1680 x 1050, 1600 x 900, 1366 x 768
Producentgaranti 2 års garanti
General
Color Black
Depth 8 cm
Device Type EDID reader / writer
Height 2.2 cm
Interface Type HDMI
Weight 123 g
Width 5.2 cm
Video
Digital Video Capture Resolution 1280 x 720, 1600 x 1200, 1024 x 768, 1280 x 1024, 1920 x 1080, 1440 x 900, 1680 x 1050, 1600 x 900, 1366 x 768
Expansion / Connectivity
Connections 1 x display / video - HDMI input - 19 pin HDMI Type A | 1 x display / video - HDMI output - 19 pin HDMI Type A
Interfaces 1 x display / video - HDMI input - 19 pin HDMI Type A | 1 x display / video - HDMI output - 19 pin HDMI Type A
Miscellaneous
Compliant Standards FCC, RoHS, WEEE
Device Features USB powered
Included Accessories 4 x foot pads, screwdriver, USB power cable
Manufacturer Warranty
Service & Support Limited warranty - 2 years
Environmental Parameters
Humidity Range Operating 0 - 80%
Max Operating Temperature 40 °C
Min Operating Temperature 0 °C

Add copied or ghosted EDID (Extended Display Identification Data) to your HDMI signal to ensure compatibility with your display or projector

  • Maximizes compatibility between your HDMI display and video sources with EDID emulation
  • Emulate or synthesize EDID settings with support for both EDID copying and EDID ghosting
  • Hassle-free setup with an easy-to-set rotary dial
  • Supports high-definition resolutions up to 1920 x 1080 (1080p)
  • Stores EDID settings even when unplugged
Add copied or ghosted EDID (Extended Display Identification Data) to your HDMI signal to ensure compatibility with your display or projector
slide {0} of {1}, zoom in, Add copied or ghosted EDID (Extended Display Identification Data) to your HDMI signal to ensure compatibility with your display or projector
slide {0} of {1}, zoom in, Add copied or ghosted EDID (Extended Display Identification Data) to your HDMI signal to ensure compatibility with your display or projector
slide {0} of {1}, zoom in, Add copied or ghosted EDID (Extended Display Identification Data) to your HDMI signal to ensure compatibility with your display or projector
slide {0} of {1}, zoom in, Add copied or ghosted EDID (Extended Display Identification Data) to your HDMI signal to ensure compatibility with your display or projector
Achieve maximum performance from your HDMI display

Achieve maximum performance from your HDMI display

EDID contains important information that your television or projector needs, to deliver its best picture quality. Because most video extenders or switches block EDID communication between your video source and display, EDID is often lost in transmission, limiting your video source's ability to output your display's native resolution. Using the EDID emulator, you can ensure your HDMI source and display are perfectly in sync, for crystal-clear picture quality.
Versatile configuration options, with EDID copying or EDID ghosting

Versatile configuration options, with EDID copying or EDID ghosting

To ensure that any EDID communication issue can be solved, the EDID emulator supports both EDID copying and EDID ghosting.

EDID copying saves the EDID settings from your display and communicates those exact settings to your source, which is perfect for EDID issues that are caused by a third-party disruption, such as a video switch or extender.

EDID ghosting lets you emulate generic EDID settings, to deliver common data to your source or display. This is the perfect solution for EDID issues that often occur when you’re working with devices that don’t output EDID, such as older legacy equipment or some analog to digital video adapters.

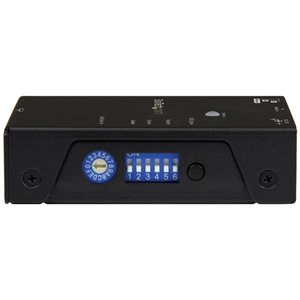

Easy to set up, with a hassle-free rotary dial

Easy to set up, with a hassle-free rotary dial

EDID communications contain a lot of important settings, such as maximum image size, color characteristics, factory preset timings, frequency range limits and more. With all of these specific details, it's easy to be confused or crossed up by the data. This emulator eliminates the hassle and confusion that comes with EDID, giving you a rotary dial that you can use to configure all of your settings in one simple step.

The VSEDIDHD is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Applications

  • Ensure new and legacy video equipment works flawlessly together by emulating EDID information between devices
  • Resolve video issues that arise from using HDMI switches and extenders between HDMI sources and displays
Add copied or ghosted EDID (Extended Display Identification Data) to your HDMI signal to ensure compatibility with your display or projector
