StarTech.com FireWire adapter PCI Express x1 800Mbps

StarTech.com 3 Port 2b 1a Low Profile 1394 PCI Express FireWire Card Adapter - FireWire adapter - PCIe lavprofil - FireWire 800 - 2 porte + 1 x FireWire
981,00SEK784,80SEK excl. VAT

Tilføj 2 indbyggede FireWire 800-porte til din lavprofil/small form factor-computer via et PCI Express-udvidelsesslot. Dette 3 Port PCI Express FireWire-kort er udstyret med et lavprofilbeslag til installation i pc'er med lille formfaktor og inkluderer et valgfrit beslag i fuld størrelse til installation i et pc-kabinet i standardstørrelse.

  • Product no 988492459

    Model PEX1394B3LP

    Brand StarTech.com

    EAN 0065030837897

    Weight 0.21 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse StarTech.com 3 Port 2b 1a Low Profile 1394 PCI Express FireWire Card Adapter - FireWire adapter - PCIe - 2 porte
Enhedstype FireWire adapter
Model Indstikskort - lavprofil
Grænseflade (bus) type PCI Express x1
Dimensioner (B x D x H) 12 cm x 9 cm x 1.8 cm
Vægt 46 g
Antal porte 2 porte
Ekstra ports 1 x IEEE 1394 (FireWire)
Dataforbindelsesprotokol FireWire 800
Dataoverførselshastighed 800 Mbps
Systemkrav Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Microsoft Windows Server 2019, Apple MacOS X 10.6 - 10.15, Apple macOS 11.0, Apple macOS 12.0, Microsoft Windows 11, kun Linux 3.5.x eller senere LTS-versioner, Apple macOS 13.0
Producentgaranti Begrænset livtidsgaranti
General
Device Type FireWire adapter - 2 ports
Form Factor Plug-in card - low profile
Interface (Bus) Type PCI Express x1
Networking
Auxiliary Ports 1 x IEEE 1394 (FireWire)
Connectivity Technology Wired
Data Link Protocol IEEE 1394b (FireWire 800)
Data Transfer Rate 800 Mbps
Expansion / Connectivity
Compatible Slots 1 x PCI Express x1
Interfaces 2 x FireWire 800 - 9 pin FireWire 800 | 1 x FireWire - 6 pin FireWire
Miscellaneous
Compliant Standards FCC, RoHS
Software / System Requirements
OS Required Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Microsoft Windows Server 2019, Apple MacOS X 10.6 - 10.15, Apple macOS 11.0, Ap
Dimensions & Weight
Depth 9 cm
Height 1.8 cm
Weight 46 g
Width 12 cm
Manufacturer Warranty
Service & Support Limited warranty - lifetime
Environmental Parameters
Humidity Range Operating 0 - 90%
Max Operating Temperature 70 °C
Min Operating Temperature 0 °C

Add 2 native FireWire 800 ports to your low profile/small form factor computer through a PCI Express expansion slot

  • Two 9-pin FireWire 800 ports, each with transfer rates up to 800Mbps
  • One 6-pin FireWire 400 port, each with transfer rates up to 400Mbps
  • Includes full/standard profile installation bracket
  • Built with a native PCI Express chipset, no bridge chip
  • Internal power connector for high-powered FireWire devices
  • Compliant with IEEE 1394b and backwards compatible with IEEE 1394a - 2000 as well as 1394-1995 standards
  • Plug-and-Play and hot-swap compatible
Add 2 native FireWire 800 ports to your low profile/small form factor computer through a PCI Express expansion slot
slide {0} of {1}, zoom in, Add 2 native FireWire 800 ports to your low profile/small form factor computer through a PCI Express expansion slot
slide {0} of {1}, zoom in, Add 2 native FireWire 800 ports to your low profile/small form factor computer through a PCI Express expansion slot
slide {0} of {1}, zoom in, Add 2 native FireWire 800 ports to your low profile/small form factor computer through a PCI Express expansion slot
slide {0} of {1}, zoom in, Add 2 native FireWire 800 ports to your low profile/small form factor computer through a PCI Express expansion slot
slide {0} of {1}, zoom in, Add 2 native FireWire 800 ports to your low profile/small form factor computer through a PCI Express expansion slot

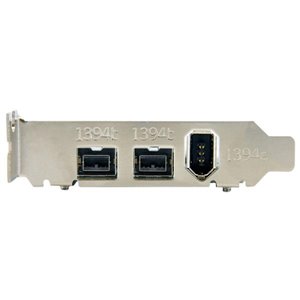

Add 3 FireWire ports to a standard or small form factor (SFF) computer with support for high-powered FireWire devices

Add 3 FireWire ports to a standard or small form factor (SFF) computer with support for high-powered FireWire devices

This 3 Port PCI Express FireWire card comes equipped with a low profile bracket for installation in small form factor PCs, and includes an optional full-size bracket for installation in a standard-sized PC case.
Native PCI Express chipset design rather than a bridge chip, ensures a fast, reliable and cost-effective FireWire expansion

Native PCI Express chipset design rather than a bridge chip, ensures a fast, reliable and cost-effective FireWire expansion

The 2x FireWire 800 and 1x FireWire 400 card features a native (single chip) PCI Express chipset, which provides faster, more reliable and cost-effective performance than expansion cards that utilize a "bridge" chip.
Broad compatibility with a wide range of FireWire devices

Broad compatibility with a wide range of FireWire devices

The FireWire card can be installed in a PCIe slot to add two IEEE1394b (FireWire 800 - 9 pin) ports and one IEEE1394a (FireWire 400 - 6 pin) port, providing broad compatibility with a wide range of FireWire devices (e.g. DV camcorders, external hard drives, digital cameras, etc.).

Applications

  • Add a high-speed FireWire port to a desktop without any FireWire support
  • Connect a digital camera to a desktop with a PCI Express slot to download photos and video
  • Connect a high-speed external hard drive to a PCI Express-enabled system
