StarTech.com HDMI Extender over CAT6/CAT5, 4K 30Hz/130ft (40m) or 1080p 60Hz/230ft (70m) Video Extender, 4K HDMI over Extender, PoC HDMI Transmitter and Receiver Kit, IR Extension - Local Video Output (EXTEND-HDMI-4K40C6P1) Video/audio ekspander
StarTech.com HDMI Extender over CAT6/CAT5, 4K 30Hz/130ft (40m) or 1080p 60Hz/230ft (70m) Video Extender, 4K HDMI over Ethernet Extender, PoC HDMI Transmitter and Receiver Kit, IR Extension - Local Video Output - Video/audio ekspander - HDMI - over CAT 5/6 - op til 70 m
1 451,00 SEK
1 160,80 SEK excl. VAT
-
Product no 1000527081
Model EXTEND-HDMI-4K40C6P1
Brand StarTech.com
EAN 0065030895156
Weight 0.5 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | StarTech.com HDMI Extender over CAT6/CAT5, 4K 30Hz/130ft (40m) or 1080p 60Hz/230ft (70m) Video Extender, 4K HDMI over Ethernet Extender, PoC HDMI Transmitter and Receiver Kit, IR Extension - Local Video Output - video/audio ekspander - HDMI |
| Enhedstype | Video/audio ekspander |
| Model | Ekstern |
| Dataoverførselshastighed | 10.2 Gbps |
| Dataforbindelsesprotokol | HDMI |
| Transmissionsmedie | CAT 5/6 |
| Maks. overføringsafstand | 70 m |
| Power Over Ethernet (PoE) | PoC |
| Effekt | AC 100-240 V |
| Dimensioner (B x D x H) | 6.9 cm x 5.7 cm x 1.7 cm |
| Vægt | 130 g |
| Producentgaranti | 2 års garanti |
| General | |
|---|---|
| Color | Black |
| Device Type | Video/audio extender |
| Form Factor | External |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI |
| Data Transfer Rate | 10.2 Gbps |
| Features | 7.1 channel audio support |
| Max Resolution | 4096 x 2160 @ 30 Hz |
| Max Transfer Distance | 70 m |
| Status Indicators | Power, link |
| Expansion / Connectivity | |
| Interfaces | 2 x HDMI (local unit) female | 1 x network (local unit) - RJ-45 female | 1 x audio (local unit) - phone 3.5 mm female | 1 x HDMI (remote unit) female | 1 x network (remote unit) - RJ-45 female | 1 x audio (remote unit) - phone 3.5 mm female |
| Miscellaneous | |
| Compliant Standards | RoHS, WEEE, RCM |
| Included Accessories | IR receiver, IR blaster extension cable |
| Power | |
| Installed Qty | 2 |
| Power Device | External power adapter |
| Power Over Ethernet (PoE) | PoC |
| Voltage Required | AC 100-240 V |
| Dimensions & Weight | |
| Depth | 5.7 cm |
| Height | 1.7 cm |
| Weight | 130 g |
| Width | 6.9 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 11.3 cm |
| Shipping Height | 7.5 cm |
| Shipping Weight | 500 g |
| Shipping Width | 20 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
4K 30Hz 130ft | 1080p 230ft | IR Extension | Power over Cable
.jpg)
.jpg)
.jpg)
Astonishing 4K Picture Quality
This HDMI extender supports 7.1ch audio and resolutions of up to 4K at 30Hz (3840 x 2160) over a single CAT6/5e cable.The UHD HDMI Extender supports HDMI 1.4 and 4:4:4 chroma subsampling, which ensures a crystal-clear picture.

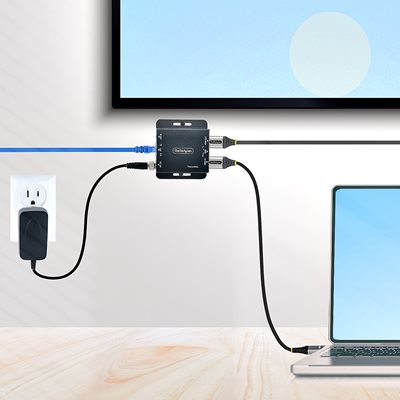

Simplify Your Setup
With support for Power over Cable (PoC), only one power, connected to the transmitter, is required to power both units of the transmitter and receiver kit.IR extension, using the included IR Blaster and Receiver, makes controlling a source device from a remote location easy.
Easy Installation
The 4K HDMI Ethernet Extender has an HDMI output on the transmitter unit allowing the solution to be cascaded to other video extenders or for use to a local display.Plug-and-play installation with no additional software or drivers required.
The metal housing and built-on mounting brackets allow for professional installation options, ideal for digital signage, boardrooms, and tradeshow applications.

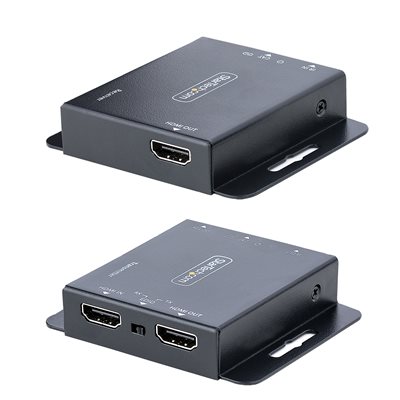

What's in the Box
- 1 Local HDMI Transmitter Unit
- 1 Remote HDMI Receiver Unit
- 1 IR Blaster
- 1 IR Receiver
- 1 Power Adapter
- 1 Quick-Start Guide
