StarTech.com HPE JD118B Compatible SFP Module - 1000BASE-SX - 1GE SFP 1GbE Multi Mode (MMF) Fiber Optic Transceiver 550m SFP (mini-GBIC) transceiver modul Gigabit Ethernet

StarTech.com HPE JD118B Compatible SFP Module, 1000BASE-SX, 1GbE Multi Mode (MMF) Fiber Optic Transceiver, 1GE Gigabit Ethernet SFP, LC Connector, 550m, 850nm, DDM, HPE 5900, 12500, 5500 - Lifetime Warranty (JD118BST) - SFP (mini-GBIC) transceiver modul (svarende til: HP JD118B) - 1GbE - 1000Base-SX - LC multimodus - op til 550 m - 850 nm
665,00SEK532,00SEK excl. VAT

  • Product no 992513432

    Model JD118BST

    Brand StarTech.com

    EAN 0065030868532

    Weight 0.05 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse StarTech.com HPE JD118B Compatible SFP Module, 1000BASE-SX, 1GbE Multi Mode (MMF) Fiber Optic Transceiver, 1GE Gigabit Ethernet SFP, LC Connector, 550m, 850nm, DDM, HPE 5900, 12500, 5500 - Lifetime Warranty (JD118BST) - SFP (mini-GBIC) transceiver modul - 1GbE
Enhedstype SFP (mini-GBIC) transceiver modul - LC multimodus
Model Indstiksmodul
Kabeltype 1000Base-SX
Dataoverførselshastighed 1.25 Gbps
Optisk bølgelængde 850 nm
Dataforbindelsesprotokol 1GbE
Maks. overføringsafstand 550 m
OEM-producentækvivalent delnummer HP JD118B
Dimensioner (B x D x H) 1.37 cm x 5.66 cm x 1.25 cm
Vægt 28 g
Producentgaranti Begrænset livtidsgaranti
General
Color Silver
Device Type SFP (mini-GBIC) transceiver module
Form Factor Plug-in module
Networking
Cabling Type 1000Base-SX
Compliant Standards IEEE 802.3z
Connectivity Technology Wired
Data Link Protocol GigE
Data Transfer Rate 1.25 Gbps
Features Full duplex mode, Digital Optical Monitoring (DOM) support, Digital Diagnostics Monitoring (DDM)
Max Transfer Distance 550 m
Optical Wave Length 850 nm
Expansion / Connectivity
Interfaces 1 x Ethernet 1000Base-SX - LC multi-mode female x 2
Miscellaneous
Compliant Standards UL, FCC, RoHS, MSA
OEM Manufacturer Equivalent Part Number HP JD118B
Dimensions & Weight
Depth 5.66 cm
Height 1.25 cm
Weight 28 g
Width 1.37 cm
Manufacturer Warranty
Service & Support Limited warranty - lifetime
Environmental Parameters
Humidity Range Operating 5 - 95%
Max Operating Temperature 70 °C
Min Operating Temperature 0 °C

Add reliable and cost-effective Gigabit Ethernet connections over multimode fiber with this SFP module

  • Delivers reliable Gigabit Ethernet connections for 1000Base-SX compliant networks
  • 100% HP compatible SFP, equivalent to HP JD118B
  • Backed by lifetime warranty and free lifetime technical support
  • Meets or exceeds OEM specifications and MSA (Multi-Source Agreement) industry standards
  • Supports Digital Diagnostics Monitoring (DDM)
  • 850 nm optical wavelength
  • Supports multimode (maximum distance 550 m / 1804 ft.)
  • LC fiber connector
  • Maximum data rates up to 1.25Gbps
  • Hot-pluggable
Add reliable and cost-effective Gigabit Ethernet connections over multimode fiber with this SFP module
slide {0} of {1}, zoom in, Add reliable and cost-effective Gigabit Ethernet connections over multimode fiber with this SFP module
slide {0} of {1}, zoom in, Add reliable and cost-effective Gigabit Ethernet connections over multimode fiber with this SFP module
slide {0} of {1}, zoom in, Add reliable and cost-effective Gigabit Ethernet connections over multimode fiber with this SFP module

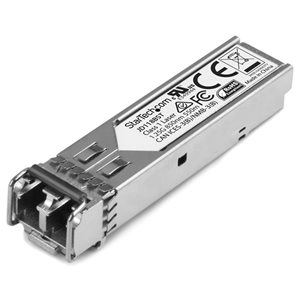

Built for reliable network performance

Built for reliable network performance

This multimode SFP transceiver is manufactured by StarTech.com to meet or exceed OEM specifications and comply with the industry’s MSA (Multi-Source Agreement) standards. Committed to the highest standards of quality, StarTech.com provides an extensive range of networking products including copper and fiber network cards, fiber media converters, Ethernet switches and wireless products.

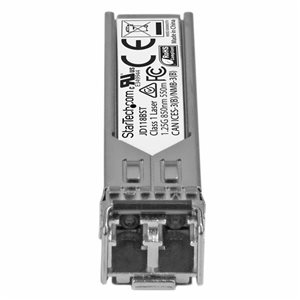

Fully compatible with HP and other major brands

Fully compatible with HP and other major brands

The MM Gigabit SFP is engineered to the highest quality standards andis 100% HP compatible, equivalent to the HP JD118B transceiver. The StarTech.com SFP transceiver is configured and fully tested to ensure itworks seamlessly with HP or other major brands of networking equipment.

You can be assured that the use of StarTech.com SFP products should not affect the warranty protection of your networking equipment.

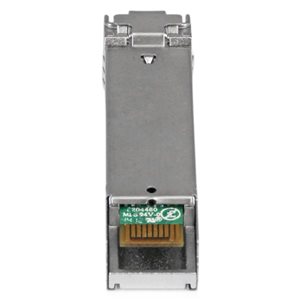

Convenient and scalable

Convenient and scalable

Delivering both convenience and scalability, this fiber transceiver is fully hot-pluggable, which enables you to install it without interrupting network traffic or having to reboot your equipment. It provides a versatile and cost-effective solution that’s compatible with amultitude of Gigabit networking devices.

Ideal for use in switches, routers, and other networking equipment, the SFP provides reliable performance, allowing you to expand your network to remote segments cost-effectively. This GbE fiber SFP supports multimode fiber cable with a maximum distance of 550 m or 1804 ft., maximum data rates of up to 1.25Gbps, and Digital Diagnostics Monitoring (DDM / DOM).

Applications

  • Replace defective or damaged SFPs in MSA compliant or HP equipment
  • Ideal for deployment in network devices with multiple SFP slots
  • Expand your network to remote segments
