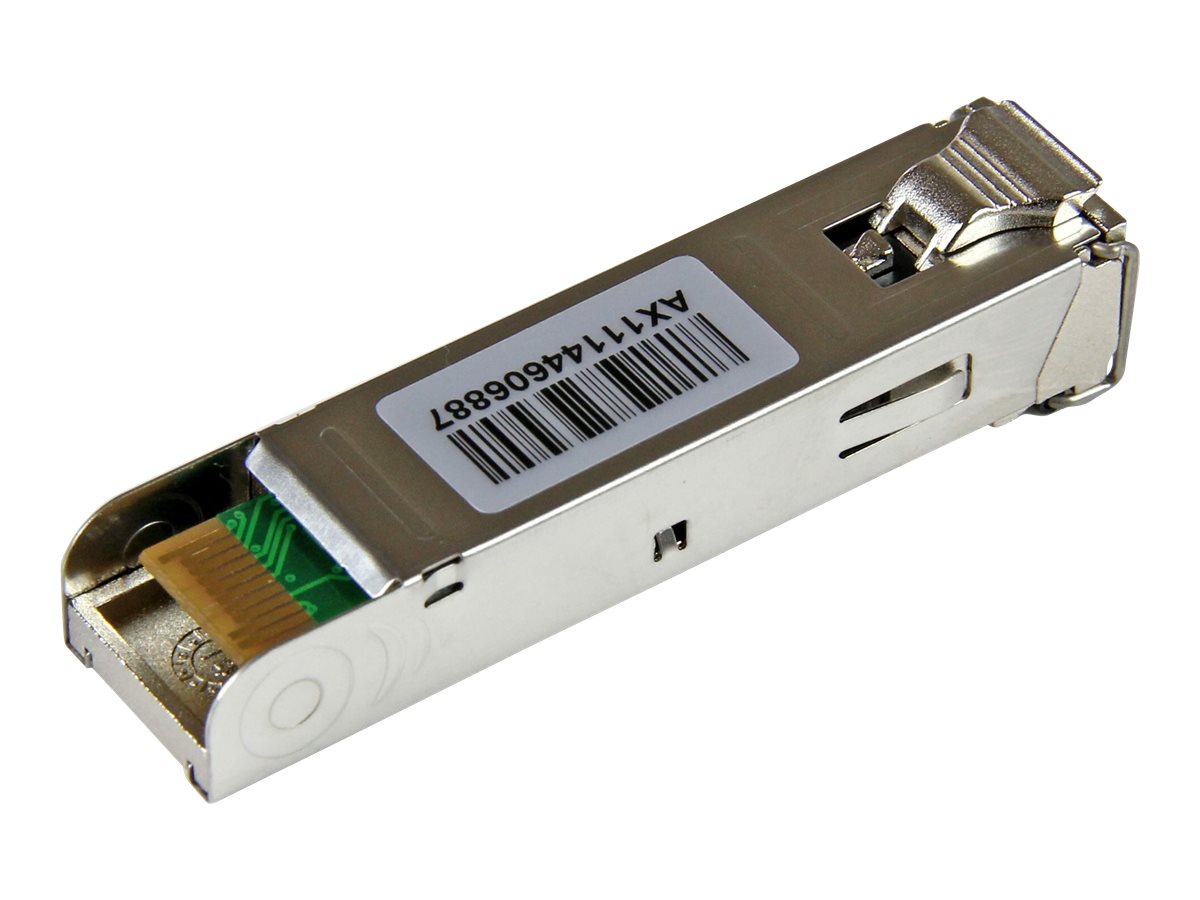

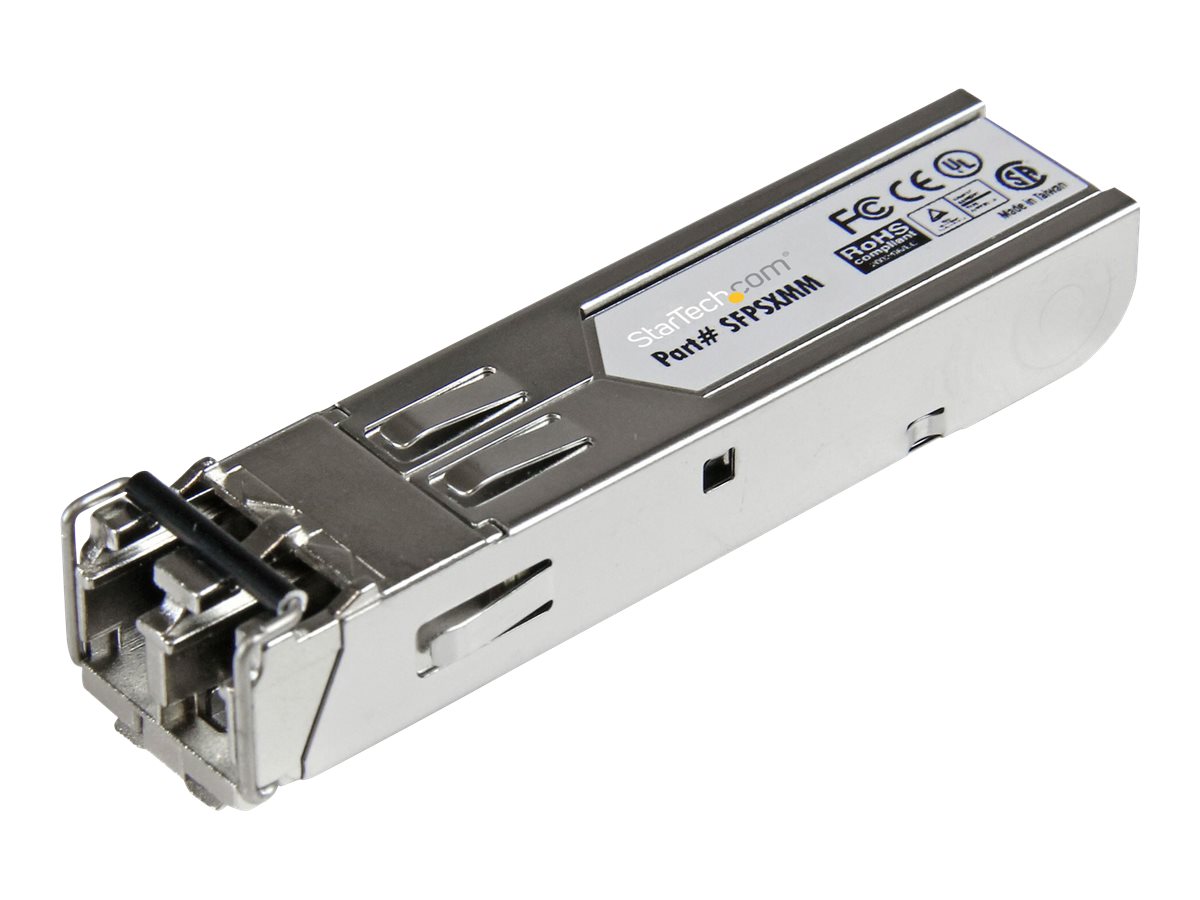

StarTech.com MSA Uncoded Compatible SFP Module, 1000BASE-SX, 1GbE Multi Mode (MMF) Fiber Optic Transceiver, 1GE SFP, LC Connector, 550m, 850nm, DDM, 1Gbps Mini GBIC Module - Lifetime Warranty (SFPSXMM) SFP (mini-GBIC) transceiver modul Gigabit Ethernet
StarTech.com MSA Uncoded Compatible SFP Module, 1000BASE-SX, 1GbE Multi Mode (MMF) Fiber Optic Transceiver, 1GE Gigabit Ethernet SFP, LC Connector, 550m, 850nm, DDM, 1Gbps Mini GBIC Module - Lifetime Warranty (SFPSXMM) - SFP (mini-GBIC) transceiver modul - 1GbE - 1000Base-SX - LC multimodus - op til 550 m - 850 nm - for P/N: MCM1110SFP
683,00 SEK
546,40 SEK excl. VAT
-
Product no 988492377
Model SFPSXMM
Brand StarTech.com
EAN 0065030834940
Weight 0.018 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | StarTech.com MSA Uncoded Compatible SFP Module, 1000BASE-SX, 1GbE Multi Mode (MMF) Fiber Optic Transceiver, 1GE Gigabit Ethernet SFP, LC Connector, 550m, 850nm, DDM, 1Gbps Mini GBIC Module - Lifetime Warranty (SFPSXMM) - SFP (mini-GBIC) transceiver modul - 1GbE |
| Enhedstype | SFP (mini-GBIC) transceiver modul - LC multimodus |
| Model | Indstiksmodul |
| Kabeltype | 1000Base-SX |
| Dataoverførselshastighed | 1 Gbps |
| Optisk bølgelængde | 850 nm |
| Dataforbindelsesprotokol | 1GbE |
| Maks. overføringsafstand | 550 m |
| Dimensioner (B x D x H) | 1.3 cm x 5.5 cm x 0.9 cm |
| Vægt | 18 g |
| Producentgaranti | 2 års garanti |
| Designet for | P/N: MCM1110SFP |
| General | |
|---|---|
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Networking | |
| Cabling Type | 1000Base-SX |
| Compliant Standards | IEEE 802.3z |
| Connectivity Technology | Wired |
| Data Link Protocol | GigE |
| Data Transfer Rate | 1 Gbps |
| Features | Full duplex capability |
| Max Transfer Distance | 550 m |
| Optical Wave Length | 850 nm |
| Expansion / Connectivity | |
| Compatible Slots | 1 x SFP (mini-GBIC) |
| Interfaces | 1 x Ethernet 1000Base-SX - LC multi-mode x 2 |
| Miscellaneous | |
| Compliant Standards | CSA, UL, TUV, FCC, RoHS |
| Dimensions & Weight | |
| Depth | 5.5 cm |
| Height | 0.9 cm |
| Weight | 18 g |
| Width | 1.3 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Compatibility Information | |
| Designed For | P/N: MCM1110SFP |
Add, replace or upgrade SFP modules on gigabit fiber equipment
- 1.25Gbps IEEE 802.3z 1000BASE-SX Compliant
- Complies with SFP Multi-Source Agreements standards (MSA)
- Equipped with a 850nm VCSEL Laser with Class 1 laser safety standards IEC825 compliance
- Duplex LC receptacle connector
- Complies with 1.0625Gbps Fiber Channel FC-PI 100-M5-SN-I and FC-PI 100-M6-SN-I
- Serial ID functionality support
- Fully Hot Pluggable
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Fully compliant with MSA standards
The SFPSXMM Gigabit 850nm Multi Mode SFP Fiber Optical Transceiver - LC 550m is built to comply with MSA (Multi-Sourcing Agreement) standards to offer a cost-effective way to increase performance and connectivity of your fiber-connected network devices..jpg)

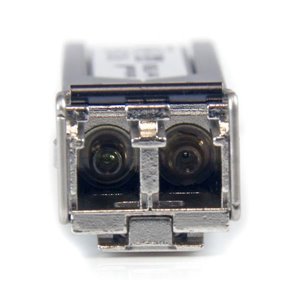

Equipped with an industry standard multimode LC interface
Using a short wavelength (850nm) VCSEL laser diode, enabling a maximum cable distance of 550m (0.3 miles) over multi mode fiber, this Small Form Factor Pluggable (SFP) Gigabit Multi Mode module can be installed into any fiber networking devices with an MSA compliant SFP port, providing a simple solution to upgrade existing network devices to connect to remote locations using LC terminated multimode fiber.Applications
- Perfect for network extension and fiber backbones
- Replacing defective or damaged SFPs in MSA compliant equipment
- Use in Multimode fiber installations
- Expand your network to remote segments over fiber
.jpg)
.jpg)
