StarTech.com MSA Uncoded SFP Module - 1000BASE-ZX - 1GE SFP 1GbE Single Mode Fiber (SMF) Optic Transceiver - 70km DDM SFP (mini-GBIC) transceiver modul Gigabit Ethernet

StarTech.com MSA Uncoded Compatible SFP Module, 1000BASE-ZX, 1GbE Single Mode (SMF) Fiber Optic Transceiver, 1GE Gigabit Ethernet SFP, LC Connector, 70km, 1550nm, DDM, Mini GBIC Module - Lifetime Warranty (SFP1000ZXST) - SFP (mini-GBIC) transceiver modul - 1GbE - 1000Base-ZX - LC enkelttilstand - op til 80 km - 1550 nm

1 091,00 SEK 872,80 SEK excl. VAT

  • Product no 993158496

    Model SFP1000ZXST

    Brand StarTech.com

    EAN 0065030873536

    Weight 0.05 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse StarTech.com MSA Uncoded Compatible SFP Module, 1000BASE-ZX, 1GbE Single Mode (SMF) Fiber Optic Transceiver, 1GE Gigabit Ethernet SFP, LC Connector, 70km, 1550nm, DDM, Mini GBIC Module - Lifetime Warranty (SFP1000ZXST) - SFP (mini-GBIC) transceiver modul - 1GbE
Enhedstype SFP (mini-GBIC) transceiver modul - LC enkelttilstand
Model Indstiksmodul
Kabeltype 1000Base-ZX
Dataoverførselshastighed 1.25 Gbps
Optisk bølgelængde 1550 nm
Dataforbindelsesprotokol 1GbE
Maks. overføringsafstand 80 km
Dimensioner (B x D x H) 1.39 cm x 5.84 cm x 1.26 cm
Vægt 30 g
Producentgaranti Begrænset livtidsgaranti
General
Color Silver
Device Type SFP (mini-GBIC) transceiver module
Form Factor Plug-in module
Networking
Cabling Type 1000Base-ZX
Compliant Standards IEEE 802.3z
Connectivity Technology Wired
Data Link Protocol GigE
Data Transfer Rate 1.25 Gbps
Features Full duplex mode, Digital Optical Monitoring (DOM) support, Digital Diagnostics Monitoring (DDM)
Max Transfer Distance 80 km
Optical Wave Length 1550 nm
Expansion / Connectivity
Interfaces 1 x Ethernet 1000Base-ZX - LC single-mode x 2
Miscellaneous
Compliant Standards FCC, RoHS, WEEE, MSA, RCM
Dimensions & Weight
Depth 5.84 cm
Height 1.26 cm
Weight 30 g
Width 1.39 cm
Manufacturer Warranty
Service & Support Limited warranty - lifetime
Environmental Parameters
Humidity Range Operating 5 - 95%
Max Operating Temperature 70 °C
Min Operating Temperature 0 °C

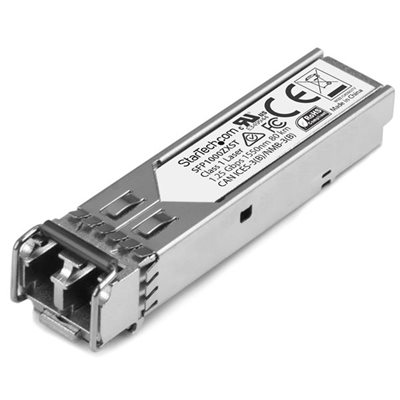

Add reliable and cost-effective Gigabit Ethernet connections over single-mode fiber, with this SFP module

  • Delivers reliable Gigabit connections for 1000Base-ZX compliant networks
  • Meets or exceeds MSA (Multi-Source Agreement) industry standards
  • Backed by lifetime warranty and free lifetime technical support
  • Supports single-mode fiber (LC connector)
  • Maximum distance up to 80 km/49.7 mi.
  • Maximum data rates up to 1Gbps
  • 1550 nm optical wavelength
  • Digital Diagnostics Monitoring (DDM/DOM)
  • Hot-pluggable
Add reliable and cost-effective Gigabit Ethernet connections over single-mode fiber, with this SFP module
slide {0} of {1}, zoom in, Add reliable and cost-effective Gigabit Ethernet connections over single-mode fiber, with this SFP module
slide {0} of {1}, zoom in, Add reliable and cost-effective Gigabit Ethernet connections over single-mode fiber, with this SFP module
slide {0} of {1}, zoom in, Add reliable and cost-effective Gigabit Ethernet connections over single-mode fiber, with this SFP module

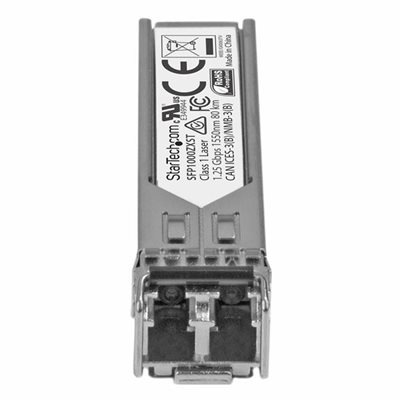

Delivers Gigabit Ethernet connections

Delivers Gigabit Ethernet connections

With data transfer rates of up to 1Gbps and support for Digital Diagnostics Monitoring (DDM / DOM), this LC SFP module can be installed into fiber networking equipment with an MSA compliant port. It delivers dependable Gigabit connectivity over single-mode fiber for 1000Base-ZX compliant networks, with a maximum distance of up to 80 km (49.7 mi.) and 1550 nm optical wavelength.

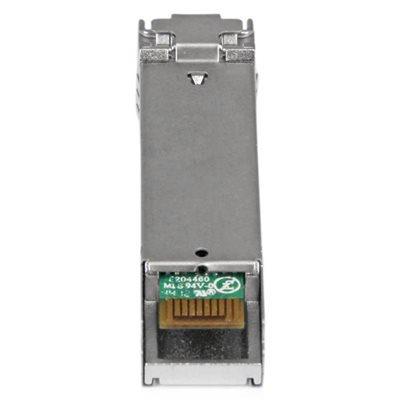

Built for reliable network performance

Built for reliable network performance

This optical transceiver is engineered to meet or exceed the industry’s MSA (Multi-Source Agreement) standards. StarTech.com brings its established reputation for high-quality connectivity solutions to SFP transceivers, providing SFPs that match major OEM brands in performance and reliability. Committed to the highest standards, StarTech.com provides an extensive range of networking products including copper and fiber network cards, fiber media converters, Ethernet switches and wireless products.

Applications

  • Replace defective or damaged SFP modules in MSA compliant equipment
  • Ideal for deployment in network devices with multiple SFP slots
  • Expand your network to remote segments
