StarTech.com MSA Uncoded SFP Module - 10GBASE-LR - 10GE SFP 10GbE Single Mode Fiber (SMF) Optic Transceiver - 10km DDM SFP+ transceiver modul 10 Gigabit Ethernet

StarTech.com MSA Uncoded Compatible SFP+ Module, 10GBASE-LR, 10GbE Single Mode (SMF) Fiber Optic Transceiver, 10GE Gigabit Ethernet SFP+, LC Connector, 10km, 1310nm, DDM, Mini GBIC Module (SFP10GBLRST) - SFP+ transceiver modul - 10GbE - 10GBase-LR - LC enkelttilstand - op til 10 km - 1310 nm

1 029,00 SEK 823,20 SEK excl. VAT

  • Product no 993158485

    Model SFP10GBLRST

    Brand StarTech.com

    EAN 0065030873437

    Weight 0.05 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse StarTech.com MSA Uncoded Compatible SFP+ Module, 10GBASE-LR, 10GbE Single Mode (SMF) Fiber Optic Transceiver, 10GE Gigabit Ethernet SFP+, LC Connector, 10km, 1310nm, DDM, Mini GBIC Module (SFP10GBLRST) - SFP+ transceiver modul - 10GbE
Enhedstype SFP+ transceiver modul - LC enkelttilstand
Model Indstiksmodul
Kabeltype 10GBase-LR
Dataoverførselshastighed 10 Gbps
Optisk bølgelængde 1310 nm
Dataforbindelsesprotokol 10GbE
Maks. overføringsafstand 10 km
Dimensioner (B x D x H) 1.39 cm x 5.84 cm x 1.26 cm
Vægt 30 g
Producentgaranti Begrænset livtidsgaranti
General
Color Silver
Device Type SFP+ transceiver module
Form Factor Plug-in module
Networking
Cabling Type 10GBase-LR
Compliant Standards IEEE 802.3ae
Connectivity Technology Wired
Data Link Protocol 10 GigE
Data Transfer Rate 10 Gbps
Features Full duplex mode, Digital Optical Monitoring (DOM) support, Digital Diagnostics Monitoring (DDM)
Max Transfer Distance 10 km
Optical Wave Length 1310 nm
Expansion / Connectivity
Interfaces 1 x Ethernet 10GBase-LR - LC single-mode female x 2
Miscellaneous
Compliant Standards UL, FCC, RoHS, MSA
Dimensions & Weight
Depth 5.84 cm
Height 1.26 cm
Weight 30 g
Width 1.39 cm
Manufacturer Warranty
Service & Support Limited warranty - lifetime
Environmental Parameters
Humidity Range Operating 5 - 95%
Max Operating Temperature 70 °C
Min Operating Temperature 0 °C

Add reliable and cost-effective 10 Gigabit Ethernet connections over single-mode fiber, with this SFP+ module

  • Delivers reliable 10 Gigabit connections for 10GBase-LR compliant networks
  • Meets or exceeds MSA (Multi-Source Agreement) industry standards
  • Backed by lifetime warranty and free lifetime technical support
  • Supports single-mode fiber (LC connector)
  • Maximum distance up to 10 km/6.2 mi.
  • Maximum data rates up to 10Gbps
  • 1310 nm optical wavelength
  • Digital Diagnostics Monitoring (DDM/DOM)
  • Hot-pluggable
Add reliable and cost-effective 10 Gigabit Ethernet connections over single-mode fiber, with this SFP+ module
slide {0} of {1}, zoom in, Add reliable and cost-effective 10 Gigabit Ethernet connections over single-mode fiber, with this SFP+ module
slide {0} of {1}, zoom in, Add reliable and cost-effective 10 Gigabit Ethernet connections over single-mode fiber, with this SFP+ module
slide {0} of {1}, zoom in, Add reliable and cost-effective 10 Gigabit Ethernet connections over single-mode fiber, with this SFP+ module
slide {0} of {1}, zoom in, Add reliable and cost-effective 10 Gigabit Ethernet connections over single-mode fiber, with this SFP+ module

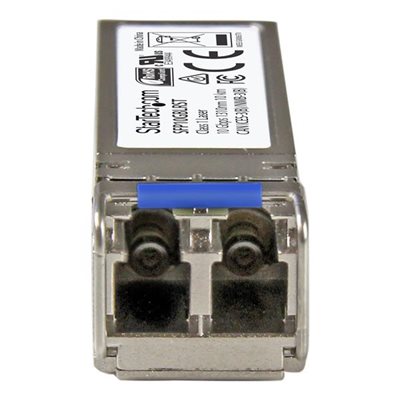

Delivers 10 Gigabit Ethernet connections

Delivers 10 Gigabit Ethernet connections

With data transfer rates of up to 10Gbps and support for Digital Diagnostics Monitoring (DDM / DOM), this LC SFP+ module can be installedinto fiber networking equipment with an MSA compliant port. It deliversdependable 10 Gigabit connectivity over single-mode fiber for 10GBase-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi.) and 1310 nm optical wavelength.

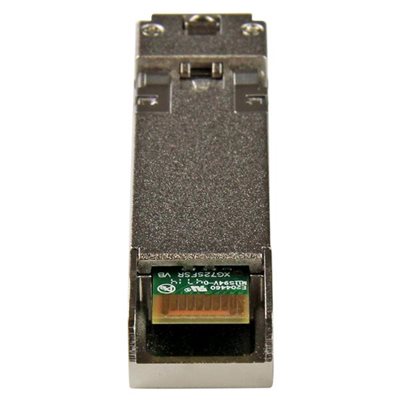

Built for reliable network performance

Built for reliable network performance

This optical transceiver is engineered to meet or exceed the industry’s MSA (Multi-Source Agreement) standards. StarTech.com brings its established reputation for high-quality connectivity solutions to SFP transceivers, providing SFPs that match major OEM brands in performance and reliability. Committed to the highest standards, StarTech.com provides an extensive range of networking products including copper and fiber network cards, fiber media converters, Ethernet switches and wireless products.

Applications

  • Replace defective or damaged SFP+ modules in MSA compliant equipment
  • Ideal for deployment in network devices with multiple SFP+ slots
  • Expand your network to remote segments
