StarTech.com Multimode (MM) LC Fiber Media Converter for 1Gbe Network - 550m Range - - 850nm - SFP Transceiver (ET91000LC2) Fibermedieomformer Gigabit Ethernet
StarTech.com Multimode (MM) LC Fiber Media Converter for 1Gbe Network - 550m Range - Gigabit Ethernet - 850nm - with SFP Transceiver (ET91000LC2) - Fibermedieomformer - 1GbE - 1000Base-LX, 1000Base-SX, 1000Base-T - RJ-45 / LC multimodus - op til 550 m - 850 nm - for P/N: ETCHS2U, SVA12M2NEUA, SVA12M5NA
3 259,00 SEK
2 607,20 SEK excl. VAT
-
Product no 988492956
Model ET91000LC2
Brand StarTech.com
EAN 0065030846226
Weight 0.77 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | StarTech.com Multimode (MM) LC Fiber Media Converter for 1Gbe Network - 550m Range - Gigabit Ethernet - 850nm - with SFP Transceiver (ET91000LC2) - fibermedieomformer - 1GbE |
| Enhedstype | Fibermedieomformer - RJ-45 / LC multimodus |
| Model | Ekstern |
| Lokalisering | Nordamerika, United Kingdom, Europa |
| Kabeltype | 1000Base-LX, 1000Base-SX, 1000Base-T |
| Dataoverførselshastighed | 1 Gbps |
| Optisk bølgelængde | 850 nm |
| Dataforbindelsesprotokol | 1GbE |
| Maks. overføringsafstand | 550 m |
| Effekt | AC 120/230 V |
| Dimensioner (B x D x H) | 9.5 cm x 16 cm x 2 cm |
| Vægt | 0.62 kg |
| Producentgaranti | 2 års garanti |
| Designet for | P/N: ETCHS2U, SVA12M2NEUA, SVA12M5NA |
| General | |
|---|---|
| Color | Black |
| Device Type | Fiber media converter |
| Form Factor | External |
| Localization | North America, United Kingdom, Europe |
| Networking | |
| Cabling Type | 1000Base-LX, 1000Base-SX, 1000Base-T |
| Connectivity Technology | Wired |
| Data Link Protocol | GigE |
| Data Transfer Rate | 1 Gbps |
| Features | Auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode, rugged |
| Max Transfer Distance | 550 m |
| Optical Wave Length | 850 nm |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000Base-T - RJ-45 female | 1 x Ethernet 1000Base-LX/1000Base-SX - LC multi-mode female x 2 |
| Miscellaneous | |
| Compliant Standards | Plug and Play, FCC, RoHS |
| MTBF | 65,000 hours |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V |
| Dimensions & Weight | |
| Depth | 16 cm |
| Height | 2 cm |
| Weight | 0.62 kg |
| Width | 9.5 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | 0 °C |
| Compatibility Information | |
| Designed For | P/N: ETCHS2U, SVA12M2NEUA, SVA12M5NA |

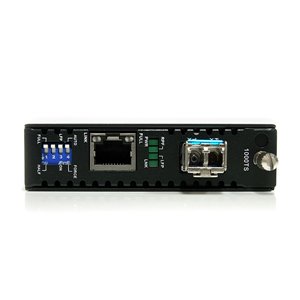

StarTech.com Fiber Media Converter Gigabit 1000Mbps MM Fibre LC 550m
Convert and extend a Gigabit Ethernet connection up to 550 m / 1804 ft over Multimode LC fiber.
The ET91000LC2 1000 Mbps Gigabit Multimode Fiber Media Converter (LC, 550m) lets you extend a Gigabit Ethernet network over multimode fiber, at distances up to 550m (1804 ft).
A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, this GbE to MM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet-to-fiber solution, the Ethernet to LC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.

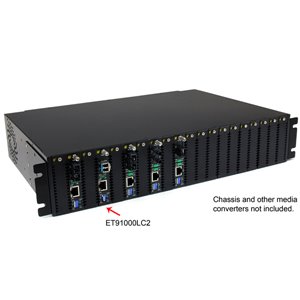

For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U), as well as a replaceable SFP slot.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The ET91000LC2 1000 Mbps Gigabit Multimode Fiber Media Converter (LC, 550m) lets you extend a Gigabit Ethernet network over multimode fiber, at distances up to 550m (1804 ft).
A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, this GbE to MM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet-to-fiber solution, the Ethernet to LC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.
For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U), as well as a replaceable SFP slot.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Product Applications
- Provides connectivity to a user or network segment that is in an isolated area of a large complex or in another building altogether
- Perfect for secure connections required by government agencies where EMI is not acceptable
.jpg)
- Connect traffic control/monitoring systems at extreme distances to the main office
- Extend network connectivity to remote areas of stadiums, auditoriums or other venues
- Converts 1000Base-LX fiber optic signals to 1000Base-T Ethernet over multi mode fiber cable
.jpg)
Product Features
- Supports standalone operation, or installation into the ETCHS2U Rackmount Chassis
- SFP can be removed from the unit, for replacement or swapping to a different specification
- Cost-effective way to extend/bridge networks using fiber cabling
- Advanced features include Link-loss forwarding, remote monitor status, two frame lengths
- Maximum Fiber Cable length of 550m
- Supports full or half-duplex operation
- Easy to use and install
- Jumbo Frame support
.jpg)
StarTech.com Advantage
- Link loss forwarding, remote status monitoring ensures maximum up-time
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for durability in harsh environments
.jpg)
