StarTech.com Multimode / Single Mode Fiber Media Converter - Open SFP Slot - Mbps RJ45 Port - LFP Supported - IEEE 802.1q Tag VLAN - (MCM1110SFP) Fibermedieomformer Ethernet Fast Ethernet Gigabit Ethernet
StarTech.com Multimode / Single Mode Fiber Media Converter - Open SFP Slot - 10/100/1000Mbps RJ45 Port - LFP Supported - IEEE 802.1q Tag VLAN - (MCM1110SFP) - Fibermedieomformer - 1GbE - 10Base-T, 1000Base-LX, 1000Base-SX, 100Base-TX, 1000Base-T - RJ-45 / SFP (mini-GBIC) - for P/N: GLCLHSMDSTTA, GLCSXMMDST, GLCSXMMDSTT, GLCTEST, MASFP1GBTXST, SFP1GELXST
689,00 SEK
551,20 SEK excl. VAT
-
Product no 989868400
Model MCM1110SFP
Brand StarTech.com
EAN 0065030861472
Weight 0.52 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | StarTech.com Multimode / Single Mode Fiber Media Converter - Open SFP Slot - 10/100/1000Mbps RJ45 Port - LFP Supported - IEEE 802.1q Tag VLAN - (MCM1110SFP) - fibermedieomformer - 10Mb LAN, 100Mb LAN, 1GbE |
| Enhedstype | Fibermedieomformer - RJ-45 / SFP (mini-GBIC) |
| Model | Ekstern |
| Kabeltype | 10Base-T, 1000Base-LX, 1000Base-SX, 100Base-TX, 1000Base-T |
| Dataoverførselshastighed | 1 Gbps |
| Dataforbindelsesprotokol | 10Mb LAN, 100Mb LAN, 1GbE |
| Effekt | AC 120/230 V |
| Dimensioner (B x D x H) | 7 cm x 2.6 cm x 9.7 cm |
| Vægt | 200 g |
| Producentgaranti | 2 års garanti |
| Designet for | P/N: 3CSFP91ST, 453154B21ST, EXSFP1GELXST, EXSFP1GESXST, EXSFP1GETST, GLCEXSMDST, GLCLHSMDSTTA, GLCLXSMRGDST, GLCSXMMDST, GLCSXMMDSTT, GLCSXMMRGDST, GLCTEST, GLCTSTTAA, GLCZXSMRGDST, J4859CST, J8177C10PKST, J8177CST, JD089BST, JD118BST, JD119BST, MASFP1GBLX10, MASFP1GBSXST, MASFP1GBTXST, SFP1GELXST |
| General | |
|---|---|
| Color | Brown |
| Device Type | Fiber media converter |
| Form Factor | External |
| Networking | |
| Cabling Type | 10Base-T, 1000Base-LX, 1000Base-SX, 100Base-TX, 1000Base-T |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab |
| Connectivity Technology | Wired |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE |
| Data Transfer Rate | 1 Gbps |
| Features | Auto-uplink (auto MDI/MDI-X), full duplex mode, Link Fault Pass Through function (LFP), Jumbo Frames support |
| Status Indicators | Power, link/activity |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000Base-T - RJ-45 | 1 x Ethernet 1000 - SFP |
| Miscellaneous | |
| Compliant Standards | FCC, RoHS, MSA |
| MTBF | 50,000 hours |
| Power | |
| Power Consumption Operational | 5 Watt |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V |
| Dimensions & Weight | |
| Depth | 2.6 cm |
| Height | 9.7 cm |
| Weight | 200 g |
| Width | 7 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Compatibility Information | |
| Designed For | P/N: 3CSFP91ST, 453154B21ST, EXSFP1GELXST, EXSFP1GESXST, EXSFP1GETST, GLCEXSMDST, GLCLHSM10PST, GLCLHSMD10ST, GLCLHSMDST, GLCLHSMDSTTA, GLCLXSMRGDST, GLCSXMM10PST, GLCSXMMDST, GLCSXMMDSTT, GLCSXMMRGDST, GLCT10PKST, GLCTEST, GLCTST, GLCTSTTAA, GLCZXSM |
Convert and extend different networks over a Gigabit fiber cable connection using the SFP of your choice
- Convert between an RJ45 copper Ethernet connection and a fiber optic connection to extend your network cost-effectively
- Gigabit Open SFP slot to customize the network extension distance to your requirements with virtually any MSA-compliant multi or single mode transceiver
- 10/100/1000 Mbps compatible RJ45 port supports auto negotiation to bridge different network speeds and devices to a Gigabit fiber network
- Compact standalone design and wall mounting option for easy and convenient installation
- Link Fault Pass (LFP) supported
- Durable metal housing
- Auto MDIX
- Supports IEEE 802.1q Tag VLAN pass through
- 9K Jumbo Frame supported
.jpg)
.jpg)

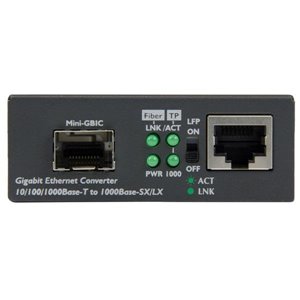

A versatile way to connect different networks
Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto negotiation to bridge different speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment..jpg)

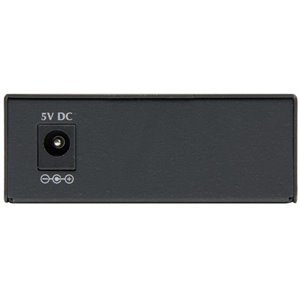

Installation is fast and easy
The unmanaged fiber media converter has a standalone design with simple plug-and-play set-up to ensure fast and easy installation. Compact in size, the converter gives you flexible installation options - including a wall mounting option.Applications
- Ideal for secure connections required by government or corporations where EMI is not acceptable
- Extend or bridge networks cost-effectively using fiber cabling
- Provide connectivity to users in an isolated area of a large complex or in a separate building
- Open SFP slot lets you customize your connection mode or distance using most MSA-Compliant transceivers
.jpg)
