StarTech.com 24 Port 1U Rackmount Cat 6 110 Patch Panel - 24 port Network Patch Panel - RJ45 Ethernet 110 type Rack Mount Patch Panel 1U (C6PANEL24) Sort

Startech 24 Port 1U Rackmount Cat 6 110 Patch Panel - 24 port Network Patch Panel - RJ45 Ethernet 110 type Rack Mount Patch Panel 1U (C6PANEL24) - Patch-panel - CAT 6 - sort - 1U - 24 porte - for P/N: RACK-18U-20-WALL-OA, RACK-21U-20-WALL-OA, RACK-24U-20-WALL-OA, RK12OD2, RK3236BKF

SEK 886,00
SEK 708,80 excl. VAT

Shipping from SEK 39,00 (PostNord Spårbart varubrev)
Product no: 993352871
Model: C6PANEL24
EAN: 0065030857475
Brand:
StarTech.com
Weight: 0.68 kg

Specifications

Produktbeskrivelse
Startech 24 Port 1U Rackmount Cat 6 110 Patch Panel - 24 port Network Patch Panel - RJ45 Ethernet 110 type Rack Mount Patch Panel 1U (C6PANEL24) - patch-panel - 1U
Produkttype
Patch-panel - CAT 6
Pakke Indhold
8 x skruer
Vægt
605 g
Farve
Sort
Antal porte
24 porte
Højde (rackenheder)
1U
Producentgaranti
2 års garanti
Designet for
P/N: RACK-18U-20-WALL-OA, RACK-21U-20-WALL-OA, RACK-24U-20-WALL-OA, RK1232WALHM, RK12OD2, RK12WALHM, RK12WALLO, RK12WALLOA, RK1520WALHM, RK15WALLO, RK15WALLOA, RK1820WALHM, RK2537BKM, RK2620WALHM, RK3236BKF, RK4236BKB, RK4242BK24, RK4242BK30, RK616WALM, RK920WALM, RK9WALM, RKQMCAB12V2, WALLMOUNT4
Specifications

Full specifications

General
Enclosure Color
Black
Height (Rack Units)
1U

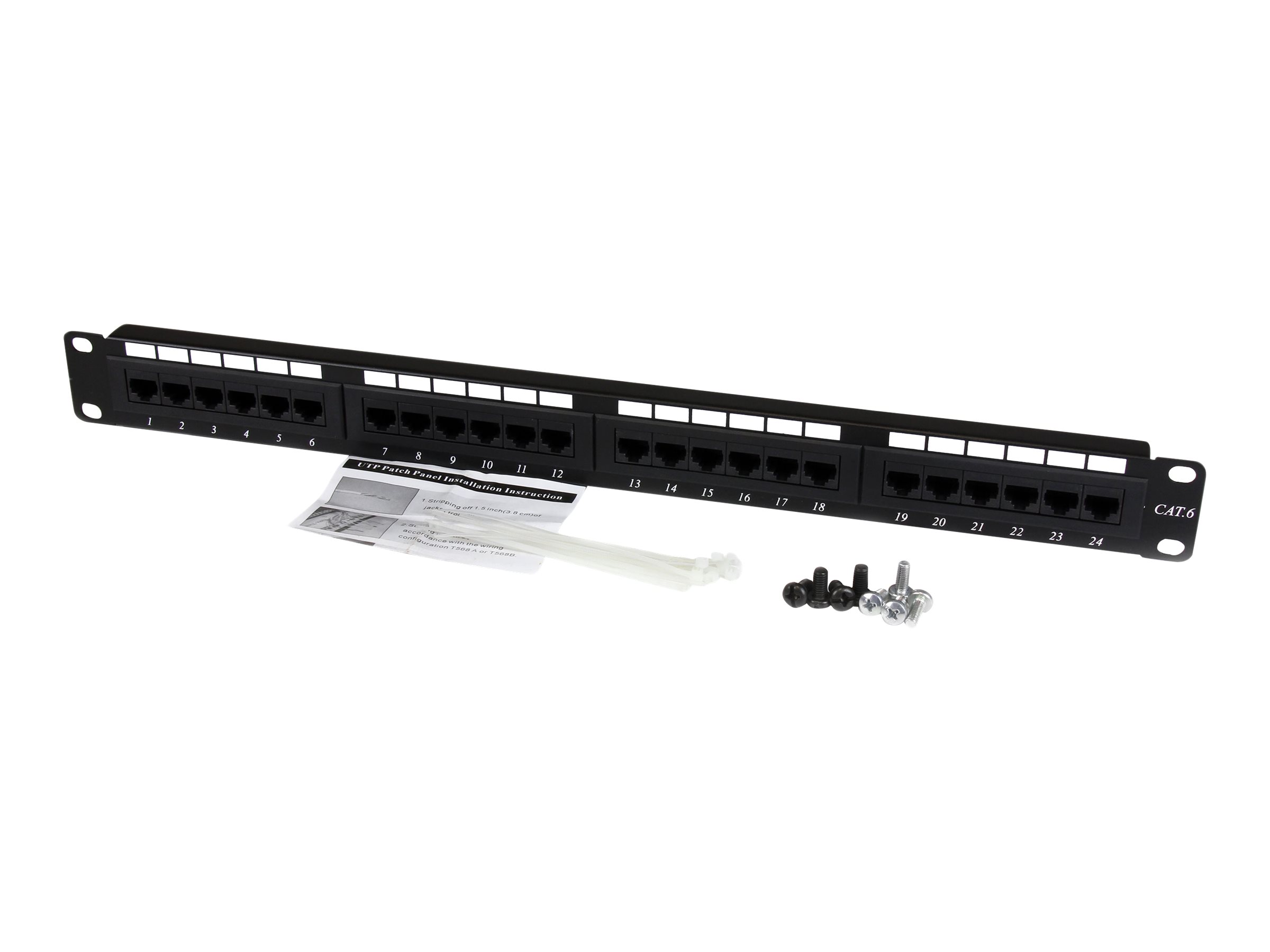

Package Content
8 x screws
Product Type
Patch panel - CAT 6
Weight
605 g
Cabling & Wiring
Connector Provided
24 x 110 female
Port Qty
24 ports
Termination Type
110 type termination
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Humidity Range Operating
10 - 65%
Max Operating Temperature
60 °C
Min Operating Temperature
-10 °C
Compatibility Information
Designed For
P/N: 2636CABINET, 2POSTRACK12, 2POSTRACK16, 2POSTRACK42, 4POSTRACK12, 4POSTRACK12A, 4POSTRACK12U, 4POSTRACK25, 4POSTRACK25U, 4POSTRACK36, 4POSTRACK42, 4POSTRACKBK, 4POSTRACKHD, 7236CABINET, CAB1019WALL, RACK-18U-20-WALL-OA, RACK-21U-20-WALL-OA, RACK-

Media

Organize up to 24 Cat6 patch cables

  • Organize up to 24 Cat6 patch cables

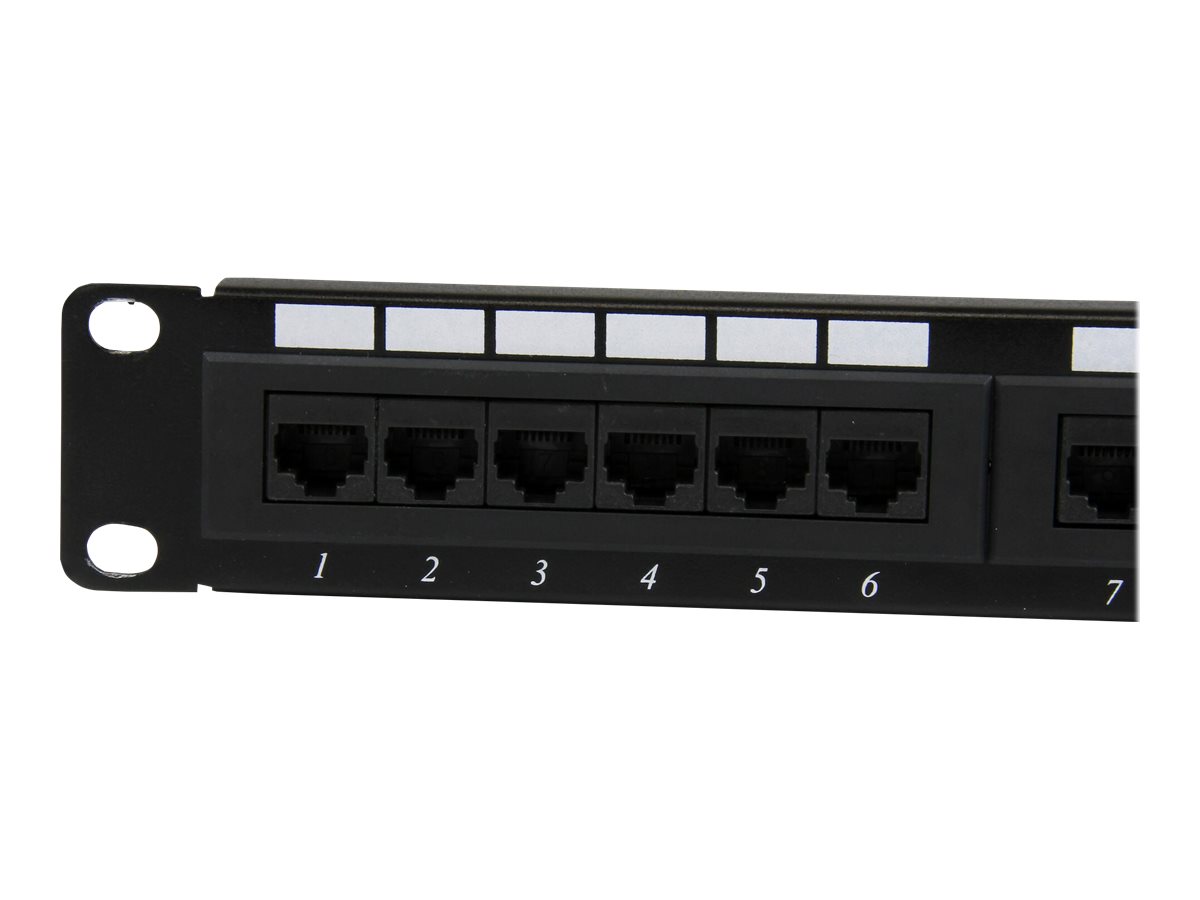

  • Clearly numbered RJ45 ports make it easy to identify your cable runs
  • Label each cable run on the writable / erasable marking surface of each port located on the front of the panel for efficient system management
  • Color coded for both T568A and T568B installations
  • Terminated using 110-type punch tool
  • Supports both Cat5e and Cat6 cables
    • Organize up to 24 Cat6 patch cables
    slide {0} of {1}, zoom in, Organize up to 24 Cat6 patch cables
    slide {0} of {1}, zoom in, Organize up to 24 Cat6 patch cables
    slide {0} of {1}, zoom in, Organize up to 24 Cat6 patch cables
    slide {0} of {1}, zoom in, Organize up to 24 Cat6 patch cables

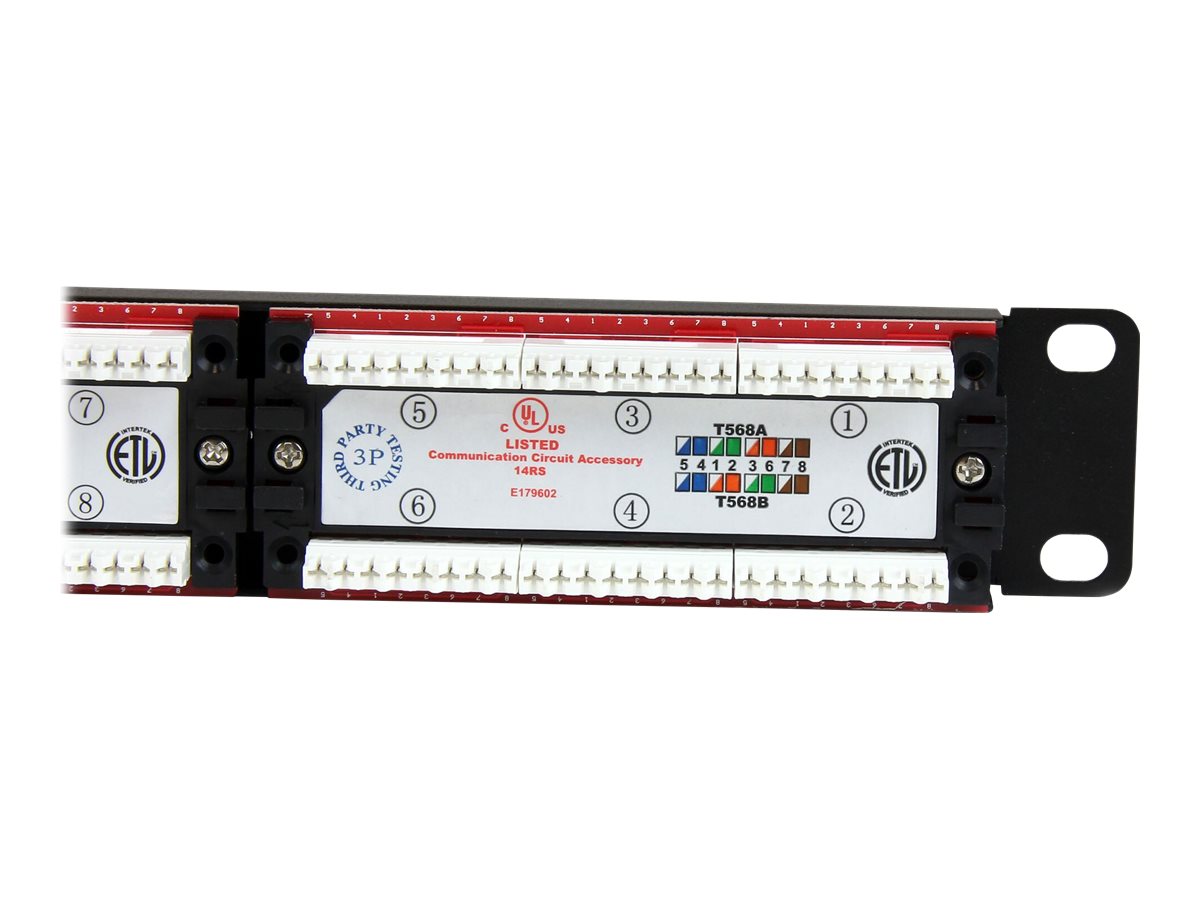

    Color coded for both T568A and T568B installations

    Color coded for both T568A and T568B installations

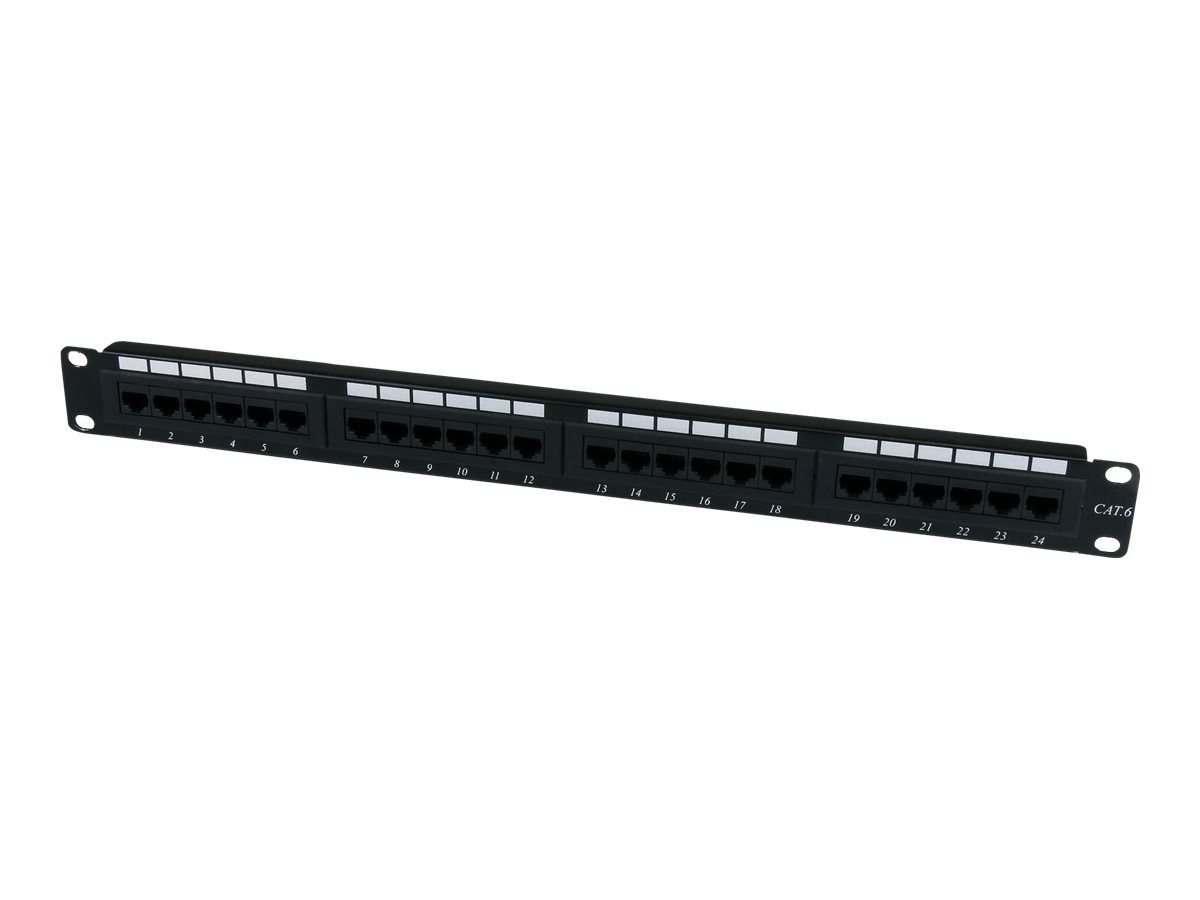

    The C6PANEL24 24-port 110-type Rack Mount Cat 6 Patch Panel is color coded for both T568A and T568B wiring providing the perfect solution for any voice or LAN application.
    Organize up to 24 Cat6 patch cables

    Organize up to 24 Cat6 patch cables

    The 24-port patch panel also offers a quick and easy way to identify your cable runs, with port numbers clearly marked on the back of each RJ45 port.
    Label each cable run on the writable / erasable marking surface of each port located on the front of the panel for efficient system management

    Label each cable run on the writable / erasable marking surface of each port located on the front of the panel for efficient system management

    This patch panel features a writeable/erasable marking surface for each port on the front of the panel for efficient system management.

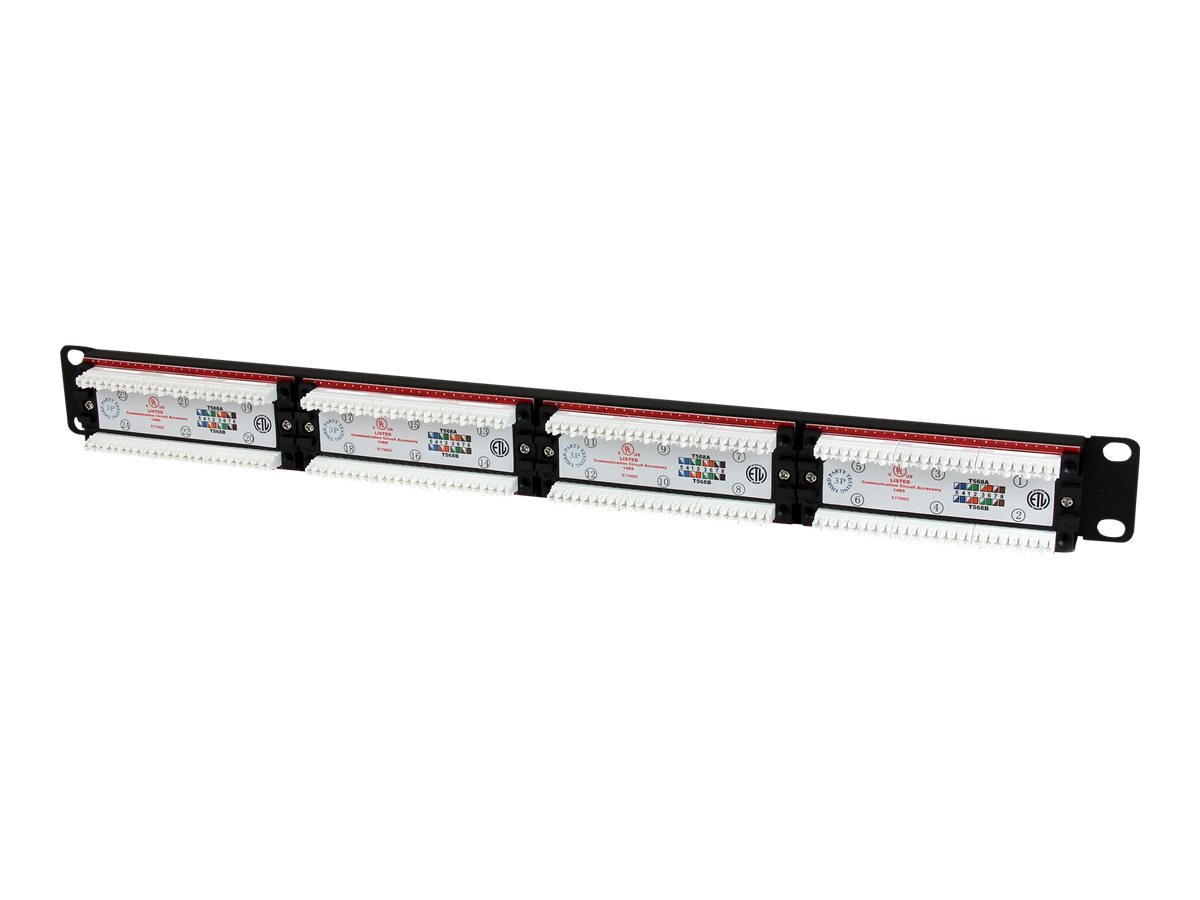

    Terminated using 110-type punch tool

    Terminated using 110-type punch tool

    For hassle-free connections, the patch panel offers straight Cat 6 ports with 110-type termination, making it easy to insert and remove your cables.

    Applications

  • For installation in 19" rack/cabinets
  • Suitable for applications that use 23-26 AWG solid state and standard network cables
  • 1000BASE-T Gigabit Ethernet, 100BASE-TX Fast Ethernet, 10BASE-T Ethernet applications
  • Voice, video and other applications
