StarTech.com PCI Express to 2 PCI & 2 PCIe Expansion Enclosure System - Full Length (PEX2PCIE4L) Busudvidelse til system
StarTech.com PCI Express to 2 PCI & 2 PCIe Expansion Enclosure System - Full Length (PEX2PCIE4L) - Busudvidelse til system - for P/N: SVA12M5NA
5 880,00 SEK
4 704,00 SEK excl. VAT
-
Product no 988492390
Model PEX2PCIE4L
Brand StarTech.com
EAN 0065030835305
Weight 3.56 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | StarTech.com PCI Express to 2 PCI & 2 PCIe Expansion Enclosure System - Full Length (PEX2PCIE4L) - busudvidelse til system |
| Produkttype | Busudvidelse til system |
| Dimensioner (B x D x H) | 38.2 cm x 13.7 cm x 14.3 cm |
| Vægt | 4 kg |
| Farve | Sort |
| Effekt | Strømforsyningsadapter - intern AC 120/230 V |
| Producentgaranti | 2 års garanti |
| Designet for | P/N: SVA12M5NA |
| General | |
|---|---|
| Depth | 13.7 cm |
| Enclosure Color | Black |
| Height | 14.3 cm |
| Product Type | System bus extender |
| Weight | 4 kg |
| Width | 38.2 cm |
| Expansion / Connectivity | |
| Compatible Slots | 2 x PCI Express x1 |
| Expansion Slots | 2 (total) / 2 (free) x PCI |
| Miscellaneous | |
| Cables Included | 1 x DVI cable - external - 91 cm |
| Compliant Standards | FCC, RoHS |
| Power | |
| Power Device | Power adapter - internal |
| Voltage Required | AC 120/230 V |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | 0 °C |
| Compatibility Information | |
| Designed For | P/N: SVA12M5NA |
Add Two PCI & Two PCI Express Expansion Card Slots to a Desktop or Laptop Computer System
- Expansion bay providing 2 PCI ports (32-bit/33 MHz), and 2 PCIe single-lane ports (250MBps)
- Self-powered PCI/PCIe expansion system with an on/off button
- Rugged steel construction satisfies demands of industrial and server environments
- Support for both 5V and 3.3V add-in full-length cards
- Complies with PCI 2.3 and PCIe 1.1 specifications
- Supports advance error reporting including ECRC support
- Support add-in cards with extended length (38cm)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Control the power state of connected PCI/PCIe cards with the self-powered chassis and easily accessible on/off button
Providing total bandwidth up to 250MBps from the PCIe x1 host controller card allows the computer to function as though the expansion chassis cards were connected directly to the motherboard..jpg)

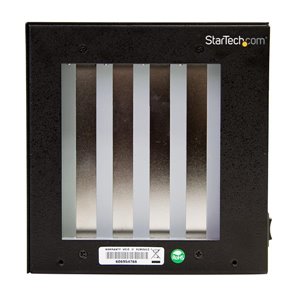

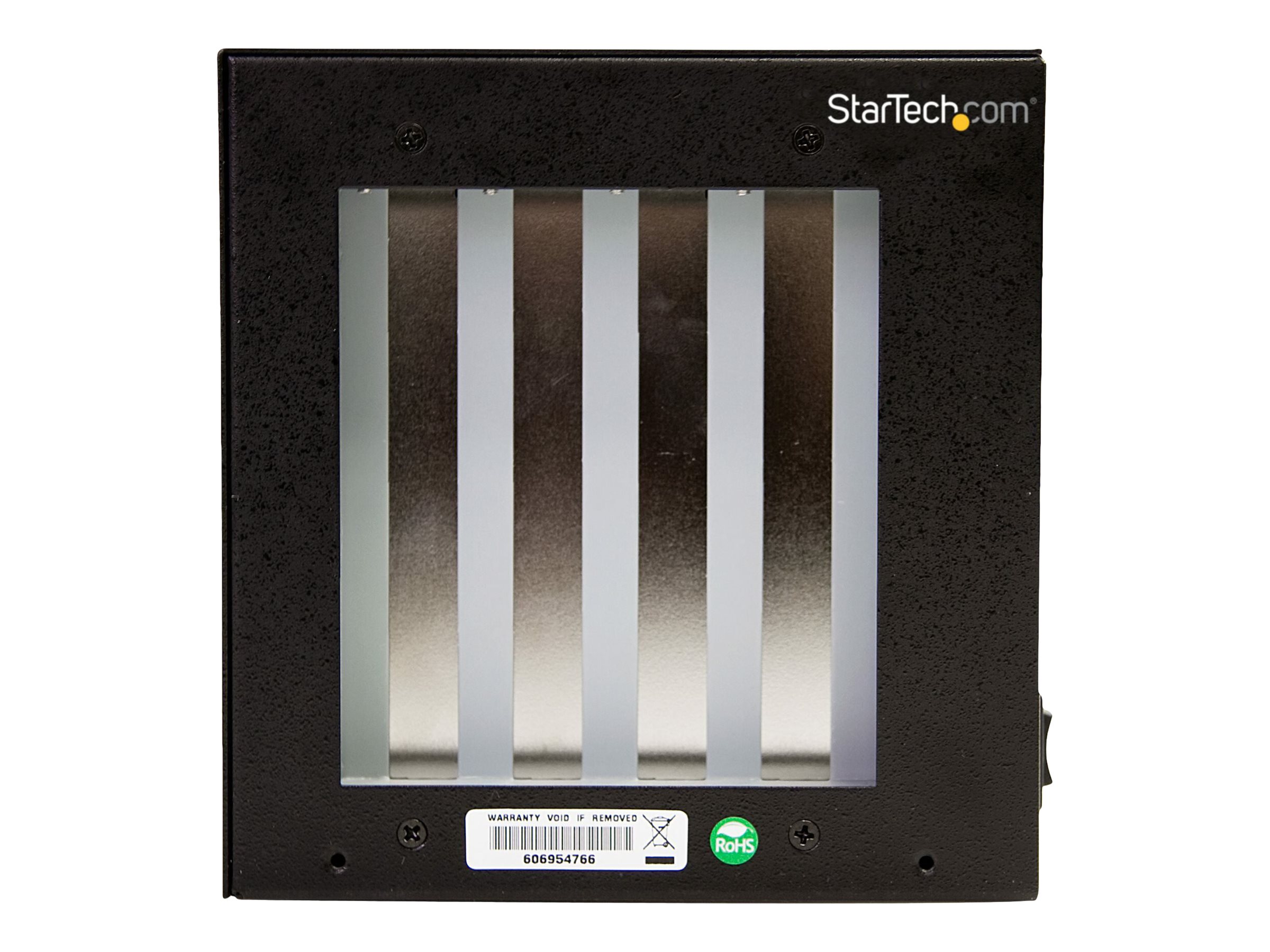

Install additional cards without opening your computer with the provided external expansion card slots
The PEX2PCIE4L PCI/PCI Express Expansion Chassis provides a quick and simple I/O expansion solution to almost any PCI Express (PCIe) enabled system. Adding PCI/PCIe cards to a server or workstation, or providing a platform to swap cards between a mobile and desktop setup is a cost-effective and time-saving solution for maximizing the I/O capabilities of your system..jpg)

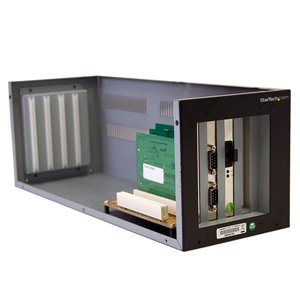

Easy installation and support for small form-factor computers with an included low-profile/half-height bracket
The external expansion chassis adds two full-length (38cm) PCI slots (32-bit/33MHz), as well as two PCIe x1 (single-lane) slots to a host computer through a single PCI Express connection.Applications
- Ideal for system testers, and engineers who regularly swap out PCI or PCIe I/O cards
- Expand an existing systems PCI and PCI Express I/O capabilities
- Expand a laptops PCI and PCI Express I/O capabilities by purchasing the optional EC2PCI adapter cable
- Add full-length or full-height cards to a small form factor system
- Provide PCI support to systems with only PCIe slots
