Produktbeskrivelse
|
Startech 2-Port PCI Express Serial Card, Dual Port PCIe to RS232 (DB9) Serial Interface Card, 16C1050 UART, Standard or Low Profile Brackets, COM Retention, For Windows & Linux - PCIe to Dual DB9 Card (21050-PC-SERIAL-CARD) - seriel adapter - PCIe 2.0 - RS-232 x 2
|
|
Enhedstype
|
Seriel adapter
|
|
Model
|
Indstikskort - lavprofil
|
|
Grænseflade (bus) type
|
PCI Express 2.0 x1
|
|
PCI-specifikationsrevision
|
PCIe 2.0
|
|
Porte
|
RS-232 x 2
|
|
Dimensioner (B x D x H)
|
1.8 cm x 6.5 cm x 6.7 cm
|
|
Dataforbindelsesprotokol
|
RS-232
|
|
Dataoverførselshastighed
|
921.6 Kbps
|
|
Overensstemmelsesstandarder
|
16C1050 UART
|
|
Farve
|
Gul
|
|
Systemkrav
|
Linux, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows 7 / 8 / 10 / 11
|
|
Producentgaranti
|
2 års garanti
|
Denmark's wildest electronics webshop is now available in Sweden
StarTech.com Seriel adapter PCI Express 2.0 x1 921.6Kbps
Startech 2-Port PCI Express Serial Card, Dual Port PCIe to RS232 (DB9) Serial Interface Card, 16C1050 UART, Standard or Low Profile Brackets, COM Retention, For Windows & Linux - PCIe to Dual DB9 Card (21050-PC-SERIAL-CARD) - Seriel adapter - PCIe 2.0 lavprofil - RS-232 x 2 - gul
SEK 642,00
SEK 513,60 excl. VAT
SEK 642,00
SEK 513,60 excl. VAT
Varenummer:
1000623092
Model:
21050-PC-SERIAL-CARD
EAN:
0065030894760
Brand:
Vægt:
0.2 kg
Specifications
Full specifications
|
General
|
|
|---|---|
|
Device Type
|
Serial adapter
|
|
Form Factor
|
Plug-in card - low profile
|
|
Interface (Bus) Type
|
PCI Express 2.0 x1
|
|
PCI Specification Revision
|
PCIe 2.0
|
|
Networking
|
|
|
Compliant Standards
|
16C1050 UART
|
|
Connectivity Technology
|
Wired
|
|
Data Link Protocol
|
RS-232
|
|
Data Transfer Rate
|
921.6 Kbps
|
|
Features
|
256-byte FIFO
|
|
Ports
|
RS-232 x 2
|
|
Status Indicators
|
Status
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
2 x RS-232 - 9 pin D-Sub (DB-9) - male (external)
|
|
Miscellaneous
|
|
|
Color
|
Yellow
|
|
Included Accessories
|
Low-profile bracket
|
|
Software / System Requirements
|
|
|
OS Required
|
Linux, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows 7 / 8 / 10 / 11
|
|
Dimensions & Weight
|
|
|
Depth
|
6.5 cm
|
|
Height
|
6.7 cm
|
|
Width
|
1.8 cm
|
|
Dimensions & Weight (Shipping)
|
|
|
Shipping Depth
|
14.4 cm
|
|
Shipping Height
|
3.8 cm
|
|
Shipping Weight
|
200 g
|
|
Shipping Width
|
20.7 cm
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - 2 years
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
5 - 95%
|
|
Max Operating Temperature
|
55 °C
|
|
Min Operating Temperature
|
0 °C
|
Media

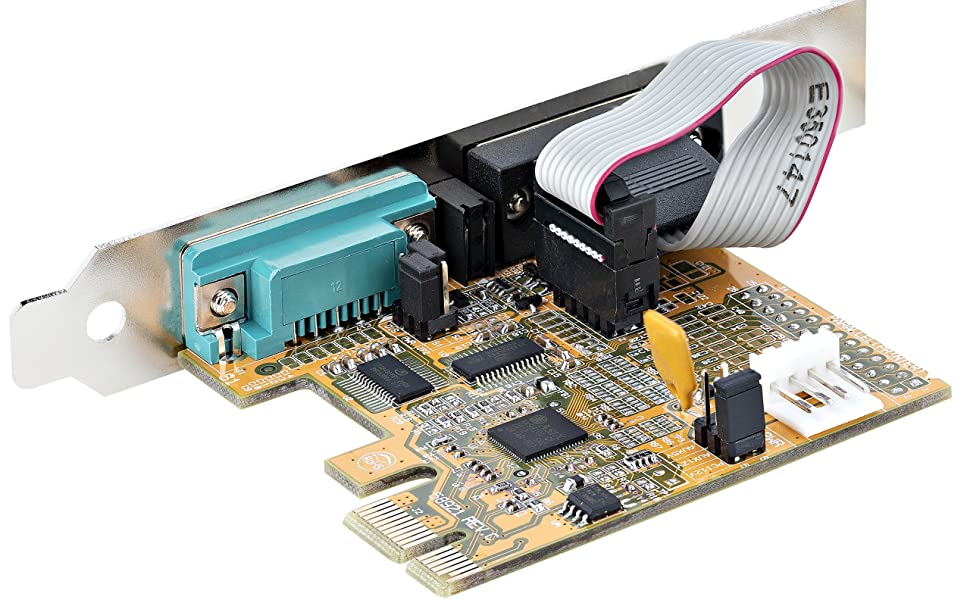

2-Port PCI Express Serial Card, Dual Port PCIe to RS232 (DB9) Serial Card, for Windows & Linux
Legacy Connectivity
Install this card to enable the continued use of legacy serial devices, preventing down time and avoiding costly upgrades. The 2-port PCIe serial card is ideal for system upgrades in a wide range of applications for logistics, manufacturing, and freight sectors, and the IT industry, such as POS equipment, security systems, A/V installations, and more.
Connect with Ease
The RS-232 card features dual ports with 16C1050 UART support, 256-byte FIFO (transmit/receive), bi-directional speeds up to 921.6 Kbps per port, low-profile brackets are included for SFF systems, and serial port LED status lights. In addition, it supports Windows and Linux systems for maximum compatibility.What's in the Box
- 1 Two-port PCIe Serial Card
- 2 Low Profile Bracket
- 1 Quick-start Guide
