StarTech.com Seriel adapter USB 2.0 921.6Kbps Kabling
StarTech.com USB to Serial RS232 Adapter - DB9 Serial DCE Adapter Cable with FTDI - Null Modem - USB 1.1 / 2.0 - Bus-Powered (ICUSB232FTN) - Seriel adapter - USB 2.0 - RS-232 - sort
565,00SEK452,00SEK excl. VAT
-
Product no 988492940
Model ICUSB232FTN
Brand StarTech.com
EAN 0065030846837
Weight 0.2 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | StarTech.com USB to Serial RS232 Adapter - DB9 Serial DCE Adapter Cable with FTDI - Null Modem - USB 1.1 / 2.0 - Bus-Powered (ICUSB232FTN) - seriel adapter - USB 2.0 - RS-232 |
| Enhedstype | Seriel adapter |
| Model | Ekstern |
| Grænseflade (bus) type | USB 2.0 |
| Porte | RS-232 |
| Dimensioner (B x D x H) | 4.2 cm x 4.5 cm x 2.2 cm |
| Længde | 1.8 m |
| Vægt | 140 g |
| Dataforbindelsesprotokol | RS-232 |
| Dataoverførselshastighed | 921.6 Kbps |
| Overensstemmelsesstandarder | USB 1.1, USB 2.0 |
| Farve | Sort |
| Systemkrav | Microsoft Windows 98 Second Edition, Microsoft Windows XP Embedded, Microsoft Windows Server 2003, Microsoft Windows CE 5.0, Microsoft Windows CE 4.2, Microsoft Windows Server 2008 R2, Microsoft Windows CE 6.0, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Linux Kernel 3.0 eller nyere, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Microsoft Windows Server 2019, kun Linux LTS-versioner, Apple MacOS X 10.6 - 10.15, Apple macOS 11.0, Apple macOS 12.0, Microsoft Windows 11, Apple macOS 13.0 |
| Producentgaranti | 2 års garanti |
| General | |
|---|---|
| Device Type | Serial adapter |
| Form Factor | External |
| Interface (Bus) Type | USB 2.0 |
| Networking | |
| Compliant Standards | USB 1.1, USB 2.0 |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-232 |
| Data Transfer Rate | 921.6 Kbps |
| Features | USB powered |
| Ports | RS-232 |
| Expansion / Connectivity | |

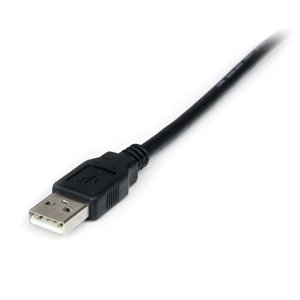

| Connections | 1 x USB - 4 pin USB Type A |

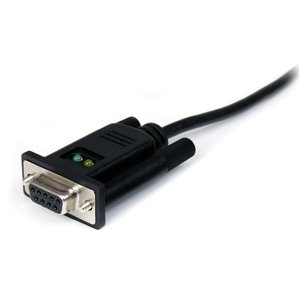

| Interfaces | 1 x RS-232 - 9 pin D-Sub (DB-9) |
| Miscellaneous | |
| Cables Included | 1 x USB cable (integrated) - 1.7 m |
| Color | Black |
| Compliant Standards | FCC, RoHS |
| Software / System Requirements | |
| OS Required | Microsoft Windows 98 Second Edition, Microsoft Windows XP Embedded, Microsoft Windows Server 2003, Microsoft Windows CE 5.0, Microsoft Windows CE 4.2, Microsoft Windows Server 2008 R2, Microsoft Windows CE 6.0, Microsoft Windows Server 2012, Microsof |
| Dimensions & Weight | |
| Depth | 4.5 cm |
| Height | 2.2 cm |
| Length | 1.8 m |
| Weight | 140 g |
| Width | 4.2 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | 0 °C |
StarTech.com USB to Null Modem RS232 DB9 Serial DCE Adapter Cable with FTDI
Add a Null Modem RS232 serial port to your laptop or desktop computer through USB.
The ICUSB232FTN FTDI USB to Null Modem Serial Adapter Cable (1-Port) converts an available USB 1.1 or 2.0 port into an RS232 Null Modem serial DB9 port, solving DCE/DTE conflicts directly, without requiring additional cross-wired serial cables or adapters.
This compact adapter features COM retention, allowing the same COM port value to automatically be re-assigned to the port if the cable is disconnected and re-connected to the host computer, or if the system is rebooted. The integrated FTDI chipset supports additional customization, advanced features, and compatibility not necessarily offered by other solutions.
The USB to Null Modem adapter is compatible with a broad list of operating systems including Windows®, Windows CE, Mac OS and Linux, making it easier to integrate into mixed environments.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The ICUSB232FTN FTDI USB to Null Modem Serial Adapter Cable (1-Port) converts an available USB 1.1 or 2.0 port into an RS232 Null Modem serial DB9 port, solving DCE/DTE conflicts directly, without requiring additional cross-wired serial cables or adapters.
This compact adapter features COM retention, allowing the same COM port value to automatically be re-assigned to the port if the cable is disconnected and re-connected to the host computer, or if the system is rebooted. The integrated FTDI chipset supports additional customization, advanced features, and compatibility not necessarily offered by other solutions.
The USB to Null Modem adapter is compatible with a broad list of operating systems including Windows®, Windows CE, Mac OS and Linux, making it easier to integrate into mixed environments.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
StarTech.com Advantage
- USB to Null Modem serial adapter corrects DTE/DCE conflicts without requiring additional adapters or cables
- The FTDI chipset is highly customizable and broadly compatible, making it the ideal solution for any setup
- Portable USB-Powered design requires no bulky power adapter or outlet
.jpg)
Product Features
- USB to Null Modem (Cross-Wired) RS232 Serial Adapter
- Integrated FTDI USB UART Chip
- Baud Rate up to 921.6Kbps
- COM Port assignments maintained across reboot
- USB-powered - no external power adapter required
- Compatible with USB 1.1 or 2.0 Ports
- Compatible with Windows®, Mac OS and Linux
- Single cable design for portability
.jpg)
Product Applications
- Perfect for IT Administrators looking to add legacy functionality to newer notebooks, PCs and servers that lack an integrated RS232 port
- Connect, monitor and control industrial/automotive sensors and equipment
- Connect bar code scanners, receipt printers and other point of sale devices
- Connect and program LED and Digital signage boards with serial communication ports
- Connect a satellite receiver, serial modem, or PDU
.jpg)
.jpg)
