StarTech.com Seriel adapter USB 921.6Kbps Kabling

StarTech.com 6 ft Professional RS422/485 USB Serial Cable Adapter w/ COM Retention (ICUSB422) - Seriel adapter - USB - RS-422/485
900,00SEK720,00SEK excl. VAT

Tilføj en RS422/485 seriel port til dit system via USB; har COM-port fastholdelse. Med ICUSB422 6ft Professional RS422/485 USB Serial Cable Adapter med COM Port Retention kan du tilslutte RS422- eller RS485-serielle enheder til din USB-aktiverede computer. Adapteren har et 9-polet (DB9) serielt han-stik samt dipswitch-kontroller til nem portkonfiguration og kræver minimal software.

  • Product no 988492426

    Model ICUSB422

    Brand StarTech.com

    EAN 0065030836548

    Weight 0.21 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse StarTech.com 6 ft Professional RS422/485 USB Serial Cable Adapter w/ COM Retention (ICUSB422) - seriel adapter - USB - RS-422/485
Enhedstype Seriel adapter
Model Ekstern
Grænseflade (bus) type USB
Porte RS-422/485
Dataforbindelsesprotokol RS-485, RS-442
Dataoverførselshastighed 921.6 Kbps
Systemkrav Microsoft Windows 98 Second Edition, Microsoft Windows XP Embedded, Microsoft Windows Server 2003, Microsoft Windows CE 5.0, Microsoft Windows CE 4.2, Microsoft Windows Server 2008 R2, Microsoft Windows CE 6.0, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Linux Kernel 3.0 eller nyere, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Microsoft Windows Server 2019, kun Linux LTS-versioner, Apple MacOS X 10.6 - 10.15, Apple macOS 11.0, Apple macOS 12.0, Microsoft Windows 11, Apple macOS 13.0
Producentgaranti 2 års garanti
General
Device Type Serial adapter
Form Factor External
Interface (Bus) Type USB
Networking
Connectivity Technology Wired
Data Link Protocol RS-485, RS-442
Data Transfer Rate 921.6 Kbps
Features USB powered
Ports RS-422/485
Expansion / Connectivity
Connections 1 x USB - 4 pin USB Type A
Interfaces 1 x RS-422/485 - 9 pin D-Sub (DB-9)
Miscellaneous
Cables Included 1 x data cable (integrated) - 1.8 m
Software / System Requirements
OS Required Microsoft Windows 98 Second Edition, Microsoft Windows XP Embedded, Microsoft Windows Server 2003, Microsoft Windows CE 5.0, Microsoft Windows CE 4.2, Microsoft Windows Server 2008 R2, Microsoft Windows CE 6.0, Microsoft Windows Server 2012, Microsof
Manufacturer Warranty
Service & Support Limited warranty - 2 years

Add an RS422/485 serial port to your system through USB; features COM port retention

  • USB to Straight-Through RS422/485 Serial Adapter
  • Supported baud rates from 300bps to 921.6 Kbps
  • Being able to rename devices no matter how many are plugged in
Add an RS422/485 serial port to your system through USB; features COM port retention
slide {0} of {1}, zoom in, Add an RS422/485 serial port to your system through USB; features COM port retention
slide {0} of {1}, zoom in, Add an RS422/485 serial port to your system through USB; features COM port retention
slide {0} of {1}, zoom in, Add an RS422/485 serial port to your system through USB; features COM port retention
slide {0} of {1}, zoom in, Add an RS422/485 serial port to your system through USB; features COM port retention
slide {0} of {1}, zoom in, Add an RS422/485 serial port to your system through USB; features COM port retention
slide {0} of {1}, zoom in, Add an RS422/485 serial port to your system through USB; features COM port retention
slide {0} of {1}, zoom in, Add an RS422/485 serial port to your system through USB; features COM port retention

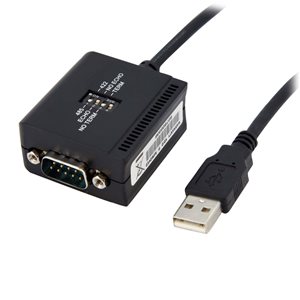

USB to Straight-Through RS422/485 Serial Adapter

USB to Straight-Through RS422/485 Serial Adapter

The ICUSB422 6 ft Professional RS422/485 USB Serial Cable Adapter with COM Port Retention lets you connect RS422 or RS485 serial devices to your USB-enabled computer. The adapter features a 9-pin (DB9) male serial connector as well as dipswitch controls for easy port configuration, and requires minimal software.

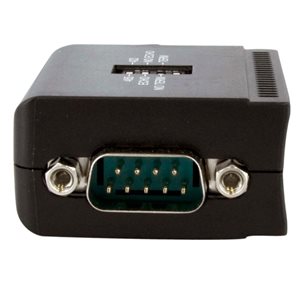

COM retention saves the assigned port settings for the device, so disconnecting/reconnecting is hassle-free

COM retention saves the assigned port settings for the device, so disconnecting/reconnecting is hassle-free

The RS422/RS485 USB Adapter is fully powered via the host USB connection and provides power to the attached serial device without requiring an external power adapter. COM Port Retention saves the assigned port settings, allowing you to disconnect and re-connect the adapter with little to no configuration required on the host computer.

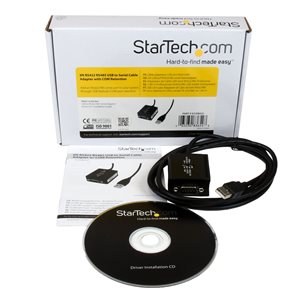

Guaranteed Reliability

Guaranteed Reliability

The ICUSB422 6 ft Professional RS422/485 USB Serial Cable Adapter with COM Port Retention is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Applications

  • Ideal for connecting serial RS422/485 devices to notebooks or tablet PC’s through an available USB port
  • Perfect for controlling/diagnosing manufacturing machines(CNC, Process Control Equipment, Bar Code Scanners, Serial Printers)
  • Security device control (key panels, cameras, card readers)
  • Great for Industrial programmers looking to test new code with serial devices
  • Adapting and expanding POS systems
  • Communicating with test and monitoring equipment.
  • Connect and program LED and Digital signage boards with serial communication ports
