StarTech.com Singlemode (SM) LC Fiber Media Converter for 1Gbe Network - 20km - - 1310nm - SFP Transceiver (ET91000SM20) Fibermedieomformer Gigabit Ethernet

StarTech.com Singlemode (SM) LC Fiber Media Converter for 1Gbe Network - 20km - Gigabit Ethernet - 1310nm - with SFP Transceiver (ET91000SM20) - Fibermedieomformer - 1GbE - 1000Base-LX, 1000Base-T - RJ-45 / LC enkelttilstand - op til 20 km - 1310 nm - for P/N: SVA12M2NEUA, SVA12M5NA

3 106,00 SEK 2 484,80 SEK excl. VAT

  • Product no 990820056

    Model ET91000SM20

    Brand StarTech.com

    EAN 0065030864947

    Weight 0.69 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse StarTech.com Singlemode (SM) LC Fiber Media Converter for 1Gbe Network - 20km - Gigabit Ethernet - 1310nm - with SFP Transceiver (ET91000SM20) - fibermedieomformer - 1GbE
Enhedstype Fibermedieomformer - RJ-45 / LC enkelttilstand
Model Ekstern
Lokalisering Australien, Nordamerika, United Kingdom, Europa
Kabeltype 1000Base-LX, 1000Base-T
Dataoverførselshastighed 2 Gbps
Optisk bølgelængde 1310 nm
Dataforbindelsesprotokol 1GbE
Maks. overføringsafstand 20 km
Effekt AC 120/230 V / DC 12 V
Dimensioner (B x D x H) 8.8 cm x 15.9 cm x 2.3 cm
Vægt 410 g
Producentgaranti 2 års garanti
Designet for P/N: SVA12M2NEUA, SVA12M5NA
General
Device Type Fiber media converter
Form Factor External
Localization Australia, North America, United Kingdom, Europe
Networking
Cabling Type 1000Base-LX, 1000Base-T
Compliant Standards IEEE 802.3z, IEEE 802.3ab
Connectivity Technology Wired
Data Link Protocol GigE
Data Transfer Rate 2 Gbps
Features Auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode, Jumbo Frames support, rugged
Max Transfer Distance 20 km
Optical Wave Length 1310 nm
Status Indicators Power, link/activity
Expansion / Connectivity
Interfaces 1 x Ethernet 1000Base-T - RJ-45 female | 1 x Ethernet 1000Base-LX - LC single-mode female x 2
Miscellaneous
Compliant Standards FCC, RoHS, WEEE, RCM
MTBF 65,000 hours
Power
Power Device External power adapter
Voltage Required AC 120/230 V / DC 12 V
Dimensions & Weight
Depth 15.9 cm
Height 2.3 cm
Weight 410 g
Width 8.8 cm
Manufacturer Warranty
Service & Support Limited warranty - 2 years
Environmental Parameters
Humidity Range Operating 10 - 90% (non-condensing)
Max Operating Temperature 50 °C
Min Operating Temperature 0 °C
Compatibility Information
Designed For P/N: SVA12M2NEUA, SVA12M5NA

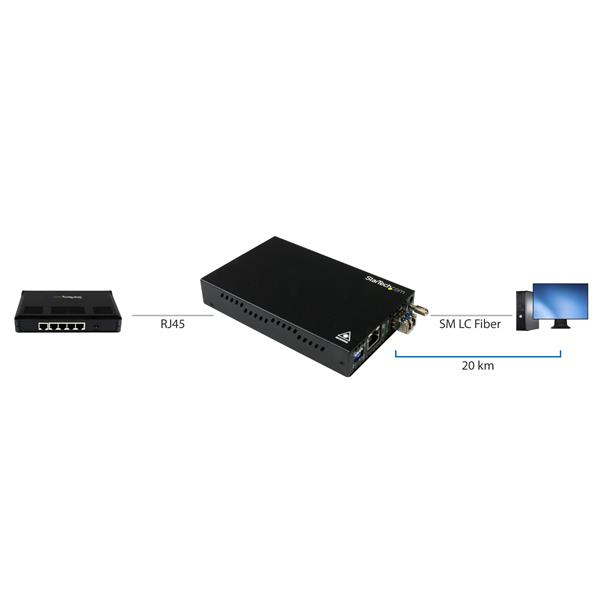

Convert and extend a Gigabit Ethernet connection up to 20 km (12.4 mi) using single-mode LC fiber cable

  • Flexible network integration, with support for standalone operation, or installation into the StarTech.com Rackmount Chassis (ETCHS2U - sold separately)
  • Converts copper to fiber and extends your network up to 20 km (12.4 mi.) using single-mode LC fiber-optic cable (1310 nm)
  • Removable SFP module (LC fiber connector) can be replaced should your network infrastructure change
  • Supports Link Fault Passthrough (LFP), Auto Laser Shutdown (ALS), and Auto MDIX
  • Up to 9.6K Jumbo Frame support
  • Supports full or half-duplex operation, as well as autonegotiation or forced mode
  • Media converter's card module is compatible with enclosures from other StarTech.com ET91000 series media converters (sold separately)
  • Compatible with Gigabit (1000Mbps) copper (IEEE 802.3ab, 1000BASE-T) and fiber (IEEE 802.3z, 1000BASE-LX) protocols
  • Fast, hassle-free setup
  • Rugged steel enclosure
Convert and extend a Gigabit Ethernet connection up to 20 km (12.4 mi) using single-mode LC fiber cable
slide {0} of {1}, zoom in, Convert and extend a Gigabit Ethernet connection up to 20 km (12.4 mi) using single-mode LC fiber cable0:39
slide {0} of {1}, zoom in, Convert and extend a Gigabit Ethernet connection up to 20 km (12.4 mi) using single-mode LC fiber cable
slide {0} of {1}, zoom in, Convert and extend a Gigabit Ethernet connection up to 20 km (12.4 mi) using single-mode LC fiber cable
slide {0} of {1}, zoom in, Convert and extend a Gigabit Ethernet connection up to 20 km (12.4 mi) using single-mode LC fiber cable
slide {0} of {1}, zoom in, Convert and extend a Gigabit Ethernet connection up to 20 km (12.4 mi) using single-mode LC fiber cable
slide {0} of {1}, zoom in, Convert and extend a Gigabit Ethernet connection up to 20 km (12.4 mi) using single-mode LC fiber cable
Flexible integration into mixed network environments

Flexible integration into mixed network environments

This versatile copper-to-fiber converter supports standalone operation, or alternatively it can be installed into the StarTech.com Rackmount Chassis (ETCHS2U - sold separately), giving you more options for integration into your existing network. The card module can also be inserted back into the ET91000SM20 enclosure, plus it’s compatible with enclosures from other StarTech.com ET91000 series media converters (sold separately).

The converter features a pre-installed Gigabit SFP transceiver with LC connectors. Should your network infrastructure change in the future, you can easily swap and replace the module to adapt the media converter to your new network requirements.

With flexible integration and connectivity up to 20 km away, you can provide network access to remote areas in other buildings, or in areas where Wi-Fi® is unreliable or unavailable.

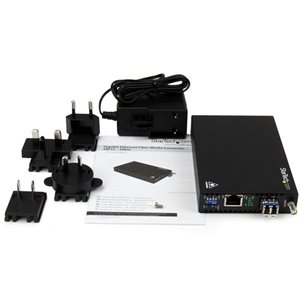

Rugged and reliable

Rugged and reliable

This heavy-duty fiber media converter is designed for maximum reliability. It features a metal (steel) enclosure, so it can withstand the demands of harsh environments such as factories or warehouses.

Plus, by relying on this more durable fiber media converter, you can reduce the strain on your existing copper-based network equipment and potentially extend the life of those devices, which helps save future expenses.

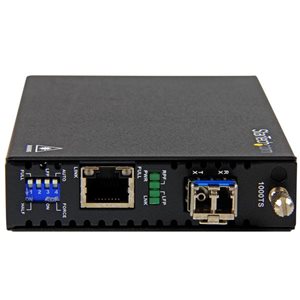

Diagnose and correct issues easily

Diagnose and correct issues easily

This high-performance media converter supports a range of network setup and diagnostic protocols (for example, Link Fault Passthrough, Auto Laser Shutdown (ALS), and Auto MDIX, so you can set up and troubleshoot your network easily.

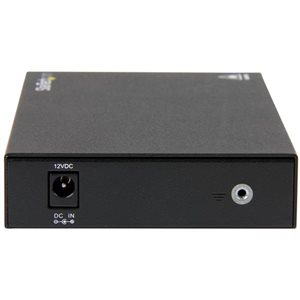

Prepare your network for the future

Prepare your network for the future

If your existing network consists of RJ45 copper-based devices and cables, you might not be ready for future network expansion. Because the newest fiber-based network switches feature SFP ports more often than RJ45 ports, you might need a converter to bridge your copper and fiber networks together.

The ET91000SM20 is backed by a StarTech.com 2-year warranty, and free lifetime technical support.
Convert and extend a Gigabit Ethernet connection up to 20 km (12.4 mi) using single-mode LC fiber cable

Applications

  • Can be installed into the StarTech.com 20U rackmount chassis (ETCHS2U - sold separately)
  • Use fiber optic cable to connect to your network from remote areas or separate buildings, at greater distances than copper (RJ45) cable allows
  • Perfect for secure connections required by government agencies where EMI isn’t acceptable
  • Easily expand the number of ports on your existing network now, or in the future — perfect for small and medium businesses
Convert and extend a Gigabit Ethernet connection up to 20 km (12.4 mi) using single-mode LC fiber cable
