StarTech.com USB 3.0 Dual Hard Drive UASP for 2.5 / 3.5in HDD / SSD - USB 3.5" SATA HDD / SSD Dock - SATA 6 Gbps Lagringskontrol
StarTech.com Dual-Bay USB 3.0 to SATA Hard Drive Docking Station, USB Hard Drive Dock, External 2.53.5 SATA IIIIII, SSDHDD Docking Station, Hot-Swap Hard Drive Bay - Top-Loading - Lagringskontrol - 2.5", 3.5" - SATA 6Gb/s - USB 3.0 - sort - for P/N: SVA12M5NA
845,00 SEK
676,00 SEK excl. VAT
-
Product no 988714647
Model SDOCK2U33
Brand StarTech.com
EAN 0065030856928
Weight 0.94 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | StarTech.com Dual-Bay USB 3.0 to SATA Hard Drive Docking Station, USB Hard Drive Dock, External 2.53.5 SATA IIIIII, SSDHDD Docking Station, Hot-Swap Hard Drive Bay - Top-Loading - lagringskontrol - SATA 6Gb/s - USB 3.0 |
| Enhedstype | Lagringskontrol - ekstern |
| Bustype | USB 3.0 |
| Farve | Sort |
| Udvidelses-båse | 2 x hot-swap - 2,5" / 3,5" delt |
| Harddiskens formfaktorkompatibilitet | 2.5", 3.5" |
| Interface | SATA 6Gb/s |
| Dataoverførselshastighed | 6 Gbit/s |
| Understøttede enheder | Harddisk, solid state drev |
| Maks. antal lagerenheder | 2 |
| Effekt | AC 120/230 V |
| Systemkrav | Linux, Microsoft Windows 2000, Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Google Chrome OS, Windows 8 (32/64 bit), Windows 8.1 (32/64 bit), Apple MacOS X 10.6 - 10.9 |
| Dimensioner (B x D x H) | 14.8 cm x 13.2 cm x 7 cm |
| Vægt | 532 g |
| Producentgaranti | 2 års garanti |
| Designet for | P/N: SVA12M5NA |
| General | |
|---|---|
| Color | Black |
| Device Type | Storage controller - external |
| Hard Drive Form Factor Compatibility | 2.5", 3.5" |
| Host Bus | USB 3.0 |
| Storage Controller | |
| Data Transfer Rate | 6 Gbit/s |
| Interface | SATA 6Gb/s |
| Max Storage Devices Qty | 2 |
| Processor | ASM1053E / VIA812 |
| Supported Devices | Hard drive, solid state drive |
| Expansion / Connectivity | |
| Bays | 2 x hot-swap - 2.5" / 3.5" shared |
| Connections | 1 x USB 3.0 - 9 pin USB Type B |
| Interfaces | 2 x SATA 6Gb/s - SATA combo |
| Miscellaneous | |
| Cables Included | 1 x USB 3.0 cable - external |
| Compliant Standards | FCC, RoHS |
| Features | Tested with up to 4TB 7200 RPM 3.5" hard drives, tested with up to 2TB 5400 RPM 2.5" hard drives |
| Power | |
| Type | Power adapter |
| Voltage Required | AC 120/230 V |
| Software / System Requirements | |
| OS Required | Linux, Microsoft Windows 2000, Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/ |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Dimensions & Weight | |
| Depth | 13.2 cm |
| Height | 7 cm |
| Weight | 532 g |
| Width | 14.8 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 5 °C |
| Compatibility Information | |
| Designed For | P/N: SVA12M5NA |

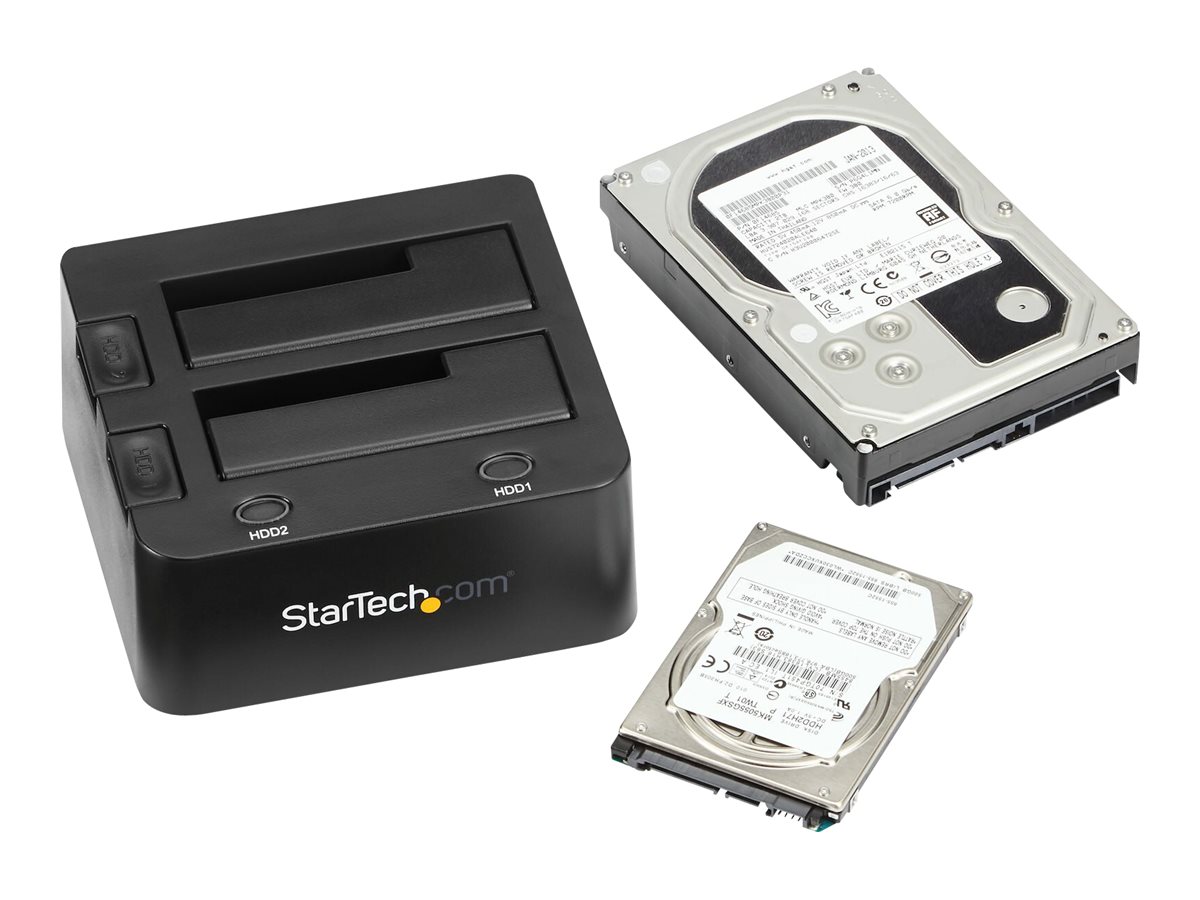

Dock two 2.5" or 3.5" SATA III SSDs/HDDs over USB 3.0 with UASP
- Support SATA III (6 Gbps) and UASP for optimal performance
- Independent power buttons for each hard drive
- Compatible with SATA revision I/II/III (1.5/3.0/6.0 Gbps) drives
- Compatible with USB 3.0/2.0/1.1 (5 Gbps / 480 Mbps / 1.5 Mbps)
- Supports both 2.5" and 3.5" form factor hard drives (HDD) and solid state drives (SSD)
- Dual bay, top slot-loading design with drive doors
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)

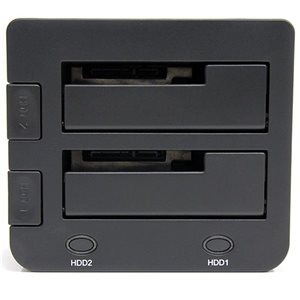

Control each drive individually
Enhanced with UASP (USB Attached SCSI Protocol), this hard drive docking station lets you get the most out of the fastest drive technologies such as SATA III (6 Gbps), solid state drives (SSD) and hybrid, drives with performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller. See our UASP testing results below for further details.
The hard drive dock features independent power buttons for each individual drive, ensuring you can operate each hard drive separately. This gives you the freedom to hot-swap one drive while transferring data to another, saving you time.
.jpg)

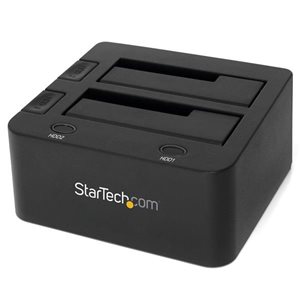

Support for all the leading operating systems
To ensure compatibility with your computer system, the SDOCK2U33 supports all of the leading operating systems, including: Microsoft Windows® (8/7/Vista/XP/Server 2008/Server 2003), Apple® OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS™..jpg)

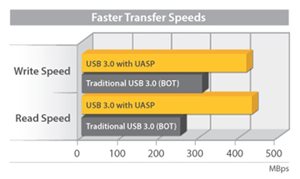

Improved data transfer performance with UASP
UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance..jpg)

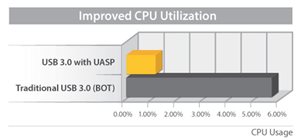

Improved CPU performance with UASP
At the same peak in testing UASP also shows an 80% reduction in required processor resources.
Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.
Applications
- System builders and I.T. specialists who need quick access to drives for imaging
- Backup data quickly to an external drive for archiving
- Transferring data from one hard drive to another
- Technicians who test or benchmark multiple hard drives
- Backup important data and easily take the drive to an offsite location for safekeeping
