Produktbeskrivelse
|
Startech 4-Port PCI Express SuperSpeed USB 3.0 Controller Card with UASP - USB 3.0 Expansion Card with SATA Power (PEXUSB3S4V) - USB-adapter - PCI Express x1 - USB 3.0 x 4
|
|
Enhedstype
|
USB-adapter
|
|
Model
|
Indstikskort
|
|
Grænseflade (bus) type
|
PCI Express x1
|
|
Porte
|
USB 3.0 x 4
|
|
Dimensioner (B x D x H)
|
1.9 cm x 7.5 cm x 6.8 cm
|
|
Vægt
|
45 g
|
|
Dataforbindelsesprotokol
|
USB, USB 2.0, USB 3.0
|
|
Dataoverførselshastighed
|
5 Gbps
|
|
Processor
|
NEC uPD720201
|
|
Overensstemmelsesstandarder
|
USB 1.1, USB 2.0, USB 3.0
|
|
Systemkrav
|
Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Microsoft Windows Server 2019
|
|
Producentgaranti
|
2 års garanti
|
|
Designet for
|
P/N: BNDTB10GI, BNDTB1394B3, BNDTB210GSFP, BNDTB310GNDP, BNDTB410GSFP, BNDTB4M2E1, BNDTBUSB3142, CFASTRWU3, HBS304A24A, S251SMU33EP, S3520BU33ER, SDOCK2ERU33, SDOCK2U313R, SDOCK2U33, SDOCK2U33EB, SDOCK2U33RE, SDOCK2U33V, SDOCK4U33, SDOCKU33BV, SDOCKU33EBV, UNI251BMU33, USB3S2ESATA3, USB3S2SAT3CB
|
Denmark's wildest electronics webshop is now available in Sweden
StarTech.com USB-adapter PCI Express x1 5Gbps
Startech 4-Port PCI Express SuperSpeed USB 3.0 Controller Card with UASP - USB 3.0 Expansion Card with SATA Power (PEXUSB3S4V) - USB-adapter - PCI Express x1 - USB 3.0 x 4 - for P/N: BNDTB10GI, BNDTB210GSFP, BNDTB410GSFP, BNDTB4M2E1, BNDTBUSB3142, HBS304A24A
SEK 552,00
SEK 441,60 excl. VAT
SEK 552,00
SEK 441,60 excl. VAT
Specifications
Full specifications
|
General
|
|
|---|---|
|
Device Type
|
USB adapter
|
|
Form Factor
|
Plug-in card
|
|
Interface (Bus) Type
|
PCI Express x1
|
|
Networking
|
|
|
Compliant Standards
|
USB 1.1, USB 2.0, USB 3.0
|
|
Connectivity Technology
|
Wired
|
|
Data Link Protocol
|
USB, USB 2.0, SuperSpeed USB 3.0
|
|
Data Transfer Rate
|
5 Gbps
|
|
Ports
|
USB 3.0 x 4
|
|
Processor / Memory
|
|
|
Processor
|
NEC uPD720201
|
|
Expansion / Connectivity
|
|
|
Compatible Slots
|
1 x PCI Express x1
|
|
Interfaces
|
4 x USB 3.0 - 9 pin USB Type A (external)
|
|
Miscellaneous
|
|
|
Compliant Standards
|
FCC, RoHS
|
|
Included Accessories
|
Low-profile bracket
|
|
Software / System Requirements
|
|
|
OS Required
|
Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Microsoft Windows Server 2019
|
|
Software Included
|
Drivers & Utilities
|
|
Dimensions & Weight
|
|
|
Depth
|
7.5 cm
|
|
Height
|
6.8 cm
|
|
Weight
|
45 g
|
|
Width
|
1.9 cm
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - 2 years
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
20 - 80%
|
|
Max Operating Temperature
|
50 °C
|
|
Min Operating Temperature
|
5 °C
|
|
Compatibility Information
|
|
|
Designed For
|
P/N: BNDTB10GI, BNDTB1394B3, BNDTB210GSFP, BNDTB310GNDP, BNDTB410GSFP, BNDTB4M2E1, BNDTBUSB3142, CFASTRWU3, HBS304A24A, S251SMU33EP, S3510BMU33, S3510SMU33, S3520BU33ER, SATDOCK2REU3, SDOCK2ERU33, SDOCK2U313R, SDOCK2U33, SDOCK2U33EB, SDOCK2U33RE, SDO
|
Media
StarTech.com 4 Port PCI Express PCIe USB 3.0 Card w/ UASP - SATA Power
Add 4 external USB 3.0 ports to a low profile or standard computer, through PCI Express.

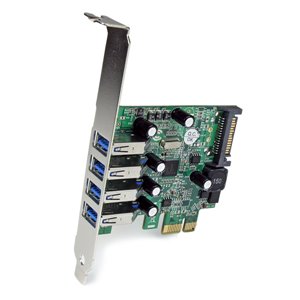

The PEXUSB3S4V PCI Express USB 3.0 Card (with SATA Power) adds 4 external USB 3.0 ports to any PCI Express-enabled computer system with support for data rates up to 5 Gbps, while remaining backward compatible with USB 2.0 / 1.x devices.

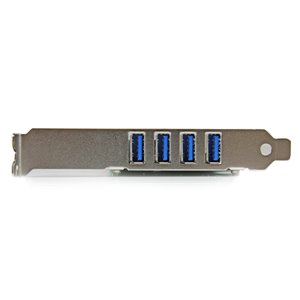

The card uses a "stacked" port layout that places the ports one on top of the other, enabling all four USB 3.0 ports to be external facing, while still allowing the card to fit into a small form factor/low profile computer system using the included low profile bracket.
Plus, with a built-in SATA power connector, each USB port can provide up to 900mA of power to devices that draw power from a host bus connection (500mA for USB 2.0) by connecting to your computer power supply.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The PEXUSB3S4V PCI Express USB 3.0 Card (with SATA Power) adds 4 external USB 3.0 ports to any PCI Express-enabled computer system with support for data rates up to 5 Gbps, while remaining backward compatible with USB 2.0 / 1.x devices.
The card uses a "stacked" port layout that places the ports one on top of the other, enabling all four USB 3.0 ports to be external facing, while still allowing the card to fit into a small form factor/low profile computer system using the included low profile bracket.
Plus, with a built-in SATA power connector, each USB port can provide up to 900mA of power to devices that draw power from a host bus connection (500mA for USB 2.0) by connecting to your computer power supply.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
StarTech.com Advantage
- USB 3.0 PCI-E card has 4 external USB 3.0 ports using a space-saving stacked layout
- Time-saving file transfers, up to 70% faster than traditional USB 3.0 when used with a UASP-supported enclosure
- Power high-powered USB devices as necessary, with the optional SATA power connector
.jpg)
Improved Performance with UASP

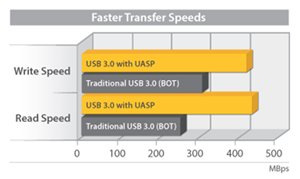

UASP is supported in Windows® 8, Server 2012 and Linux kernel 2.6.3 or later. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.0 at peak performance..jpg)

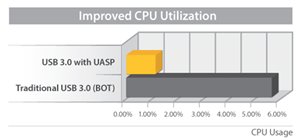

At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.
Test results were obtained using an Intel® Ivy Bridge system, StarTech.com add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.
Test results were obtained using an Intel® Ivy Bridge system, StarTech.com add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.
.jpg)
Product Features
- 4 external USB 3.0 ports in a stacked layout
- UASP support for more efficient data transfer
- Fully compliant with USB 3.0 revision 1.0 specifications and Intel xHCI rev0.95 specifications
- Built-in optional SATA power connector for bus-powered USB devices
- Optionally provides up to 900mA per USB port
- Backward compatible with USB 2.0 and USB 1.0/1.1 devices
- Compliant with PCI Express 2.0 specifications

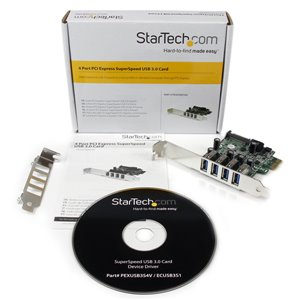

- Includes a Low Profile/half-height installation bracket
.jpg)
Product Applications
- Upgrade an older PCIe-based system with USB 3.0 connectivity, to fully utilize USB 3.0 devices
- Expand a system's USB capabilities with four additional external USB ports, for connecting additional external hard drives, CD/DVD drives, MP3 players, printers, scanners, webcams, game controllers, digital cameras, etc.
