StarTech.com USB C Multiport Adapter, HDMI 4K 30Hz or VGA Travel Dock, 5Gbps USB 3.0 Hub (USB A / USB C Ports), 100W Power Delivery, SD/MicroSD Slot, GbE, 12" (30cm) Long Attached Cable - USB C (DKT30CHVSDPD) Dockingstation
-
Product no 999862724
Model DKT30CHVSDPD
Brand StarTech.com
EAN 0065030891769
Weight 0.137 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | StarTech.com USB C Multiport Adapter, HDMI 4K 30Hz or VGA Travel Dock, 5Gbps USB 3.0 Hub (USB A / USB C Ports), 100W Power Delivery, SD/MicroSD Slot, GbE, 12" (30cm) Long Attached Cable - USB C Mini Dock - dockingstation - USB-C 3.2 Gen 1 - VGA, HDMI - 1GbE |
| Produkttype | Dockingstation |
| Docking-interface | USB-C 3.2 Gen 1 |
| Videointerfacer | VGA, HDMI |
| Dimensioner (B x D x H) | 5.9 cm x 1.4 cm |
| Vægt | 137 g |
| Farve | Space grey |
| Netværk | Gigabit Ethernet |
| Producentgaranti | 3 års garanti |
| General | |
|---|---|
| Depth | 5.9 cm |
| Enclosure Color | Space gray |
| Height | 1.4 cm |
| Product Type | Docking station |
| Weight | 137 g |
| Video | |
| Max Resolution Details | 4096 x 2160 - 30 Hz (HDMI only) | 1920 x 1080 - 60 Hz (VGA only) |
| Networking | |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, USB 3.0, USB 3.1 Gen 1, USB 3.2 Gen 1 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x SD Memory Card | 1 (total) / 1 (free) x microSD |
| Interfaces | 1 x display / video - HDMI - 19 pin HDMI Type A | 1 x display / video - VGA - 15 pin HD D-Sub (HD-15) | 1 x USB 3.2 Gen 1 with Battery Charging 1.2 - 9 pin USB Type A | 1 x USB 3.2 Gen 1 - 9 pin USB Type A | 1 x USB-C 3.2 Gen 1 - 24 pin USB-C | 1 x U |
| Miscellaneous | |
| Cables Included | 1 x USB-C cable - integrated - 30 cm |
| Compliant Standards | FCC, RoHS, USB Battery Charging Specification Rev. 1.2, UASP (USB Attached SCSI Protocol), USB Power Delivery 3.0 |
| Features | Wake on LAN, Preboot Execution Environment (PXE) support, full duplex support, DisplayPort Alt Mode, 100W power delivery |
| Input Device | SD card reader, microSD card reader |
| System Requirements | |
| OS Required | Google Chrome OS, Apple MacOS X 10.9 - 10.15, Apple macOS 11.0, Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Apple macOS 12.0, Apple macOS 13.0 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 5.9 cm |
| Shipping Height | 1.4 cm |
| Shipping Weight | 204 g |
| Shipping Width | 11 cm |
| Environmental Parameters | |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | 0 °C |
USB C Multiport Adapter, HDMI 4K 30Hz or VGA Travel Dock, 5Gbps USB 3.0 Hub (USB A / USB C Ports), 100W Power Delivery, SD/MicroSD Slot, GbE, 12" (30cm) Long Attached Cable - USB C Mini Dock (DKT30CHVSDPD)
What's in the Box
- 1 USB-C Multiport Adapter
- 1 Quick-Start Guide
Enhance Productivity
The portable docking station offers versatile video flexibility by connecting your laptop to a 4K 30Hz HDMI monitor (4096 x 2160p) or a 1080p (60Hz) VGA monitor (1920x1080) to create a powerful workstation.Connect Your Devices

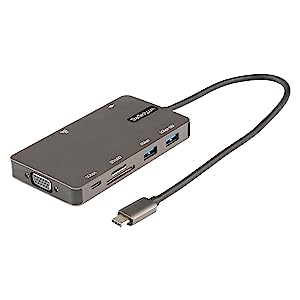

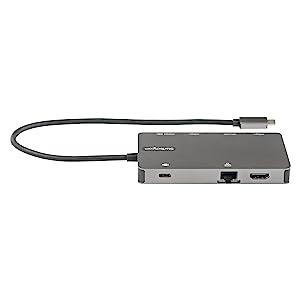

The USB-C to USB 3.1 Gen 1 hub gives you two USB-A (5Gbps) ports and one USB-C (5Gpbs) port to connect your USB devices.Built-In SD Card Reader
Access your multimedia content with ease. The multiport adapter provides direct access to your SD, SDHC and SDXC memory cards or microSD (uSD) cards.
Charge Your Laptop and Peripherals
With support for USB PD 3.0 (up to 100W), the USB Type-C multiport adapter lets you power and charge your laptop when a power adapter is connected to the USB-C power input port.
Plus, one of the USB-A (5Gbps) ports supports BC 1.2 fast charge to power your peripherals when the dock is connected to a USB-C power adapter. PD 3.0 features Fast Role Swap to prevent USB, Ethernet and video disruption when you switch power sources (USB-C power adapter to bus power).
The Gigabit Ethernet port ensures reliable wired network access with support for PXE Boot and WoL.
Specifications
| Physical Characteristics | |
|---|---|
| Color | Space Gray |
| Length | 5.9 cm |
| Width | 32.55 cm |
| Height | 1.4 cm |
