CPU
|
AMD Ryzen™ R1600 dual core (4 threads), max clock boost up to 3.1 GHz
|
|
System memory:
|
4 GB ECC DDR4 SODIMM
|
|
Expandable memory up to:
|
32GB
|
|
Drive Bays:
|
4
|
|
connections
|
2 USB 3.2 Gen, 1 expansion port (eSATA), 2 x 1GbE RJ-45
|
|
Dimensions
|
166 x 199 x 223 mm
|
|
Weight
|
2.24 Kg
|
|
System Fans
|
2 x (92 x 92 x 25 mm)
|
|
AC input power voltage
|
100 V to 240 V AC
|
|
frequency
|
50/60 Hz
|
Denmark's wildest electronics webshop is now available in Sweden

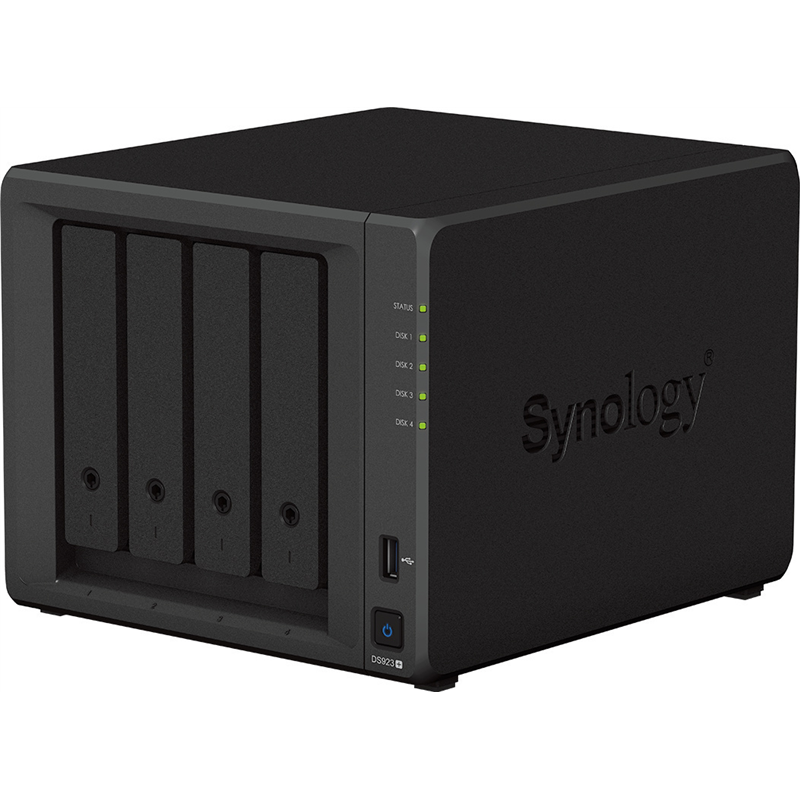

Synology Disk Station DS923 4Moduler
SYNOLOGY DS923+ DiskStation NAS AMD Ryzen Embedded R1600 4-Bay 4GB RAM
SEK 61 800,00
SEK 49 440,00 excl. VAT
SEK 61 800,00
SEK 49 440,00 excl. VAT
Synology DS923+ er en NAS-løsning med 4 bokse, som kan justeres og udvides, efterhånden som dine behov ændrer sig. Den drives af Synology DiskStation Manager (DSM) og tilbyder en fleksibel alt-i-en-løsning til datadeling, synkronisering, backup og overvågning.
Specifications
Full specifications
|
General
|
|
|---|---|
|
Depth
|
22.3 cm
|
|
Device Type
|
NAS server
|
|
Height
|
16.6 cm
|
|
Host Connectivity
|
Gigabit Ethernet
|
|
Installed Devices / Modules Qty
|
0 (installed) / 4 (max)
|
|
Total Storage Capacity
|
0 GB
|
|
Weight
|
2.24 kg ()
|
|
Width
|
19.9 cm
|
|
Processor / Memory
|
|
|
Features
|
ECC
|
|
Max Supported Qty
|
1
|
|
Max Turbo Speed
|
3.1 GHz
|
|
Number of Cores
|
Dual-Core
|
|
Processors Installed
|
1 x AMD Ryzen Embedded R1600 2.6 GHz
|
|
RAM
|
4 GB (installed) / 32 GB (supported) - DDR4
|
|
Storage Controller
|
|
|
Interface Type
|
SATA 6Gb/s / eSATA
|
|
RAID Level
|
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD
|
|
Type
|
RAID
|
|
Networking
|
|
|
Compliant Standards
|
DLNA CERTIFIED
|
|
Data Link Protocol
|
10Mb LAN, 100Mb LAN, GigE
|
|
Encryption Algorithm
|
SSL, TLS, AES-NI
|
|
Features
|
Firewall protection, hardware encryption, wake on LAN (WOL), High Availability, surveillance station, DNS server, DLNA Media Server, Apple Time Machine compatible, VPN Server, Dropbox support, mobile users support, Link Aggregation, Google Drive supp
|
|
Network / Transport Protocol
|
TCP/IP, PPTP, L2TP, IPSec, iSCSI, DNS, SFTP, OpenVPN
|
|
Network Services Compatibility
|
Microsoft Active Directory (AD), FTP, Server Message Block (SMB), Apple File Protocol (AFP), Web-based Distributed Authoring and Versioning (WebDAV), Calendaring Extensions to WebDAV (CalDAV), Server Message Block 2.0 (SMB 2.0), Server Message Block
|
|
Performance
|
Sequential read: 625 MB/s | Sequential write: 559 MB/s
|
|
Remote Management Protocol
|
SNMP, Telnet, HTTP, HTTPS, SSH, LDAP, RADIUS
|
|
Security DVR
|
|
|
Compression Format
|
H.264, H.265
|
|
Image Resolution
|
1280x720, 1920x1080, 2048x1536, 2591x1944, 3840x2160
|
|
IP Cameras Supported
|
40
|
|
Expansion / Connectivity
|
|
|
Expansion Bays
|
4 (total) / 4 (free) x hot-swap - 2.5" / 3.5"
|
|
Expansion Slots
|
2 (total) / 1 (free) x SO-DIMM 260-pin | 2 (total) / 2 (free) x M.2 2280 | 1 (total) / 1 (free) x PCI Express 3.0 x2
|
|
Interfaces
|
2 x Ethernet 1000Base-T - RJ-45 | 2 x USB 3.2 Gen 1 - Type A | 1 x eSATA
|
|
Miscellaneous
|
|
|
Cables Included
|
2 x network cable
|
|
Compliant Standards
|
VCCI, BSMI, CCC, FCC, RoHS, KC, EAC, RCM, UKCA
|
|
Features
|
Security lock slot (cable lock sold separately), built-in 2 cooling fans, Citrix Ready, scheduled power on/off, reset button, power recovery
|
|
Included Accessories
|
Accessory pack
|
|
Security Slot Type
|
Kensington security slot
|
|
Power
|
|
|
Power Device
|
External power adapter
|
|
Power Provided
|
100 Watt
|
|
Voltage Required
|
AC 100-240 V (50/60 Hz)
|
|
Software / System Requirements
|
|
|
Software Included
|
McAfee AntiVirus (Trial)
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - 3 years
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
8 - 80% RH
|
|
Max Operating Temperature
|
40 °C
|
|
Min Operating Temperature
|
0 °C
|
|
Sound Emission
|
22.9 dBA
|
Features
Pålidelig ydeevne
Op til 625/559 MB/s sekventiel læse-/skrivegennemstrømning gør filoperationer hurtige og effektive.
Alsidig netværkslagring
Udnyt indbygget fil- og fotostyring, databeskyttelse, virtualisering og overvågningsløsninger.
Hurtig og stabil tilslutning
To 1GbE-porte til enkel integration i eksisterende miljøer med valgfri 10GbE-forbindelse til at tackle mere specialiserede, båndbreddetunge applikationer.
Nem kapacitetsudvidelse
Tilføj 5 ekstra drevbakker til maksimalt 9 lagringsdrev.
