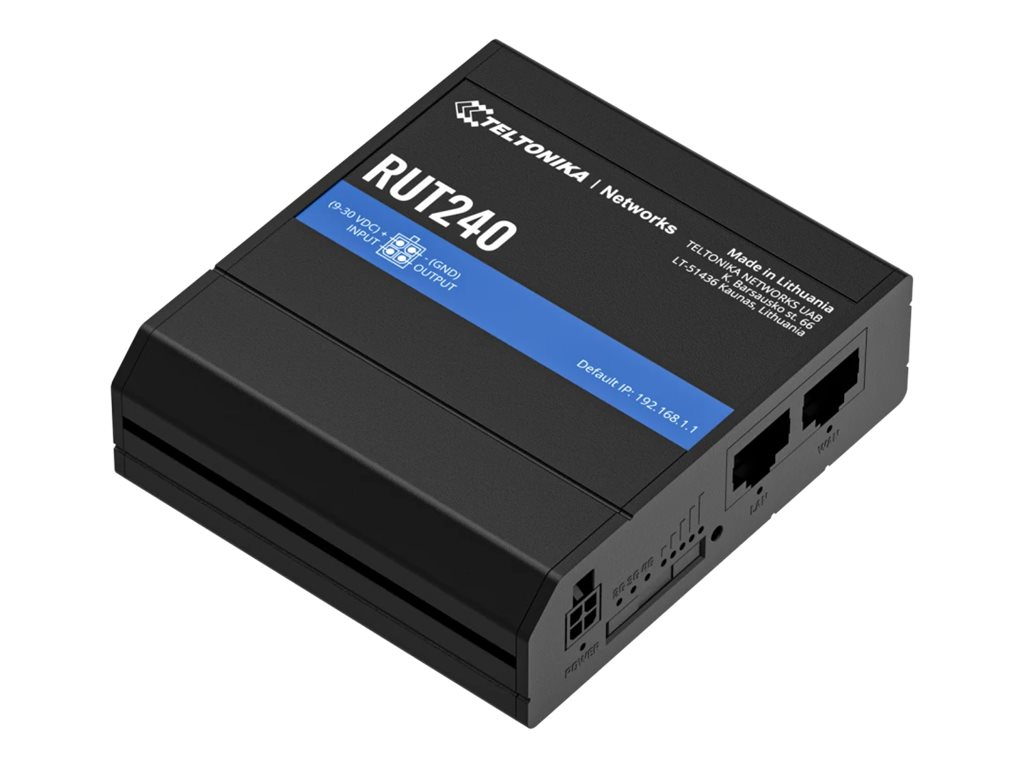

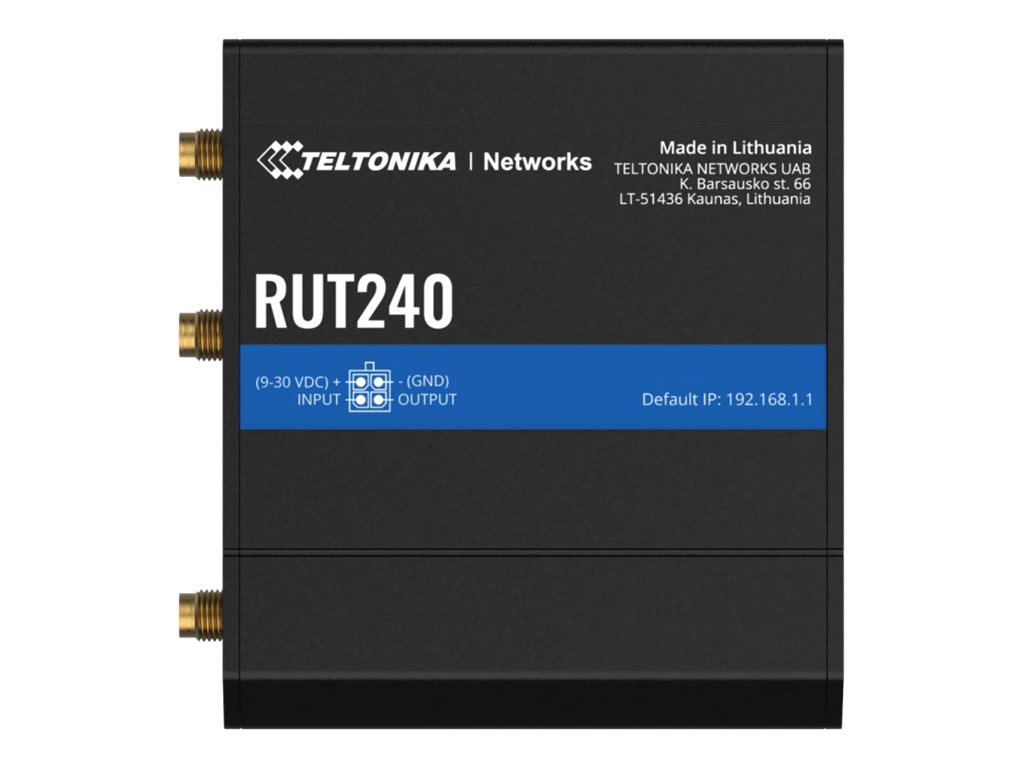

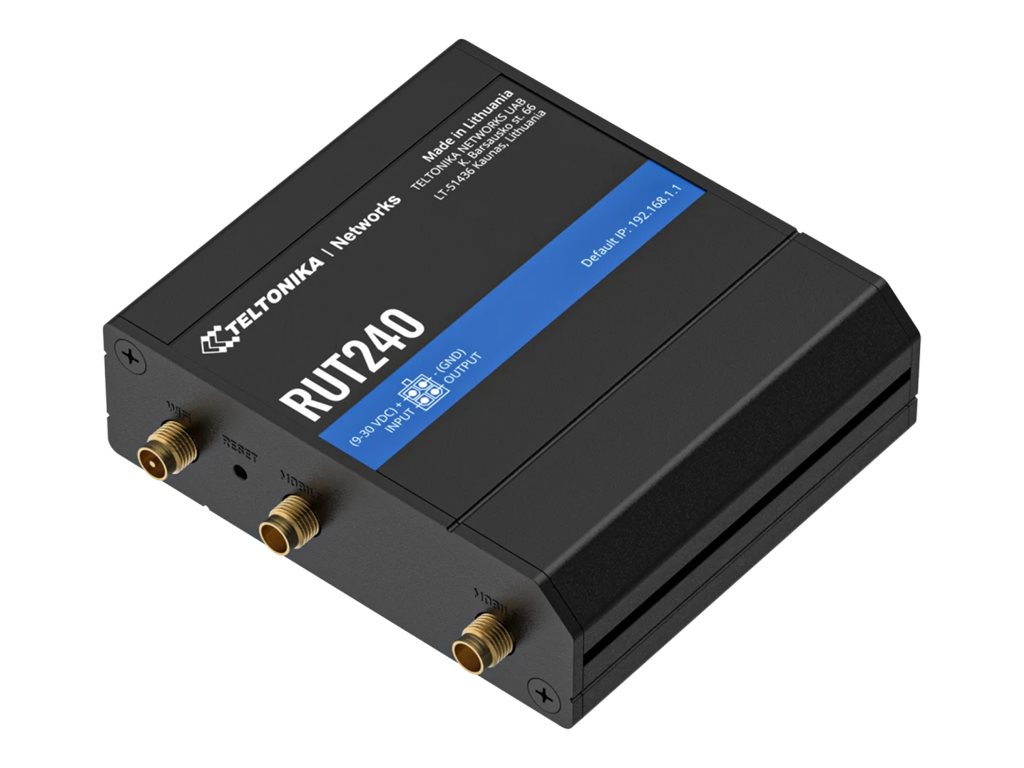

Teltonika RUT240 Trådløs router Desktop DIN monterbar på skinne
Teltonika RUT240 - - trådløs router - - WWAN - Wi-Fi - 2,4 GHz - DIN monterbar på skinne
1 883,00SEK1 506,40SEK excl. VAT
-
Product no 996027449
Model RUT240 RUT24006E000
Brand Teltonika
EAN 4779027312149
Weight 0.4 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Teltonika RUT240 - trådløs router - WWAN - Wi-Fi - desktop, DIN monterbar på skinne |
| Enhedstype | Trådløs router - trådløs mobilmodem |
| Pakningstype | Desktop, DIN monterbar på skinne |
| Mobilprotokol | GSM, GPRS, UMTS, EDGE, TD-SCDMA, LTE, DC-HSPA+ |
| Antal WAN porte | 1 |
| Dataforbindelsesprotokol | Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frekvensbånd | 2,4 GHz |
| Kapacitet | Samtidige tilslutninger: 50 |
| Netværks/overføselsprotokol | TCP/IP, PPTP, UDP/IP, L2TP, NTP, ICMP/IP, IPSec, PPPoE, ARP, SMTP, FTP, DHCP, DNS, DDNS |
| Routingprotokol | VRRP |
| Protokol til fjernadministration | SNMP 1, SNMP 2, SNMP 3, HTTP, HTTPS, SSH, CLI |
| Egenskaber | Auto-uplink (auto MDI/MDI-X), IPv6 understøttet, Tilgangspunkt, drift, firmware kan opgraderes, til vægmontering, resultat register, QoS, SMS alarmer, nulstillingsknap, IPv4 support, mærket VLAN, systemlog |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, UPnP |
| Effekt | AC 120/230 V |
| Dimensioner (B x D x H) | 7.4 cm x 2.5 cm x 8.3 cm |
| Vægt | 125 g |
| Lokalisering | Europa |
| General | |
|---|---|
| Capacity | Simultaneous connections: 50 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, UPnP, RoHS, WEEE, IP30, EN 61000-4-2:2009, EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-11:2004, EN 61000-4-3:2006+A1:2008+A2:2010, EN 60950-1:2006+A1:2010+A2:2013+A11:2009+A12:20 |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Device Type | Wireless router |
| Enclosure Type | Desktop, DIN rail mountable |
| Encryption Algorithm | DES, Triple DES, IKE, TLS, SSL 3.0, PEAP, TTLS, TKIP, MODBUS, AES-CCMP, 128-bit AES, 256-bit AES, IKEv2 |
| Features | Auto-uplink (auto MDI/MDI-X), IPv6 support, Access Point operational mode, firmware upgradable, wall mountable, event log, Quality of Service (QoS), SMS alert, reset button, IPv4 support, tagged VLAN, system log |
| Flash Memory | 16 MB |
| Frequency Band | 2.4 GHz |
| Network / Transport Protocol | TCP/IP, PPTP, UDP/IP, L2TP, NTP, ICMP/IP, IPSec, PPPoE, ARP, SMTP, FTP, DHCP, DNS, DDNS |
| Processor | 1 x Atheros MIPS 24KC 400 MHz |
| RAM | 64 MB DDR2 SDRAM |
| Remote Management Protocol | SNMP 1, SNMP 2, SNMP 3, HTTP, HTTPS, SSH, CLI |
| Routing Protocol | VRRP |
| Status Indicators | Power, status, signal strength |
| Communications | |
| Cellular Protocol | GSM, GPRS, UMTS, EDGE, TD-SCDMA, LTE, DC-HSPA+ |
| Max Transfer Rate | 150 Mbps |
| Type | Wireless cellular modem |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x SIM |

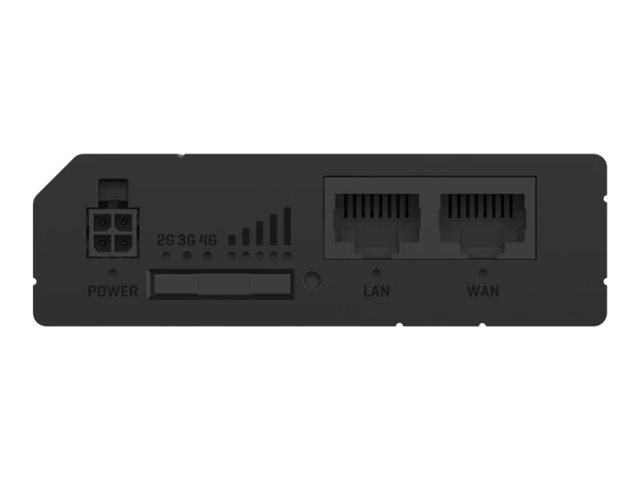

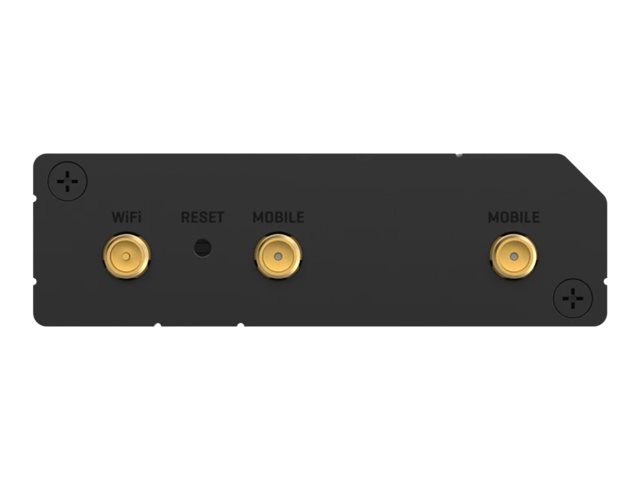

| Interfaces | LAN: 1 x 10Base-T/100Base-TX - RJ-45 | WAN: 1 x 10Base-T/100Base-TX - RJ-45 | Antenna: 2 x SMA | Antenna: 1 x RP-SMA |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 3 |
| Power | |
| Power Consumption Operational | 5 Watt |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V |
| Miscellaneous | |
| Cables Included | 1 x network cable - 1.5 m |
| Localization | Europe |
| MTBF | 310,000 years |
| Software / System Requirements | |
| OS Provided | RutOS |
| Dimensions & Weight | |
| Depth | 2.5 cm |
| Height | 8.3 cm |
| Weight | 125 g |
| Width | 7.4 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | -40 °C |
