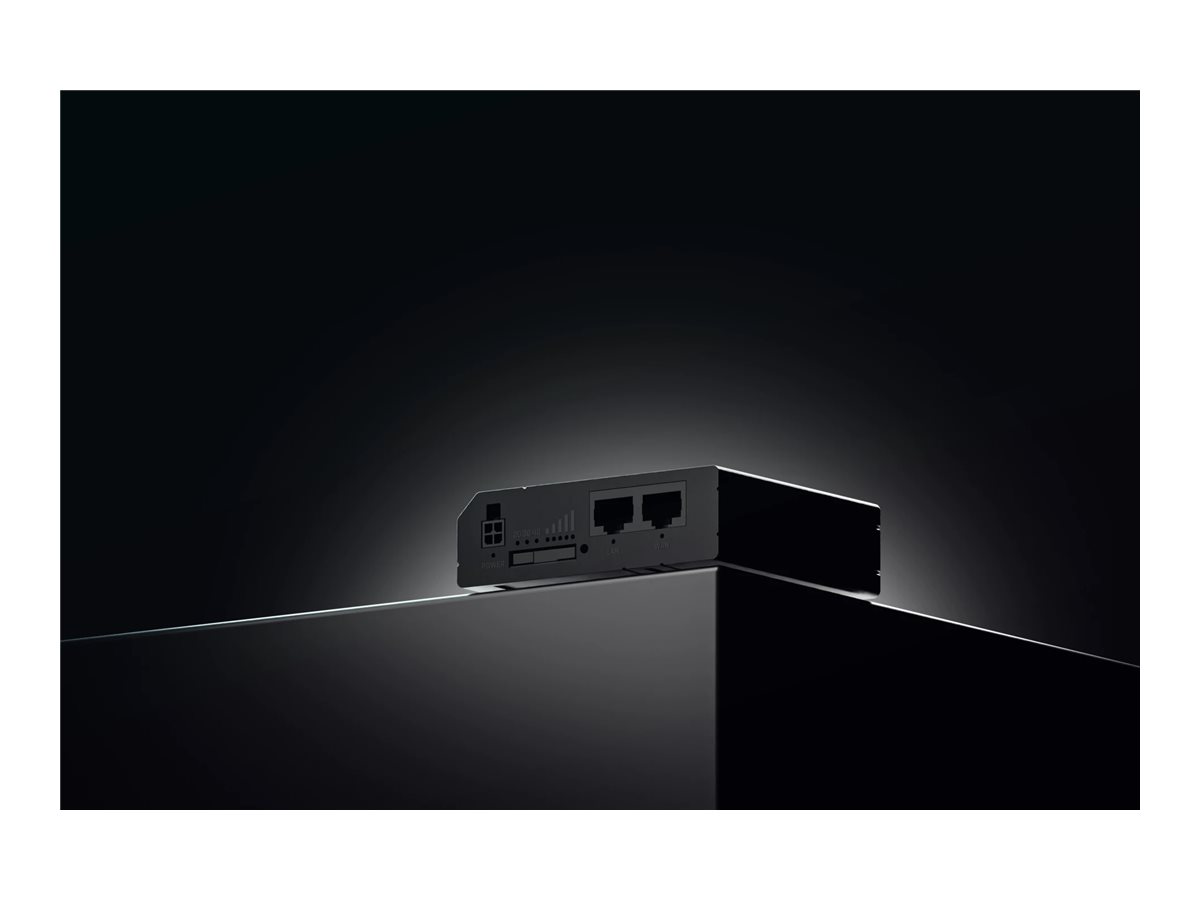

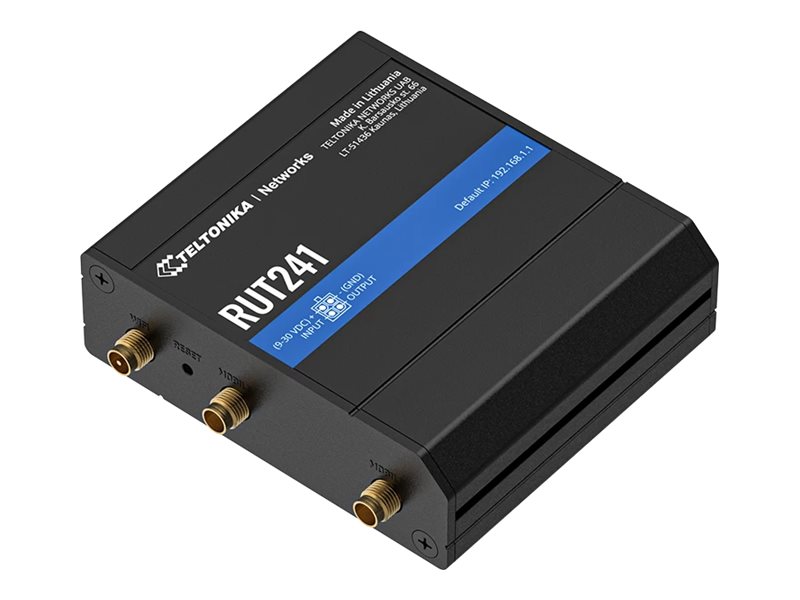

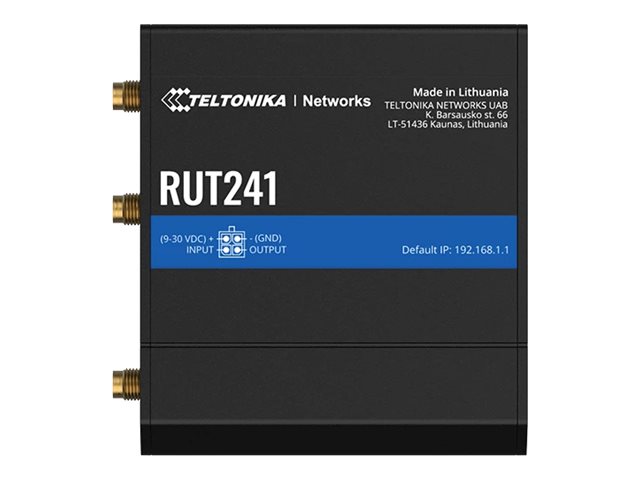

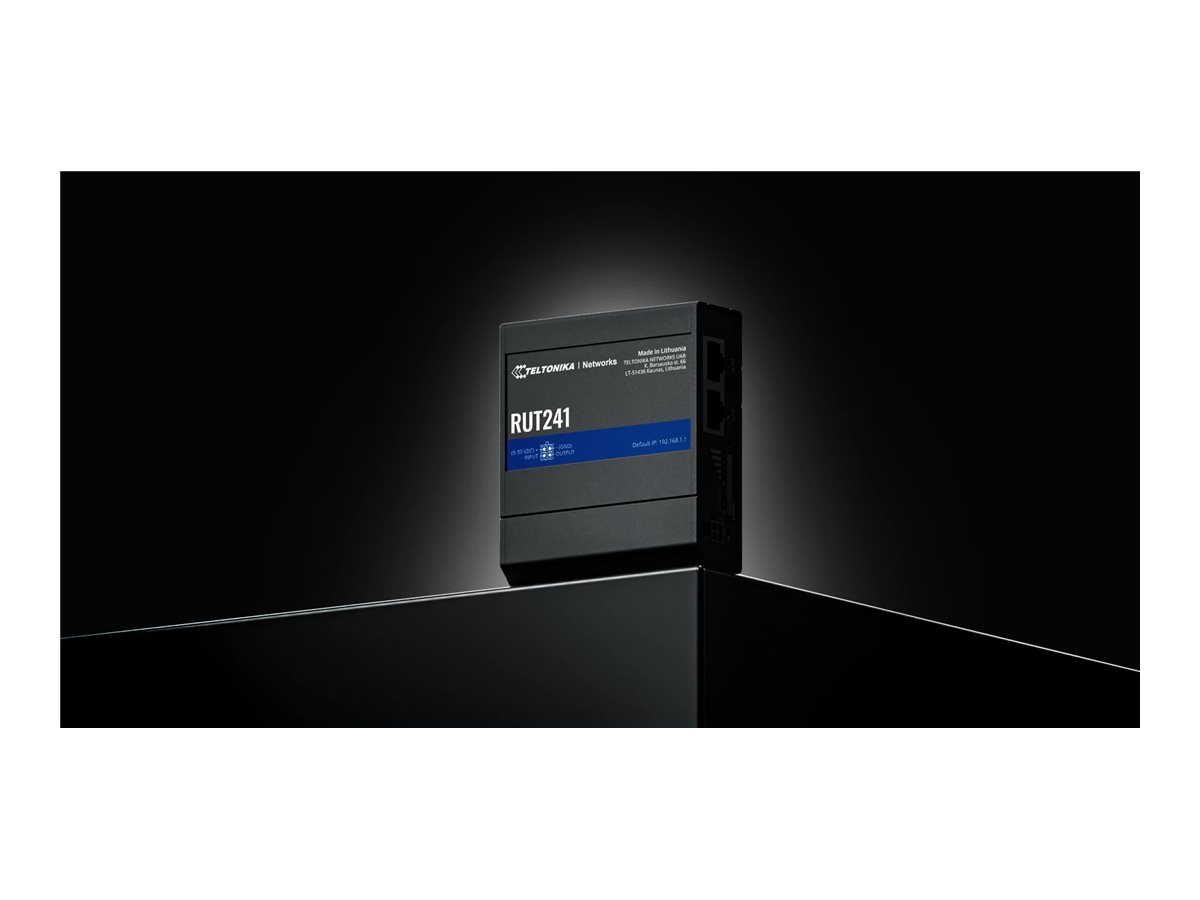

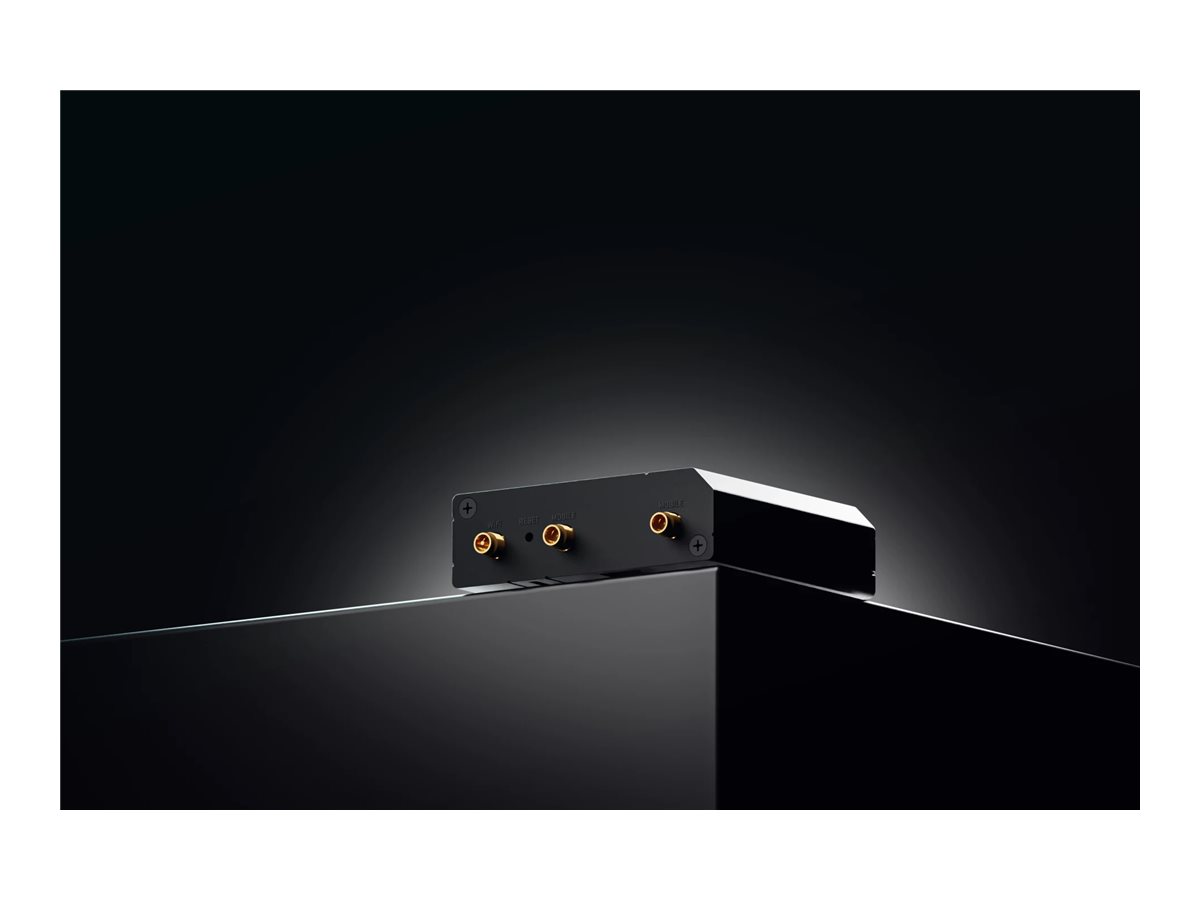

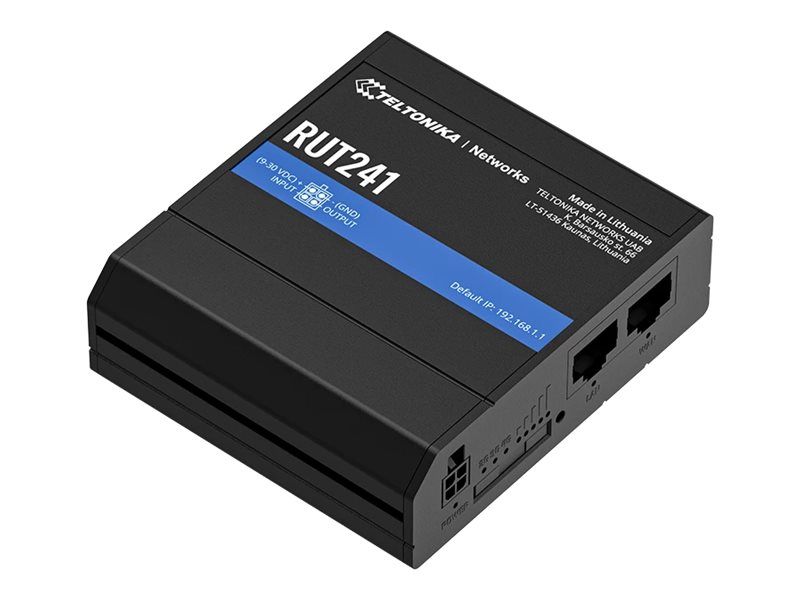

Teltonika RUT241 Trådløs router
Teltonika RUT241 - Trådløs router - WWAN 2,4 GHz - 3G, 4G, 2G - DIN monterbar på skinne
1 854,00 SEK
1 483,20 SEK excl. VAT
RUT241 er udstyret med 4G LTE, Wi-Fi og to Ethernet-porte og tilbyder ustoppelig forbindelseskontinuitet med automatisk WAN-failover. Industrielt design, kompakt størrelse, flere forbindelsesgrænseflader og kompatibilitet med RMS gør denne enhed til en fremragende pasform i mange IoT- og M2M-løsninger.
-
Product no 1000641897
Model RUT241010000
Brand Teltonika
EAN 4779051840151
Weight 0.4 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Teltonika RUT241 - trådløs router - WWAN - Wi-Fi - 3G, 4G, 2G - DIN monterbar på skinne |
| Enhedstype | Trådløs router - trådløs mobilmodem |
| Pakningstype | DIN monterbar på skinne |
| Mobilprotokol | FDD LTE, TDD LTE |
| Generation | 3G, 4G, 2G |
| Mobilbånd | LTE B3, LTE B7, LTE B20, LTE B1, LTE B5, LTE B8, LTE B40 |
| Antal WAN porte | 1 |
| Dataforbindelsesprotokol | Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frekvensbånd | 2,4 GHz |
| Kapacitet | Samtidige tilslutninger: 50 |
| Netværks/overføselsprotokol | TCP/IP, PPTP, UDP/IP, NTP, PPPoE, ARP, FTP, DHCP, DNS, L2TPv3, DDNS, IPv4, IPv6, Telnet, WireGuard, OpenVPN |
| Routingprotokol | RIP-1, RIP-2, BGP, VRRP, NHRP, OSPFv2, statisk IP routing |
| Platform | Azure, Clouds of Things, ThingWorx, Cumulocity |
| Protokol til fjernadministration | SNMP 1, SNMP 2, SNMP 3, HTTP, HTTPS, SSH, TR-069, SMTP, Modbus, ICMP, MQTT |
| VoIP-protokoller | H.323, SIP |
| Egenskaber | NAT-understøtning, aktivitet, VLAN-understøttet, WOL, auto-uplink (auto MDI/MDI-X), MAC-adresse-filtrering, Tilgangspunkt, drift, DDos attack beskyttelse, WMM support, QoS, IPSec NAT-T, DMVPN, port fremsendelse, DHCP videresendelse, SNMP fælde, GRE tunneling, FOTA, Captive Portal, passiv PoE-understøttet, Web Filtering, PSK, sort liste, hvidliste, brotilstand, Teltonika RMS, aluminiumskabinet, MQTT-support, Stealth Mode, VoIP-gennemløbssupport, RADIUS Server, SSHFS support, båndadministration, auto APN, klientadskillelse, Auto Cipher-tilstande, mobil kvotekontrol, fler-PDN, port scan prevention, SSTP-klient instanssupport, USSD support, SQM |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, UPnP |
| Dimensioner (B x D x H) | 8.3 cm x 7.4 cm x 2.5 cm |
| Vægt | 125 g |
| Lokalisering | Mellemøsten, Afrika, Europa (eksklusive Belarus, Rusland) |
| General | |
|---|---|
| Authentication Method | RADIUS, X.509 certificates, Radio Service Set ID (SSID) |
| Capacity | Simultaneous connections: 50 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, UPnP, CB, IP30, EN 61000-4-2:2009, EN 61000-4-6:2014, RED, EN 301 511 V12.5.1, EN 300 328 V2.2.2, EN 61000-4-4:2012, EN 50665:2017, EN 301 489-1 V2.2.3, ETSI EN 301 489-17 V3.2.4, EN 61000-3-3:2013+A1:2019, UKCA, IEC 62368-1: |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Device Type | Wireless router |
| Enclosure Type | DIN rail mountable |
| Encryption Algorithm | DES, RC2, CAST5, TLS, SSL 3.0, PEAP, TKIP, WPA-PSK, AES-CCMP, WPA2-PSK, WPA2-Enterprise, IKEv2, WEP, 256-bit AES-CBC, 128-bit AES-CBC, 192-bit AES-CBC, IKEv1, WPA-EAP, DESX |
| Features | NAT support, load balancing, VLAN support, wake on LAN (WOL), auto-uplink (auto MDI/MDI-X), MAC address filtering, Access Point operational mode, DDos attack prevention, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), IPSec NAT-Traversal (N |
| Flash Memory | 16 MB |
| Frequency Band | 2.4 GHz |
| Network / Transport Protocol | TCP/IP, PPTP, UDP/IP, NTP, PPPoE, ARP, FTP, DHCP, DNS, L2TPv3, DDNS, IPv4, IPv6, Telnet, WireGuard, OpenVPN |
| Processor | 1 x MediaTek MIPS 24KC 580 MHz |
| RAM | 128 MB DDR2 SDRAM |
| Remote Management Protocol | SNMP 1, SNMP 2, SNMP 3, HTTP, HTTPS, SSH, TR-069, SMTP, Modbus, ICMP, MQTT |
| Routing Protocol | RIP-1, RIP-2, BGP, VRRP, NHRP, OSPFv2, static IP routing |
| Status Indicators | Power, signal strength, LAN, connection status |
| Communications | |
| Cellular Band | LTE B3, LTE B7, LTE B20, LTE B1, LTE B5, LTE B8, LTE B40 |
| Cellular Protocol | FDD LTE, TDD LTE |
| Generation | 3G, 4G, 2G |
| Max Transfer Rate | 150 Mbps |
| Type | Wireless cellular modem |
| IP Telephony | |
| VoIP Protocols | H.323, SIP |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Platform | Azure, Clouds of Things, ThingWorx, Cumulocity |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x Mini-SIM |

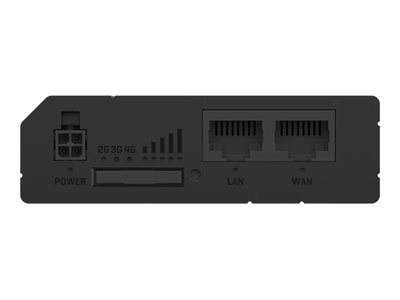

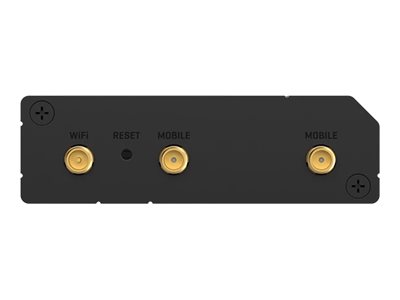

| Interfaces | LAN: 1 x 10Base-T/100Base-TX - RJ-45 | WAN: 1 x 10Base-T/100Base-TX - RJ-45 | Antenna: 2 x SMA - LTE | Antenna: 1 x RP-SMA - Wi-Fi | 1 x DI | 1 x DO |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 3 |
| Power | |
| Power Device | External power adapter - 9 Watt |
| Miscellaneous | |
| Cables Included | 1 x network cable - 1.5 m |
| Included Accessories | Wi-Fi antenna, 2 x LTE antennas, SIM card adapter kit |
| Localization | Middle East, Africa, Europe (excluding Belarus, Russia) |
| Software / System Requirements | |
| OS Provided | RutOS |
| Dimensions & Weight | |
| Depth | 7.4 cm |
| Height | 2.5 cm |
| Weight | 125 g |
| Width | 8.3 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | -40 °C |
