Udstyret med dual-SIM, 4 x Gigabit Ethernet-porte, dual-band AC Wi-Fi, Bluetooth LE og USB-grænseflader. RUTX11 leveres med al RutOS-software og sikkerhedsfunktioner. Denne enhed er perfekt til avancerede industri- og virksomhedsapplikationer.
Product no 994882580
Model RUTX11000000
Brand Teltonika
EAN 4779027312378
Weight 0.96 kg

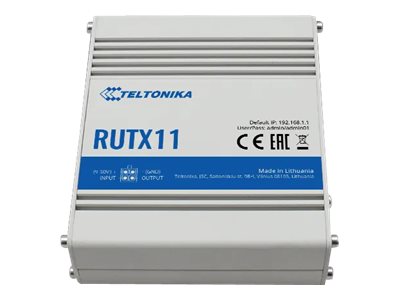

Produktbeskrivelse | Teltonika RUTX11 - trådløs router - WWAN - Bluetooth, Wi-Fi 5 - DIN monterbar på skinne |
Enhedstype | Trådløs router - trådløs mobilmodem - 4-port switch (integreret) |
Pakningstype | DIN monterbar på skinne |
Mobilprotokol | WCDMA, HSUPA, LTE, DC-HSDPA |
Antal WAN porte | 1 |
Dataforbindelsesprotokol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0, IEEE 802.11ac Wave 2 |
Netværks/overføselsprotokol | TCP/IP, UDP/IP, NTP, ICMP/IP, IPSec, PPPoE, ARP, SMTP, DHCP, DNS |
Routingprotokol | Statisk IP routing |
Protokol til fjernadministration | SNMP, Telnet, HTTP, HTTPS, SSH, JSON-RPC, NTP |
Egenskaber | Firewallbeskyttelse, NAT-understøtning, VPN support, aktivitet, VLAN-understøttet, auto-uplink (auto MDI/MDI-X), IPv6 understøttet, firmware kan opgraderes, 2T2R MIMO teknologi, IPv4 support, SMS-fjernstyring, MU-MIMO teknologi, Web Filtering, automated failover |
Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3az, UPnP, Bluetooth 4.0, IEEE 802.11ac Wave 2 |
Dimensioner (B x D x H) | 11.5 cm x 9.5 cm x 4.4 cm |
Vægt | 465 g |
General | |
---|---|
Authentication Method | Secure Shell (SSH), X.509 certificates |
Built-in Devices | LED panel, GPS |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3az, UPnP, Bluetooth 4.0, IEEE 802.11ac Wave 2 |
Connectivity Technology | Wireless, wired |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0, IEEE 802.11ac Wave 2 |
Device Type | Wireless router - 4-port switch (integrated) |
Enclosure Type | DIN rail mountable |
Encryption Algorithm | TLS, SSL 3.0 |
Features | Firewall protection, NAT support, VPN support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IPv6 support, firmware upgradable, 2T2R MIMO technology, IPv4 support, SMS remote control, MU-MIMO technology, Web Filtering, automated failove |
Flash Memory | 256 MB |
Network / Transport Protocol | TCP/IP, UDP/IP, NTP, ICMP/IP, IPSec, PPPoE, ARP, SMTP, DHCP, DNS |
Processor | 1 x ARM Cortex-A7 717 MHz |
RAM | 256 MB DDR3 SDRAM |
Remote Management Protocol | SNMP, Telnet, HTTP, HTTPS, SSH, JSON-RPC, NTP |
Routing Protocol | Static IP routing |
Status Indicators | Port status, power, signal strength, WAN, SIM status, Wi-Fi, mobile network type |
Communications | |
Cellular Protocol | WCDMA, HSUPA, LTE, DC-HSDPA |
Max Transfer Rate | 300 Mbps |
Type | Wireless cellular modem |
Expansion / Connectivity | |
Expansion Slots | 2 (total) / 2 (free) x SIM |
Interfaces | LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 | WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 | Antenna: 3 x SMA | Antenna: 3 x RP-SMA | USB: 1 x 4 pin USB Type A |
Antenna | |
Antenna | External detachable |
Antenna Qty | 6 |
Power | |
Power Consumption Operational | 18 Watt |
Power Device | External power adapter |
Miscellaneous | |
Cables Included | 1 x network cable - 1.5 m |
Included Accessories | GPS antenna, 2 x Wi-Fi antennas, 2 x LTE antennas, Bluetooth antenna |
Software / System Requirements | |
OS Provided | RutOS |
Dimensions & Weight | |
Depth | 9.5 cm |
Height | 4.4 cm |
Weight | 465 g |
Width | 11.5 cm |
Environmental Parameters | |
Humidity Range Operating | 10 - 90% (non-condensing) |
Max Operating Temperature | 75 °C |
Min Operating Temperature | -40 °C |
