Totolink LR1200 Trådløs router

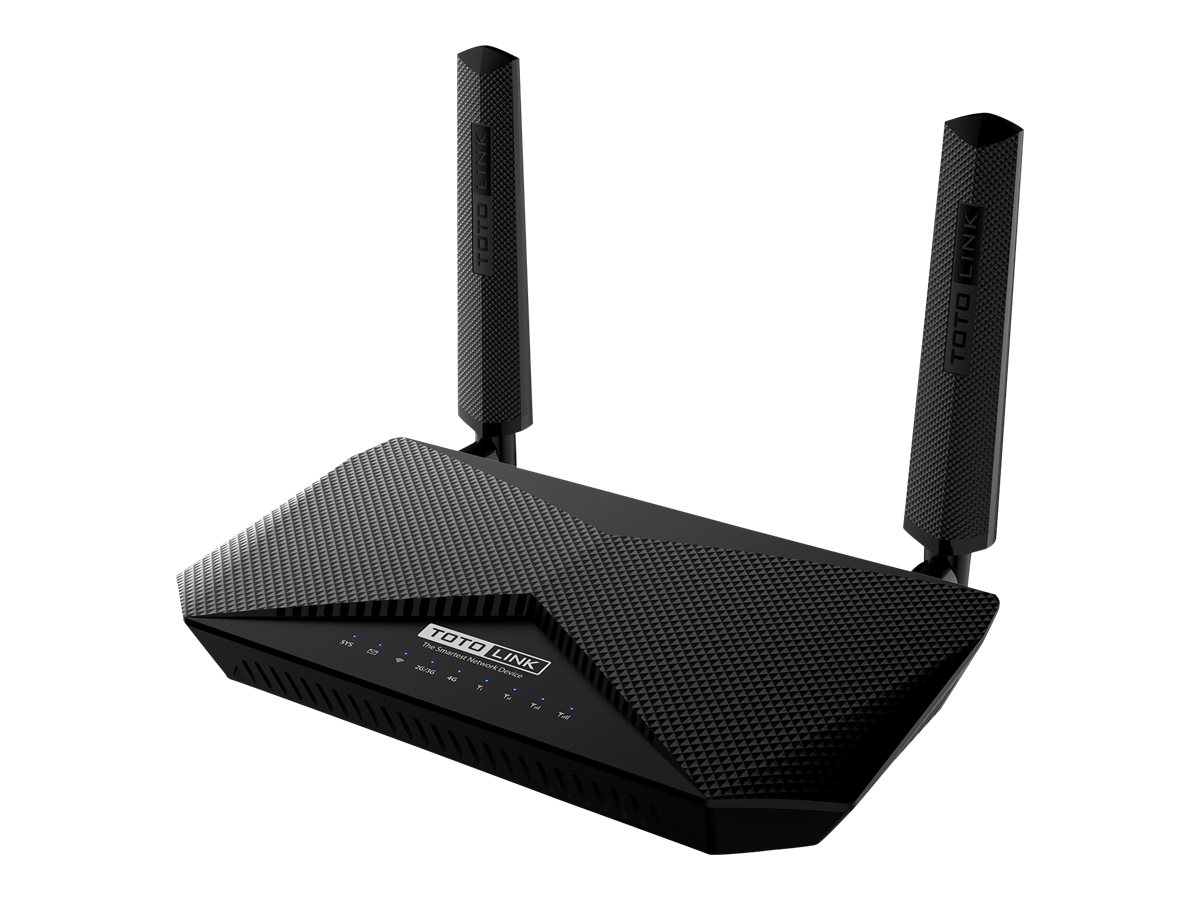

Totolink LR1200 - Trådløs router - WWAN 4-port switch - Wi-Fi 5 - Dual Band - 4G
Specifications
|
Produktbeskrivelse
|
Totolink LR1200 - trådløs router - WWAN - Wi-Fi 5 - 4G - desktop
|
|
Enhedstype
|
Trådløs router - trådløs mobilmodem - 4-port switch (integreret)
|
|
Pakningstype
|
Desktop
|
|
Mobilprotokol
|
GPRS, CDMA 2000, EDGE, TD-SCDMA, WCDMA, LTE, FDD LTE, TDD LTE
|
|
Generation
|
4G
|
|
Mobilbånd
|
LTE B2, LTE B4, LTE B3, LTE B7, LTE B20, LTE B1, LTE B5, LTE B39, LTE B8, LTE B40, LTE B41, LTE B38, WCDMA B1, WCDMA B2, WCDMA B5, WCDMA B8, WCDMA B34, WCDMA B39
|
|
Antal WAN porte
|
1
|
|
Dataforbindelsesprotokol
|
Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
|
|
Frekvensbånd
|
2,4 GHz/5 GHz
|
|
Dataoverførselshastighed
|
1167 Mbps
|
|
Præstation
|
Maksimum datahastighed (2,4 GHz): 300 Mbps<br>Maksimum datahastighed (5 GHz): 867 Mbps
|
|
Netværks/overføselsprotokol
|
PPPoE, DHCP
|
|
Routingprotokol
|
Statisk IP routing
|
|
Egenskaber
|
DHCP-understøttelse, MAC-adresse-filtrering, URL-filtrering, IP-adresse filtrering, firmware kan opgraderes, Multiple SSID support, port fremsendelse, nulstillingsknap, 8KV/15KV ESD Protector, systemlog, MAC-adresseautentificering, DMZ-support, WPS-knap, adgangskodebeskyttelse
|
|
Overensstemmelsesstandarder
|
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
|
|
Dimensioner (B x D x H)
|
18 cm x 12 cm x 25.6 cm
|
|
Systemkrav
|
UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/10
|
Full specifications
|
General
|
|
|---|---|
|
Compliant Standards
|
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Plug and Play
|
|
Connectivity Technology
|
Wireless, wired
|
|
Data Link Protocol
|
Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
|
|
Data Transfer Rate
|
1167 Mbps
|
|
Device Type
|
Wireless router - 4-port switch (integrated)
|
|
Enclosure Type
|
Desktop
|
|
Encryption Algorithm
|
128-bit WEP, 64-bit WEP, WPA, WPA2
|
|
Features
|
DHCP support, MAC address filtering, URL filtering, IP address filtering, firmware upgradable, Multiple SSID support, port forwarding, reset button, 8KV/15KV ESD Protector, system log, MAC address authentication, DMZ support, WPS button, password pro
|
|
Frequency Band
|
2.4 GHz / 5 GHz
|
|
Network / Transport Protocol
|
PPPoE, DHCP
|
|
Performance
|
Maximum data rate (2.4 GHz): 300 Mbps | Maximum data rate (5 GHz): 867 Mbps
|
|
Routing Protocol
|
Static IP routing
|
|
Status Indicators
|
System, 3G, SMS, LTE, Wi-Fi, 2G, signal
|
|
Communications
|
|
|
Cellular Band
|
LTE B2, LTE B4, LTE B3, LTE B7, LTE B20, LTE B1, LTE B5, LTE B39, LTE B8, LTE B40, LTE B41, LTE B38, WCDMA B1, WCDMA B2, WCDMA B5, WCDMA B8, WCDMA B34, WCDMA B39
|
|
Cellular Protocol
|
GPRS, CDMA 2000, EDGE, TD-SCDMA, WCDMA, LTE, FDD LTE, TDD LTE
|
|
Generation
|
4G
|
|
Type
|
Wireless cellular modem
|
|
Expansion / Connectivity
|
|
|
Expansion Slots
|
SIM
|
|
Interfaces
|
LAN: 4 x 10Base-T/100Base-TX - RJ-45 | WAN: 1 x 10Base-T/100Base-TX - RJ-45
|
|
Antenna
|
|
|
Antenna
|
External detachable and internal
|
|
Antenna Qty
|
4
|
|
Gain Level
|
5 dBi
|
|
Power
|
|
|
Power Device
|
External power adapter
|
|
Miscellaneous
|
|
|
Cables Included
|
1 x network cable
|
|
Included Accessories
|
Micro to standard SIM card adapter, nano to standard SIM card adapter
|
|
Software / System Requirements
|
|
|
OS Required
|
UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/10
|
|
Dimensions & Weight
|
|
|
Depth
|
12 cm
|
|
Height
|
25.6 cm
|
|
Width
|
18 cm
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
10 - 90% (non-condensing)
|
|
Max Operating Temperature
|
50 °C
|
|
Min Operating Temperature
|
0 °C
|
