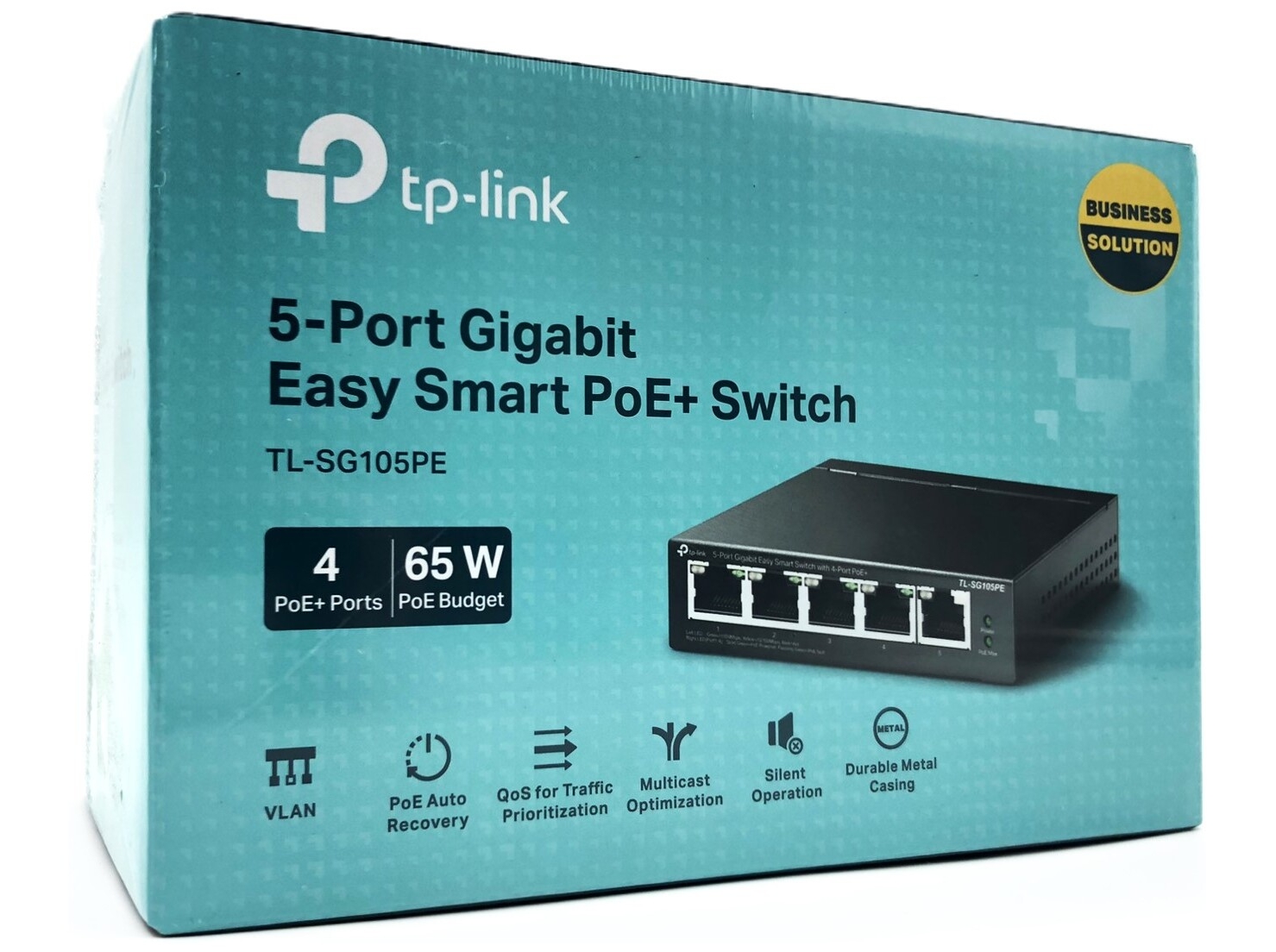

TP-Link Easy Smart TL-SG105PE Switch 5-porte Gigabit PoE+
TP-Link TL-SG105PE - Switch - Administreret - 5 x 10/100/1000 (4 PoE+) - desktop - PoE+ (65 W)
SEK 547,00
SEK 437,60 excl. VAT
SEK 547,00
SEK 437,60 excl. VAT
Product no:
996135526
Model:
TL-SG105PE
EAN:
6935364052744
Brand:
Weight:
0.79 kg
Specifications
|
Produktbeskrivelse
|
TP-Link TL-SG105PE - switch - 5 porte - Administreret
|
|
Enhedstype
|
Switch - 5 porte - Administreret
|
|
Undertype
|
Gigabit Ethernet
|
|
Porte
|
5 x 10/100/1000 (4 PoE+)
|
|
Power Over Ethernet (PoE)
|
PoE+
|
|
PoE-budget
|
65 W
|
|
Præstation
|
Omkoblingskapacitet: 10 Gbps<br>Pakkevideresendelseshastighed: 7,44 Mpps
|
|
Kapacitet
|
Pakkebufferstørrelse: 1,5 MB<br>Prioritetskøer: 4<br>Virtuelle grænseflader (VLANs): 32
|
|
MAC adresse table størrelse
|
2K indtastningshukommelse
|
|
Jumborammesupport
|
16KB
|
|
Routingprotokol
|
IGMPv2, IGMP, IGMPv3
|
|
Egenskaber
|
Auto-negotiation, auto-uplink (auto MDI/MDI-X), portspejling, gem og send, Cable Diagnostics Function, blæserløs, løkkeforebyggelse, mærket VLAN, DSCP support, Storm Control, tempogrænse, Static Link Aggregation, forlængelsestilstand
|
|
Overensstemmelsesstandarder
|
IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
|
Full specifications
|
General
|
|
|---|---|
|
Capacity
|
Packet buffer size: 1.5 MB | Priority queues: 4 | Virtual interfaces (VLANs): 32
|
|
Compliant Standards
|
IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
|
|
Device Type
|
Switch - 5 ports - managed
|
|
Enclosure Type
|
Desktop
|
|
Features
|
Auto-negotiation, auto-uplink (auto MDI/MDI-X), port mirroring, store and forward, Cable Diagnostics Function, fanless, loop prevention, tagged VLAN, DiffServ Code Point (DSCP) support, Storm Control, rate limit, Static Link Aggregation, extend mode
|
|
Jumbo Frame Support
|
16KB
|
|
MAC Address Table Size
|
2K entries
|
|
Performance
|
Switching capacity: 10 Gbps | Packet forwarding rate: 7.44 Mpps
|
|
PoE Budget
|
65 W
|
|
Ports
|
5 x 10/100/1000 (4 PoE+)
|
|
Power Over Ethernet (PoE)
|
PoE+
|
|
Routing Protocol
|
IGMPv2, IGMP, IGMPv3
|
|
Status Indicators
|
Status
|
|
Subtype
|
Gigabit Ethernet
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
5 x 1000Base-T RJ-45 4 ports (PoE+) - 30 W
|
|
Power
|
|
|
Power Consumption Operational
|
75.16 Watt
|
|
Power Device
|
External power adapter
|
|
Power Provided
|
DC 53.5 V - 1.31 A
|
|
Miscellaneous
|
|
|
Compliant Standards
|
FCC, RoHS
|
|
Included Accessories
|
Rubber feet
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
10 - 90% (non-condensing)
|
|
Humidity Range Storage
|
5 - 95% (non-condensing)
|
|
Max Operating Temperature
|
40 °C
|
|
Max Storage Temperature
|
70 °C
|
|
Min Operating Temperature
|
0 °C
|
|
Min Storage Temperature
|
-40 °C
|
