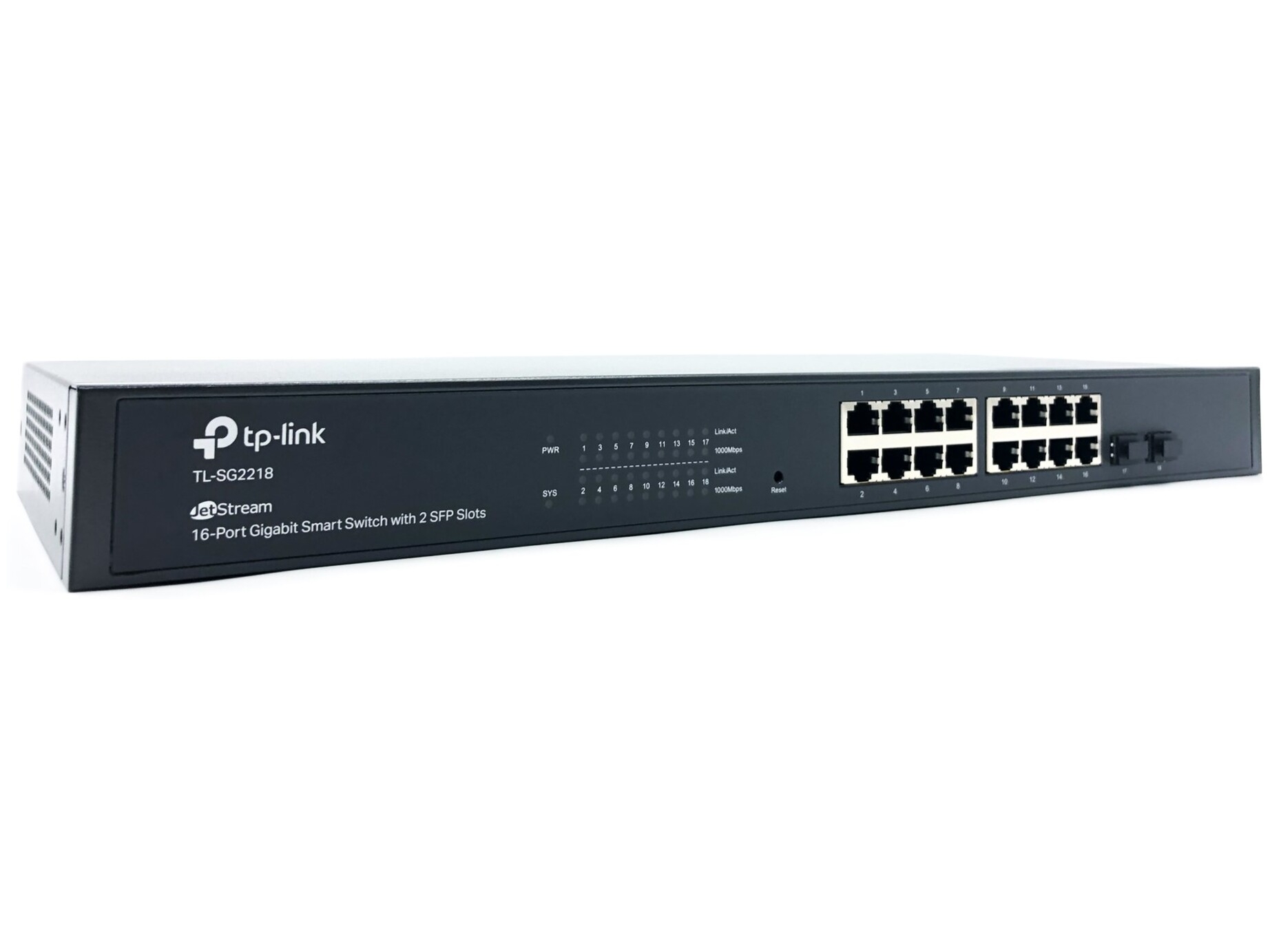

TP-Link JetStream TL-SG2218 Switch 16-porte Gigabit

TP-Link JetStream TL-SG2218 - V1 - switch - smart - 16 x 10/100/1000 + 2 x SFP - monterbar på stativ
1 534,00SEK1 227,20SEK excl. VAT

  • Product no 998128618

    Model TL-SG2218

    Brand
    Go to brand's website

    EAN 6935364006419

    Weight 2.53 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse TP-Link JetStream TL-SG2218 - V1 - switch - 16 porte - smart - monterbar på stativ
Enhedstype Switch - 16 porte - smart
Pakningstype Monterbar på stativ
Undertype Gigabit Ethernet
Porte 16 x 10/100/1000 + 2 x SFP
Præstation Omkoblingskapacitet: 36 Gbps<br>Videresendelseshastighed: 26.78 Mpps
MAC adresse table størrelse 8K indtastningshukommelse
Jumborammesupport 9KB
Routingprotokol IGMPv2, IGMP, IGMPv3, MLDv2, MLD
Protokol til fjernadministration SNMP 1, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, DHCP, IPv4, IPv6
Egenskaber Datatransport, auto-uplink (auto MDI/MDI-X), IGMP snooping, portspejling, gem og send, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), MDL snooping, båndbreddekontrol, Device Link Detection Protocol (DLDP) support, Neighbor Discovery Protocol (NDP), Class of Service (CoS), Strict Priority (SP), Generic VLAN Registration Protocol (GVRP), Storm Control, Bridge protocol data unit (BPDU), Link Aggregation, Authentication, Authorization and Accounting (AAA), Voice VLAN, IP/Mac/Port Binding (IPMB), Zero-touch provisioning (ZTP), Weighted Round Robin (WRR), tilbageløkke-detektion, 4,1 Mbit pakkebuffer, Maximum Likelihood Detection (MLD), DSCP-prioritering
Overensstemmelsesstandarder IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3az
Effekt AC 120/230 V (50/60 Hz)
Dimensioner (B x D x H) 44 cm x 18 cm x 4.4 cm
General
Authentication Method Secure Shell (SSH), RADIUS, PAP, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP), EAP-TLS, EAP-TTLS
Compliant Standards IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3az
Device Type Switch - 16 ports - smart
Enclosure Type Rack-mountable
Encryption Algorithm SSL, SSL 3.0, TLS 1.2
Features Flow control, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, store and forward, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Con
Flash Memory 32 MB
Jumbo Frame Support 9KB
MAC Address Table Size 8K entries
Performance Switching capacity: 36 Gbps | Forwarding rate: 26.78 Mpps
Ports 16 x 10/100/1000 + 2 x SFP
RAM 256 MB
Remote Management Protocol SNMP 1, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, DHCP, IPv4, IPv6
Routing Protocol IGMPv2, IGMP, IGMPv3, MLDv2, MLD
Subtype Gigabit Ethernet
Expansion / Connectivity

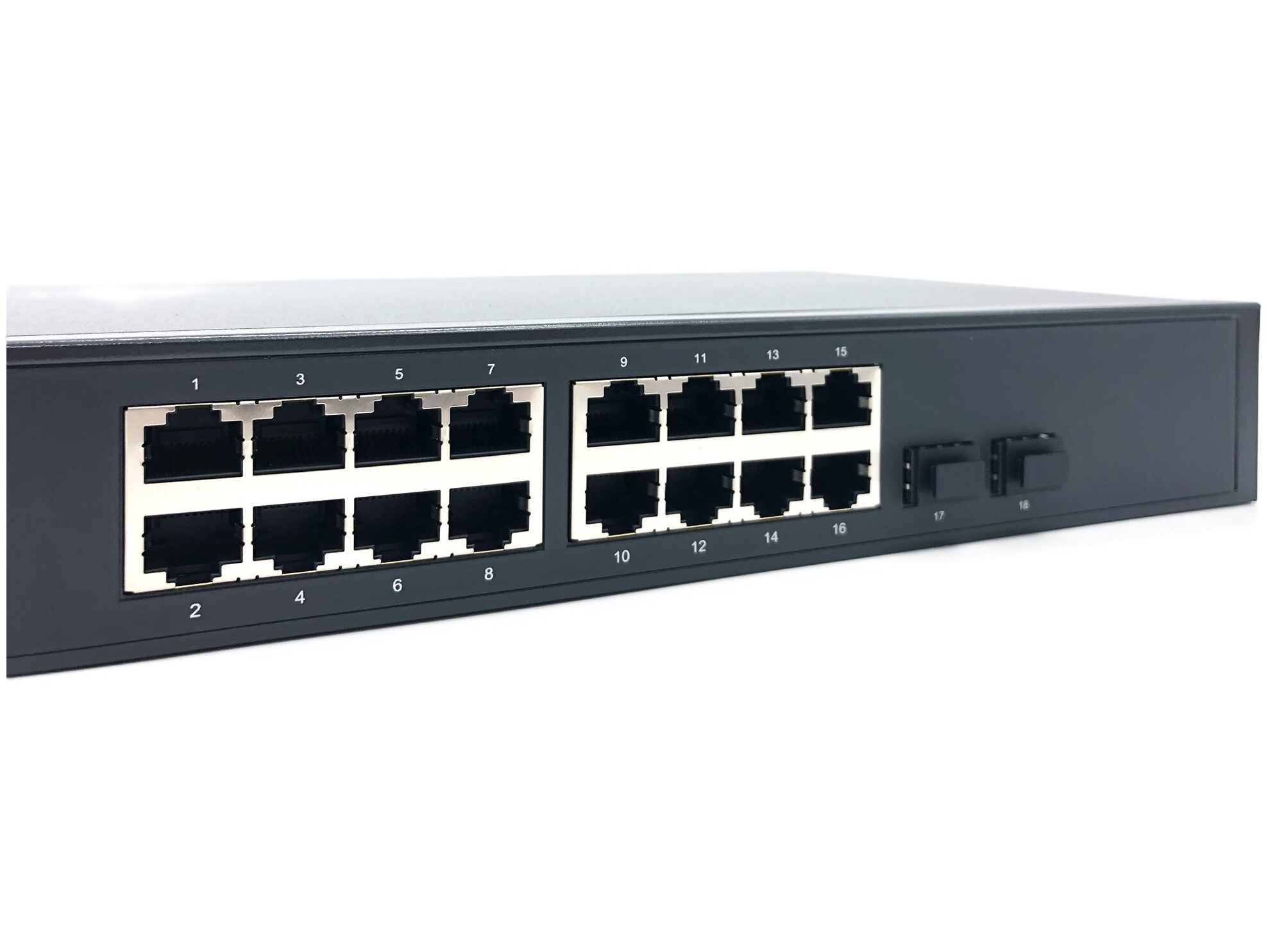

Interfaces 16 x 1000Base-T RJ-45 | 4 x Gigabit LAN SFP
Power
Power Consumption Operational 15.9 Watt
Power Device Internal power supply
Voltage Required AC 120/230 V (50/60 Hz)
Miscellaneous
Compliant Standards FCC, RoHS
Rack Mounting Kit Included
Dimensions & Weight
Depth 18 cm
Height 4.4 cm
Width 44 cm
Environmental Parameters
Humidity Range Operating 10 - 90% (non-condensing)
Humidity Range Storage 5 - 90% (non-condensing)
Max Operating Temperature 50 °C
Max Storage Temperature 70 °C
Min Operating Temperature 0 °C
Min Storage Temperature -40 °C
